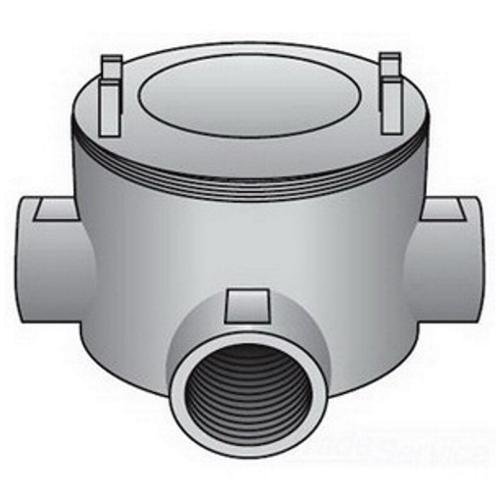

GUAT-75MC - O-Z/Gedney™ GUA Conduit Outlet Boxes - PN GUAT75MC
Description
Specifications
3.4lb
4.1mm
7.1mm
7.2mm
For Wet Locations
O-Z/Gedney
USA
MX
00783126087017
Malleable Iron Externally Threaded Cover, Internal Ground Screw, O-Ring Gasket and (1) Side/(2) Feed Through External Tapered NPT Hubs
BOX OUT CONDUIT 3/4IN 3IN 15CU-IN MI GUA
Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity
Malleable iron bodies have high tensile strength, ductility and provides great resistance to corrosion, impact and shock
Smooth hub bushings protect insulation when pulling conductors
Cast-in brackets on cover for use with breaker-bar tools for tightening/loosening
O-Ring Gasket Provided to Assure NEMA 4 Rating
Used with threaded metal conduit for general purpose wiring
GUA conduit outlet boxes are for use in hazardous locations to provide for change in conduit direction, access to conductors and as pull and splice boxes
They feature internally threaded bodies and cast in brackets on the cover
Emerson Electric
4.1000
IN
7.2000
IN
1
3.4000
LB
7.1000
IN
OZ Gedney
MISCELLANEOUS CONDUIT BODIES
Capacity
cu-in
15
Cover Opening Size
IN
3
Dimensions
3-5/8 in W x 2-1/8 in D x 3-5/8 in H
Finish
Electro-Zinc Plated/Aluminum Enamel Coated
Material
Malleable Iron
Series
GUA
Size
IN
4-Mar
Suitable For Use With
RMC and IMC Conduit
Type
Explosionproof Dust-Ignition Proof Round T-Style
