O-Z/Gedney

O-Z Gedney LB-200CG 2" Malleable LB Conduit Body

Category Miscellaneous Conduit Bodies

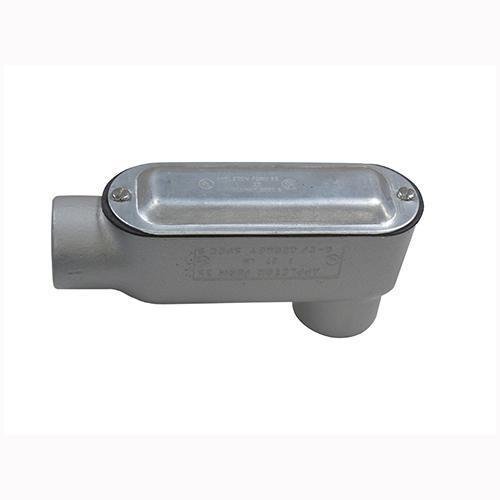

Picture of O-Z Gedney LB-200CG 2" Malleable LB Conduit Body Picture of O-Z Gedney LB-200CG 2" Malleable LB Conduit Body
Picture of O-Z Gedney LB-200CG 2" Malleable LB Conduit Body Picture of O-Z Gedney LB-200CG 2" Malleable LB Conduit Body
O-Z/Gedney

O-Z Gedney LB-200CG 2" Malleable LB Conduit Body

Item Code: 1144561
Category Miscellaneous Conduit Bodies
Manufacturer Ref LB-200CG

Document
Call for Availability
Add to Favorites
Compare

Description

Conduit Body; Access Opening Back; Configuration LB; Cover Type Zinc Electroplated Steel; Hub Location 90 Deg; Number of Hubs 2; Hub Size 2 Inch; Size 10-5/8 Inch L x 3-1/4 Inch W; Installation Threaded; Material Zinc Electroplated Aluminum Enameled Malleable Iron Body, Neoprene Gasket; Approval UL 514A, CSA C22.2; Used On Rigid Conduit/IMC; Applicable Standard Federal Specification A-A-50563, NEMA FB-1/FB-2.10; Capacity 70 Cu Inch; Application Provides Access to Conductors for Pulling/Splicing/Maintenance and Future Changes/Upgrades, Allows Connection of Straight Conduit Runs/Branch Conduit Runs and 90 Deg Bends

Specifications

Weight

6.18lb

Height

3.9mm

Width

5.3mm

Length

12.3mm

AD Alternative Part Number

8701688

AD Application

Rigid/IMC Conduit Applications

AD Brand (Description)

O-Z/Gedney

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

Specification Sheet

AD Gtin

00783126001495

AD IDEA Index ID

8701688

AD Invoice Description

BODY OUT CONDUIT 2IN 73CU-IN MI 2 SURF

AD Item Features 01

Smooth, rounded integral bushing in hubs protects conductor insulation

AD Item Features 02

Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity

AD Item Features 03

Form 35™ malleable iron UNILETS™ are high tensile strength and ductility

AD Item Features 04

High corrosion resistance, high impact and shock resistance

AD Item Features 05

Sizes with flat back design ideal where fitting is mounted flat against surface

AD Item Features 06

Raintight when an Appleton™ cover and gasket are installed

AD Item Features 07

Tapered threaded hubs (NPT)

AD Item Features 08

Raintight when used with gasketed covers

AD Item Features 09

Internal volume and maximum wire capacity clearly marked on castings

AD Item Features 10

Complete interchangeability with other manufacturers style 5 or 35 conduit bodies

AD Item Features 11

Malleable iron suitable for use in concrete

AD Keywords

LB-200CG Type LB Conduit Outlet Body With Cover and Gasket, 2 in Hub, 73 cu-in Capacity, Malleable Iron, Aluminum Enamel/Zinc Electroplated ; Emerson Electric ; OZGedney ; LB200CG ; 783126001495 ; Conduit Bodies - Type LB

AD Manufacturer (Description)

Emerson Electric

AD Package Height

3.9000

AD Package Height UOM

IN

AD Package Length

12.3000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

6.1800

AD Package Weight UOM

LB

AD Package Width

5.3000

AD Package Width UOM

IN

AD Part Number Keywords

LB-200CG ; LB200CG ; 8701688 ; 783126001495 ; 78312600149 ; 00783126001495

Brand

OZ Gedney

Category

MISCELLANEOUS CONDUIT BODIES

Spec 1 Attribute

Capacity

Spec 1 Attribute UOM

cu-in

Spec 1 Attribute Value

73

Spec 10 Attribute

Type

Spec 10 Attribute Value

Type LB

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Tapered FNPT

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

10-5/8 in L x 3-1/4 in W

Spec 4 Attribute

Enclosure

Spec 4 Attribute Value

NEMA FB-1/FB-2.1

Spec 5 Attribute

Finish

Spec 5 Attribute Value

Aluminum Enamel/Zinc Electroplated

Spec 6 Attribute

Hub Size

Spec 6 Attribute UOM

IN

Spec 6 Attribute Value

2

Spec 7 Attribute

Material

Spec 7 Attribute Value

Malleable Iron

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Surface

Spec 9 Attribute

Number of Hubs

Spec 9 Attribute Value

2
