O-Z/Gedney

O-Z Gedney LL-50CG 1/2" Malleable LL Conduit Body

Category Miscellaneous Conduit Bodies

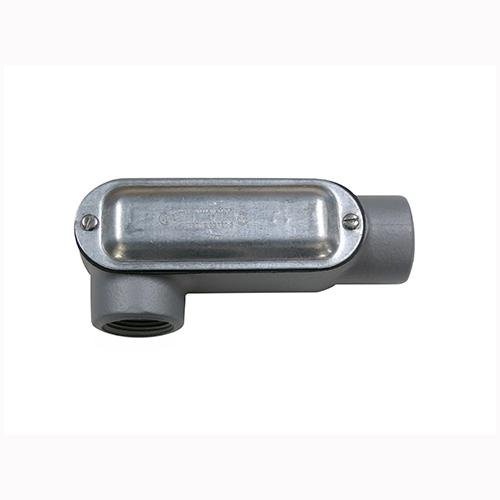

Picture of O-Z Gedney LL-50CG 1/2" Malleable LL Conduit Body
O-Z/Gedney

O-Z Gedney LL-50CG 1/2" Malleable LL Conduit Body

Item Code: 1144574
Category Miscellaneous Conduit Bodies
Manufacturer Ref LL-50CG

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Conduit Body; Access Opening Left Side; Configuration LL; Cover Type Zinc Electroplated Steel; Hub Location 90 Deg; Number of Hubs 2; Hub Size 1/2 Inch; Size 4-5/8 Inch L x 4 Inch H; Installation Threaded; Material Zinc Electroplated Aluminum Enameled Malleable Iron Body, Neoprene Gasket; Approval UL 514A, CSA C22.2; Used On Rigid Conduit/IMC; Applicable Standard Federal Specification A-A-50563, NEMA FB-1/FB-2.10; Capacity 4 Cu Inch; Application Provides Access to Conductors for Pulling/Splicing/Maintenance and Future Changes/Upgrades, Allows Connection of Straight Conduit Runs/Branch Conduit Runs and 90 Deg Bends

Specifications

Weight

0.36lb

Height

0.39mm

Width

5mm

Length

6.7mm

AD Alternative Part Number

8544664

AD Application

Rigid/IMC Conduit Applications

AD Brand (Description)

O-Z/Gedney

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

Catalog

AD Document Caption 2

Warranty Information

AD Document Caption 3

Specification Sheet

AD Gtin

00783126062908

AD IDEA Index ID

8544664

AD Invoice Description

BODY OUT CONDUIT 1/2IN 4.5CU-IN MI 2

AD Item Features 01

Smooth, rounded integral bushing in hubs protects conductor insulation

AD Item Features 02

Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity

AD Item Features 03

Form 35™ malleable iron UNILETS™ are high tensile strength and ductility

AD Item Features 04

High corrosion resistance, high impact and shock resistance

AD Item Features 05

Sizes with flat back design ideal where fitting is mounted flat against surface

AD Item Features 06

Raintight when an Appleton™ cover and gasket are installed

AD Item Features 07

Tapered threaded hubs (NPT)

AD Item Features 08

Raintight when used with gasketed covers

AD Item Features 09

Internal volume and maximum wire capacity clearly marked on castings

AD Item Features 10

Complete interchangeability with other manufacturers style 5 or 35 conduit bodies

AD Item Features 11

Malleable iron suitable for use in concrete

AD Keywords

LL-50CG Type LL Conduit Outlet Body With Cover and Gasket, 1/2 in Hub, 4.5 cu-in Capacity, Malleable Iron, Triple Coated ; Emerson Electric ; OZGedney ; LL50CG ; 783126062908 ; Conduit Bodies - Type LL

AD Manufacturer (Description)

Emerson Electric

AD Package Height

0.3900

AD Package Height UOM

IN

AD Package Length

6.7000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.3600

AD Package Weight UOM

LB

AD Package Width

5.0000

AD Package Width UOM

IN

AD Part Number Keywords

LL-50CG ; LL50CG ; 8544664 ; 783126062908 ; 78312606290 ; 00783126062908

Brand

OZ Gedney

Category

MISCELLANEOUS CONDUIT BODIES

Spec 1 Attribute

Capacity

Spec 1 Attribute UOM

cu-in

Spec 1 Attribute Value

4.5

Spec 10 Attribute

Type

Spec 10 Attribute Value

Type LL

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Tapered FNPT

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

4.63 in L x 2 in W x 2.13 in H

Spec 4 Attribute

Enclosure

Spec 4 Attribute Value

NEMA FB-1/FB-2.1

Spec 5 Attribute

Finish

Spec 5 Attribute Value

Triple Coated

Spec 6 Attribute

Hub Size

Spec 6 Attribute UOM

IN

Spec 6 Attribute Value

2-Jan

Spec 7 Attribute

Material

Spec 7 Attribute Value

Malleable Iron

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Surface

Spec 9 Attribute

Number of Hubs

Spec 9 Attribute Value

2
