O-Z/Gedney

O-Z Gedney T-100CG 1" Malleable T Conduit Body

Category Miscellaneous Conduit Bodies

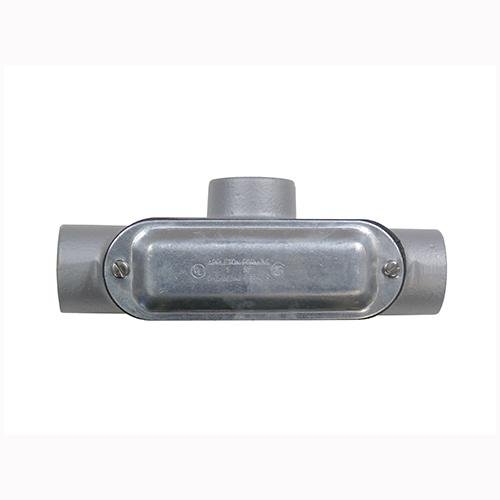

Picture of O-Z Gedney T-100CG 1" Malleable T Conduit Body Picture of O-Z Gedney T-100CG 1" Malleable T Conduit Body
Picture of O-Z Gedney T-100CG 1" Malleable T Conduit Body Picture of O-Z Gedney T-100CG 1" Malleable T Conduit Body
O-Z/Gedney

O-Z Gedney T-100CG 1" Malleable T Conduit Body

Item Code: 1144600
Category Miscellaneous Conduit Bodies
Manufacturer Ref T-100CG

Document
Call for Availability
Add to Favorites
Compare

Description

Conduit Body; Access Opening Side; Configuration T; Cover Type Zinc Electroplated Steel; Hub Location Tee; Number of Hubs 3; Hub Size 1 Inch; Size 7-1/8 Inch L x 2 Inch H; Installation Threaded; Material Zinc Electroplated Aluminum Enameled Malleable Iron Body, Neoprene Gasket; Approval UL 514A, CSA C22.2; Used On Rigid Conduit/IMC; Applicable Standard Federal Specification A-A-50563, NEMA FB-1/FB-2.10; Capacity 12 Cu Inch; Application Provides Access to Conductors for Pulling/Splicing/Maintenance and Future Changes/Upgrades, Allows Connection of Straight Conduit Runs/Branch Conduit Runs and 90 Deg Bends

Specifications

Weight

1.85lb

Height

0.98mm

Width

7.3mm

Length

8.7mm

AD Alternative Part Number

8544804

AD Application

Rigid/IMC Conduit Applications

AD Brand (Description)

O-Z/Gedney

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

Specification Sheet

AD Gtin

00783126064490

AD IDEA Index ID

8544804

AD Invoice Description

BODY OUT CONDUIT 1IN 15CU-IN MI AL ENAM

AD Item Features 01

Smooth, rounded integral bushing in hubs protects conductor insulation

AD Item Features 02

Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity

AD Item Features 03

Form 35™ malleable iron UNILETS™ are high tensile strength and ductility

AD Item Features 04

High corrosion resistance, high impact and shock resistance

AD Item Features 05

Sizes with flat back design ideal where fitting is mounted flat against surface

AD Item Features 06

Raintight when an Appleton™ cover and gasket are installed

AD Item Features 07

Tapered threaded hubs (NPT)

AD Item Features 08

Raintight when used with gasketed covers

AD Item Features 09

Internal volume and maximum wire capacity clearly marked on castings

AD Item Features 10

Complete interchangeability with other manufacturers style 5 or 35 conduit bodies

AD Item Features 11

Malleable iron suitable for use in concrete

AD Keywords

Spec 5 T-100CG Type T Conduit Outlet Body With Cover and Gasket, 1 in Hub, 15 cu-in Capacity, Malleable Iron, Aluminum Enamel ; Emerson Electric ; OZGedney ; T100CG ; 783126064490 ; Conduit Bodies - Type T

AD Manufacturer (Description)

Emerson Electric

AD Package Height

0.9800

AD Package Height UOM

IN

AD Package Length

8.7000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

1.8500

AD Package Weight UOM

LB

AD Package Width

7.3000

AD Package Width UOM

IN

AD Part Number Keywords

T-100CG ; T100CG ; 8544804 ; 783126064490 ; 78312606449 ; 00783126064490

Brand

OZ Gedney

Category

MISCELLANEOUS CONDUIT BODIES

Spec 1 Attribute

Capacity

Spec 1 Attribute UOM

cu-in

Spec 1 Attribute Value

15

Spec 10 Attribute

Type

Spec 10 Attribute Value

Type T

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Tapered FNPT

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

7-1/8 in L x 2 in H

Spec 4 Attribute

Enclosure

Spec 4 Attribute Value

NEMA FB-1/FB-2.1

Spec 5 Attribute

Finish

Spec 5 Attribute Value

Aluminum Enamel

Spec 6 Attribute

Hub Size

Spec 6 Attribute UOM

IN

Spec 6 Attribute Value

1

Spec 7 Attribute

Material

Spec 7 Attribute Value

Malleable Iron

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Surface

Spec 9 Attribute

Number of Hubs

Spec 9 Attribute Value

3
