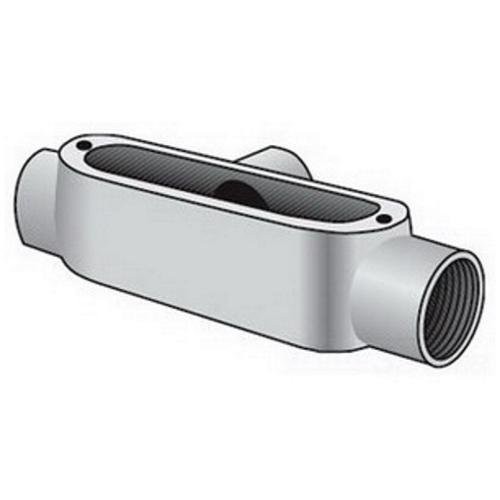

T-50 - 1/2 IN IRON COND BODY TYPE T
Description
Specifications
0.92lb
0.36mm
8.1mm
11.2mm
8565066
Rigid/IMC Conduit Applications
O-Z/Gedney
USA
MX
Specification Sheet
00783126517002
8565066
BODY OUT CONDUIT 1/2IN 3 4CU-IN SURF MI
Smooth, rounded integral bushing in hubs protects conductor insulation
Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
Form 35™ malleable iron UNILETS™ are high tensile strength and ductility
High corrosion resistance, high impact and shock resistance
Sizes with flat back design ideal where fitting is mounted flat against surface
Raintight when an Appleton™ cover and gasket are installed
Tapered threaded hubs (NPT)
Raintight when used with gasketed covers
Internal volume and maximum wire capacity clearly marked on castings
Complete interchangeability with other manufacturers style 5 or 35 conduit bodies
Malleable iron suitable for use in concrete
Spec 5 T-50 Type T Conduit Outlet Body, 1/2 in Hub, 4 cu-in, Malleable Iron, Aluminum Enamel/Zinc Electroplated ; Emerson Electric ; OZGedney ; T50 ; 783126517002 ; Conduit Bodies - Type T
Emerson Electric
0.3600
IN
11.2000
IN
1
0.9200
LB
8.1000
IN
T-50 ; T50 ; 8565066 ; 783126517002 ; 78312651700 ; 00783126517002
OZ Gedney
MISCELLANEOUS CONDUIT BODIES
Capacity
cu-in
4
Type
Type T
Connection Type
Tapered FNPT
Dimensions
5-3/8 in L x 1-3/8 in H
Enclosure
NEMA FB-1
Finish
Aluminum Enamel/Zinc Electroplated
Hub Size
IN
2-Jan
Material
Malleable Iron
Mounting Type
Surface
Number of Hubs
3
