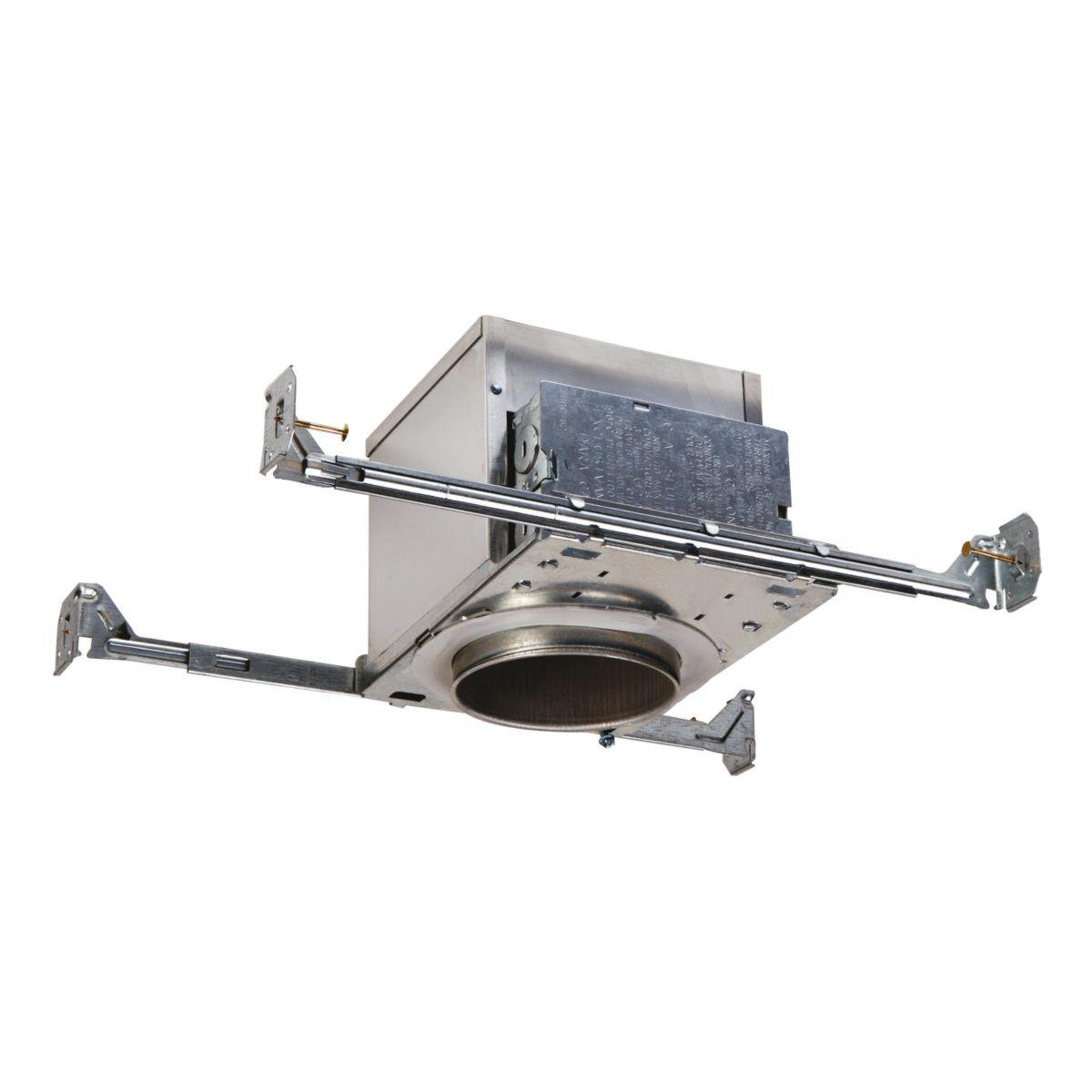

E4ICATSB - 4" IC, Air-Tite, New Construction Housing, 120V w/ Socket Bracket
Description
Specifications
2.77lb
6mm
11.5mm
14mm
https://spin.adhq.com/Cooper%20Lighting%20Solutions/E4ICATSB/E4ICATSB.spin
13834063
For lighting applications
Halo
USA
MX
Warranty Information
Catalog
Specification Sheet
00080083751525
13834063
All Nail!™ Bar Hanger, Junction Box, (7) 1/2 in Conduit Knock-Outs, (7) 1/2 in Conduit Pry-Outs, (3) Slide-N-Side™ Non-Metallic (NM) Wire Traps, (3) 4-Port Push Wire Nuts, (3) Quick Connect™ Push Wire Nut and Cap
HOUSING LTG RECESSED INSULATED 120VAC E4
Hinged junction box with Slide-N-Side
Socket bracket adjusts lamp to various trim styles and designs
Plaster frame includes locking screw for hanger bars and cutouts for crimping hanger bars in position
Air-Tite™ gasket is pre-installed
Positioned to accommodate straight conduit runs
Adjustable position bracket with porcelain socket and nickel plated brass screw shell provides flexibility in lamp positioning
Thermal protector - self resetting thermal protector deactivates fixture if overheating occurs due to improper lamping or misapplied insulation
Halo fit-all concept offers multiple trim options in a variety of design styles and functional beam distributions to control beam angle and lumen delivery in accommodating various lamp types
Double wall aluminum construction helps dissipate heat
The inner housing can be removed from the plaster frame to provide access to the junction box
For insulated ceilings indirect contact with insulation (may also be installed in non-insulated ceilings)
All-Nail™ bar hangers with preinstalled nail and integral T-grid clip
Q-channel interlocking hanger bars
Hanger bars feature Pass-N-Thru™ tool-less shortening
Quick Connect™ push-in wire nuts included
E4ICATSB E4 Series New Construction Recessed Lighting Housing, CFL/gen/Incandescent/LED Lamp, Insulated Insulation, 120 V AC, 4-1/2 in Ceiling Opening, Die Cast Aluminum Housing ; Halo ; E4ICATSB ; 13834063 ; 080083751525 ; Recessed Lighting Housings
Cooper Lighting Solutions
6.0000
IN
14.0000
IN
1
2.7700
LB
11.5000
IN
E4ICATSB ; 13834063 ; 14578682 ; 080083751525 ; 80083751525 ; 08008375152 ; 00080083751525
Cooper Lighting Solutions
Lighting Accessories
Ceiling Opening
IN
4/1/2002
Series
E4 Series
Suitable For Use With
Halo LED Lighting Systems
Type
New Construction
Voltage Rating
V AC
120
Width
IN
8
Depth
IN
5/1/2004
Diameter
IN
4
Height
IN
5/1/2002
Housing Material
Die Cast Aluminum
Insulation Type
Insulated
Lamp Type
Incandescent
Lamp Wattage
W
90
Mounting Type
Ceiling
