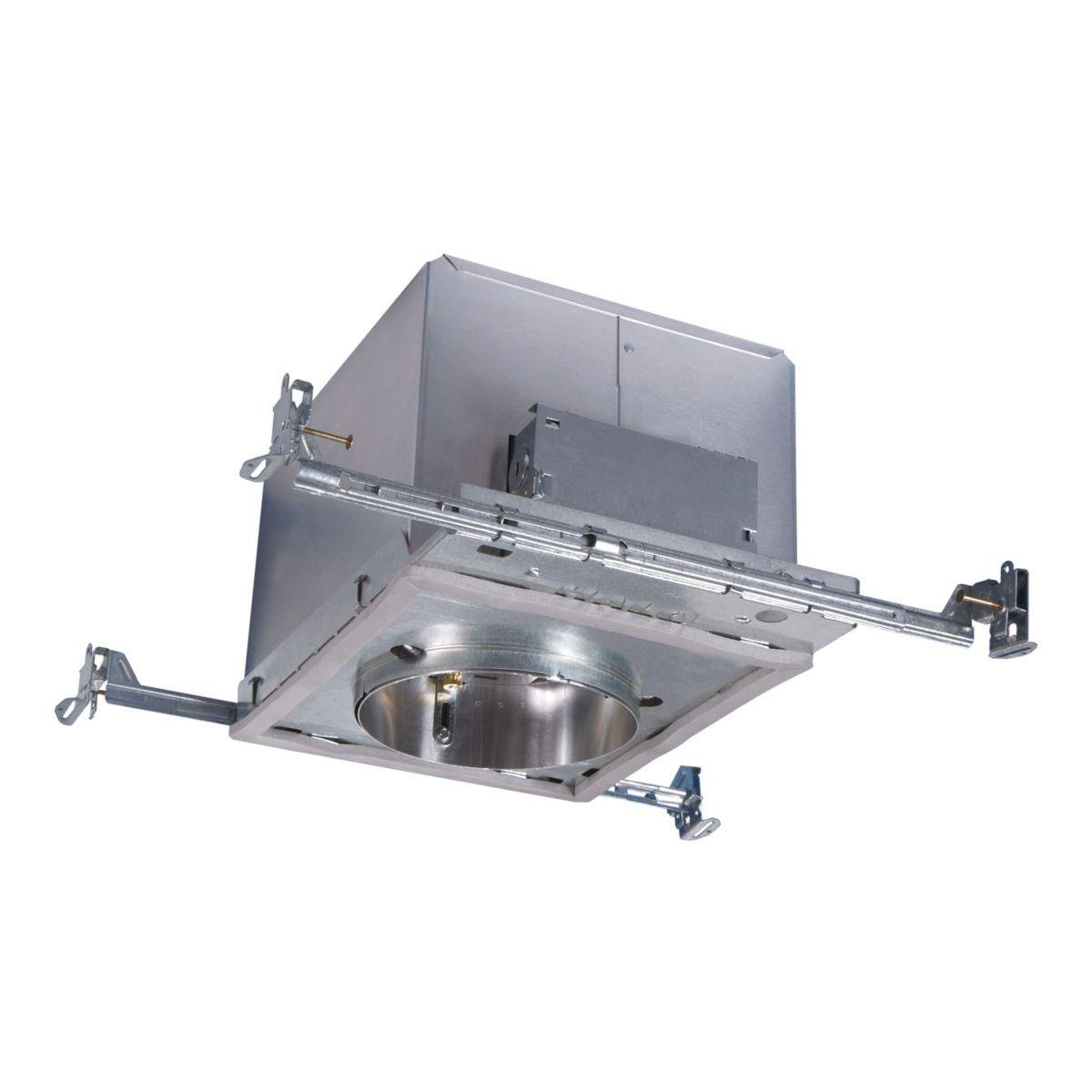

H645IC - 6" Housing All-Slope Ceiling IC Air-Tite 120V Line Voltage
Description
Specifications
4.45lb
7.7mm
16.5mm
15mm
Wet Locations and Lighting Applications
Halo
USA
MX
HOUSING SLOPED RECESSED IC 120VAC AL
Pass-N-Thru™ toolless shortening of bar hangers
Slide-N-Side™ wire traps
QuickConnect™ wiring connectors included in junction box
Thermally Protected
Die formed housing and plaster frame
Socket aiming for ceilings from 2/12 to 12/12 pitch
Slope indicator provides quick and consistent lamp settings
AIR-TITE® sealed and gasketed to limit airflow between plenum and heated or air conditioned areas
Pre-wired with (7) 1/2 in knockout junction box
Round aperture matches other recessed downlights and provides a clean finished look
Exclusive socket aiming mechanism swivels and rotates to properly align lamp
Designed for sloped ceiling installations for ceilings
AIR-TITE® housing designed to prevent airflow between living spaces and unconditioned areas
Insulated/slope ceiling
Round Shape
75 W power rating
Die formed aluminum housing
Got-Nail™ bar hangers
Porcelain socket
Cooper Lighting Solutions
7.7000
IN
15.0000
IN
1
4.4500
LB
16.5000
IN
Cooper Lighting Solutions
INCANDESCENT RECESSED ARCHITECTURAL & SPECIFICATION LIGHTING
Ceiling Opening
IN
6/1/2002
Suitable For Use With
Halo Recessed Downlight Fixture
Type
Line Voltage
Voltage Rating
V AC
120
Width
IN
14-3/4
Depth
IN
7/3/2008
Diameter
IN
6
Height
IN
8
Housing Material
Aluminum
Insulation Type
IC
Lamp Type
Incandescent
Mounting Type
Ceiling
Number of Lamps
1
