Halo

H99TAT - 4" Housing Non-IC, Air-Tite Shallow Ceiling 120V Incandescent

Category Halogen & Quartz Recessed Architectural & Specification Lighting

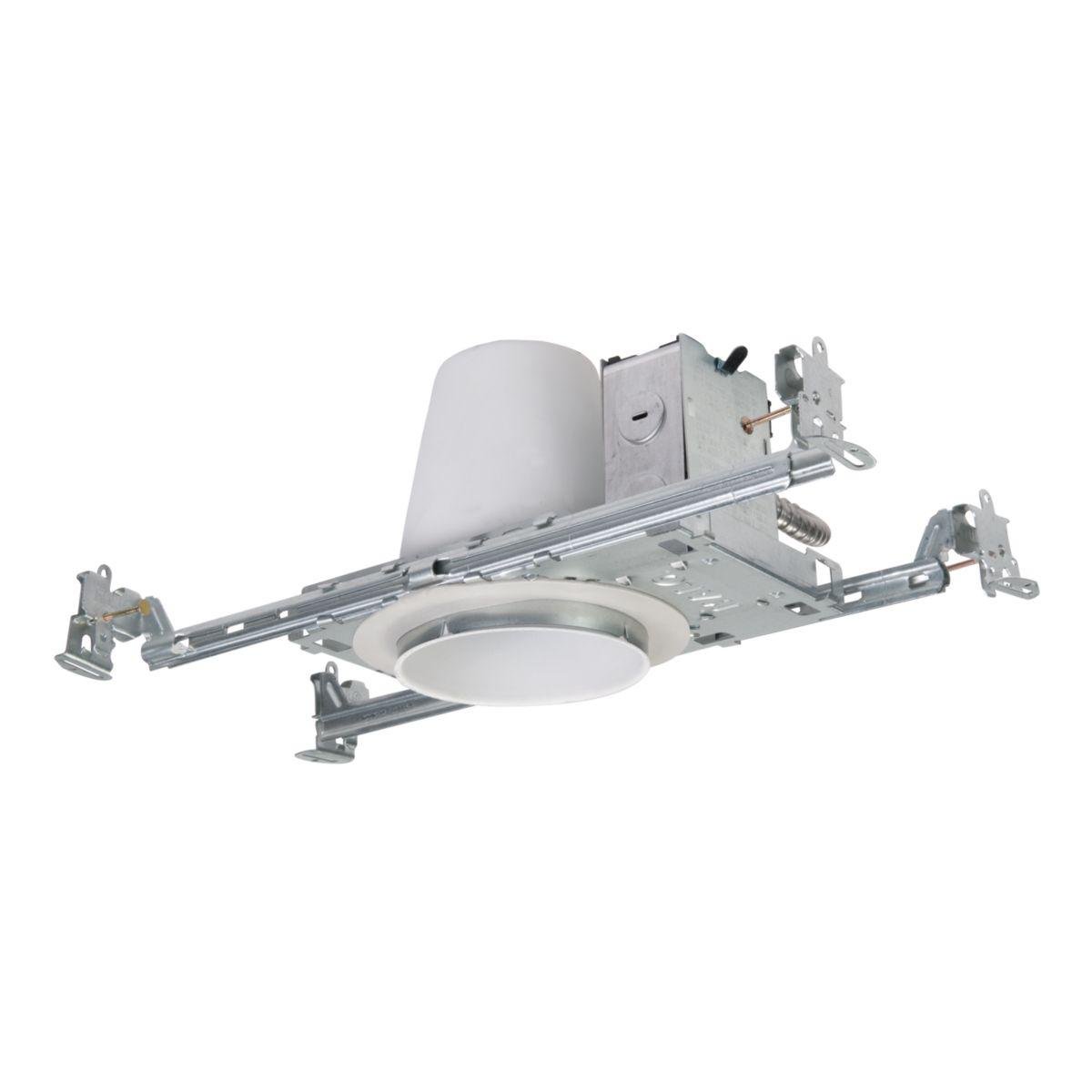

Picture of H99TAT - 4" Housing Non-IC, Air-Tite Shallow Ceiling 120V Incandescent Picture of H99TAT - 4" Housing Non-IC, Air-Tite Shallow Ceiling 120V Incandescent
Picture of H99TAT - 4" Housing Non-IC, Air-Tite Shallow Ceiling 120V Incandescent Picture of H99TAT - 4" Housing Non-IC, Air-Tite Shallow Ceiling 120V Incandescent
Halo

H99TAT - 4" Housing Non-IC, Air-Tite Shallow Ceiling 120V Incandescent

Item Code: 733411
Category Halogen & Quartz Recessed Architectural & Specification Lighting
Manufacturer Ref H99TAT

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

The H99TAT is a small aperture Non-IC AIR-TITE™ housing for providing accent and task lighting. The H99TAT is designed for use in non-insulated ceiling or for insulated ceilings but insulation MUST be kept 3” from all sides of the housing. Non-IC Housing is AIR-TITE™ but insulation must be kept 3 inches away from all sides of housing.

Specifications

Weight

2.05lb

Height

5.63mm

Width

8.25mm

Length

14.38mm

AD Application

For lighting applications

AD Brand (Description)

Halo

AD Country

USA

AD Country Of Origin

MX

AD Includes

(1) Slide-N-Side™ Junction Box and (3) Quick Connect™ Connectors

AD Invoice Description

HOUSING LTG RECESSED INCAND NON-IC STL

AD Item Features 01

Got-Nail™ bar hangers

AD Item Features 02

Pass-N-Thru™ toolless shortening of bar hangers

AD Item Features 03

Slide-N-Side™ wire traps

AD Item Features 04

QuickConnect™ wiring connectors included in junction box

AD Item Features 05

Thermally Protected

AD Item Features 06

Die formed housing and plaster frame

AD Item Features 07

Housing may be removed from plaster frame for junction box access

AD Manufacturer (Description)

Cooper Lighting Solutions

AD Package Height

5.6300

AD Package Height UOM

IN

AD Package Length

14.3800

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

2.0500

AD Package Weight UOM

LB

AD Package Width

8.2500

AD Package Width UOM

IN

AD Video Links

https://youtu.be/8VTVA15A5_Y

Brand

Cooper Lighting Solutions

Category

HALOGEN & QUARTZ RECESSED ARCHITECTURAL & SPECIFICATION LIGHTING

Spec 1 Attribute

Ceiling Opening

Spec 1 Attribute UOM

IN

Spec 1 Attribute Value

4/3/2008

Spec 10 Attribute

Suitable For Use With

Spec 10 Attribute Value

Halo Recessed Downlight Fixture

Spec 11 Attribute

Type

Spec 11 Attribute Value

New Construction Shallow

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

120

Spec 13 Attribute

Width

Spec 13 Attribute UOM

IN

Spec 13 Attribute Value

9.45

Spec 2 Attribute

Color

Spec 2 Attribute Value

White

Spec 3 Attribute

Depth

Spec 3 Attribute UOM

IN

Spec 3 Attribute Value

5/1/2004

Spec 4 Attribute

Diameter

Spec 4 Attribute UOM

IN

Spec 4 Attribute Value

4

Spec 5 Attribute

Height

Spec 5 Attribute UOM

IN

Spec 5 Attribute Value

5.55

Spec 6 Attribute

Housing Material

Spec 6 Attribute Value

Steel

Spec 7 Attribute

Insulation Type

Spec 7 Attribute Value

Non-IC

Spec 8 Attribute

Lamp Type

Spec 8 Attribute Value

Incandescent

Spec 9 Attribute

Mounting Type

Spec 9 Attribute Value

Ceiling
