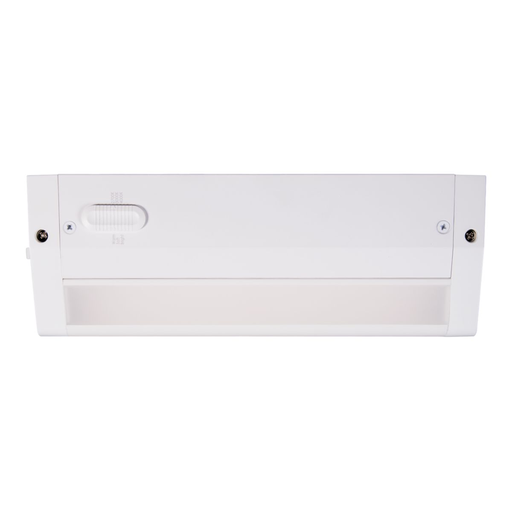

HU1118D9SP - HU11 Series 18 in. Selectable White LED Integrated Under Cabinet Light
Description
Specifications
1.25lb
1.3mm
4mm
17.75mm
https://spin.adhq.com/Cooper%20Lighting%20Solutions/HU1118D9SP/HU1118D9SP.spin
16078340
For task, accent, office, cove and utility, under and above cabinet lighting display
Halo
USA
CN
Catalog
Specification Sheet
Instruction/Installation Manual
00080083875863
16078340
Conduit Connector and Romex Strain Relief Hardware
LIGHTING CABINET UND LED 8W 120VAC WHT
Dimmable down to 5% with select 120 V dimmers
Each unit is secured directly to the mounting surface with two integral fasteners keeping installation costs and efforts low
Can be mounted in horizontal and vertical orientation
Various connector cable options and lengths provide flexibility of mounting location
Electronic driver provides flicker free light output and noise-free operation
Designed for continuous dimming (ELV or TRIAC) down to 5% with compatible dimmers
Conduit connector and romex strain relief hardware is included with each fixture
Multiple wiring options including flexible conduit, romex or plugin
Specialized optical system consisting of tightly clustered proximity phosphor LEDs, advanced optical chamber coatings and lens materials resulting in soft illumination with high efficiency
Use any combination of three different wiring methods - bring flexible conduit or romex directly to the 120 V fixture
Extruded aluminum housing and color matched end caps with a sleek over all height less than 1 in
Three position external selectable color temperature switch allows users to choose between 2700K, 3000K and 4000K and adjust per their lighting needs
HU1118D9SP HU11 Integrated Under Cabinet Lighting, 8 W Fixture, 120 V AC, White Housing ; Halo ; HU1118D9SP ; 16078340 ; 080083875863 ; Under Cabinet Lighting
Cooper Lighting Solutions
1.3000
IN
17.7500
IN
1
1.2500
LB
4.0000
IN
HU1118D9SP ; 16078340 ; 15971290 ; 080083875863 ; 80083875863 ; 08008387586 ; 00080083875863
Cooper Lighting Solutions
LED UNDERCABINET LIGHTING
Amperage Rating
A
0.067
Lens Type
Clustered Proximity Phosphor
Light Output
Lumens/W
60
Lumens
Lumens
560
Mounting Type
Surface
Series
HU11
Type
Integrated
Voltage Rating
V AC
120
Ballast Type
5% ELV/TRIAC Continuous Dimming/Electronic
Color Rendering Index (CRI)
90
Color Temperature
K
2700/3000/4000
Dimensions
16.55 in L
Fixture Wattage
W
8
Housing Finish
White
Housing Material
Aluminum
Lamp Wattage
W
8
