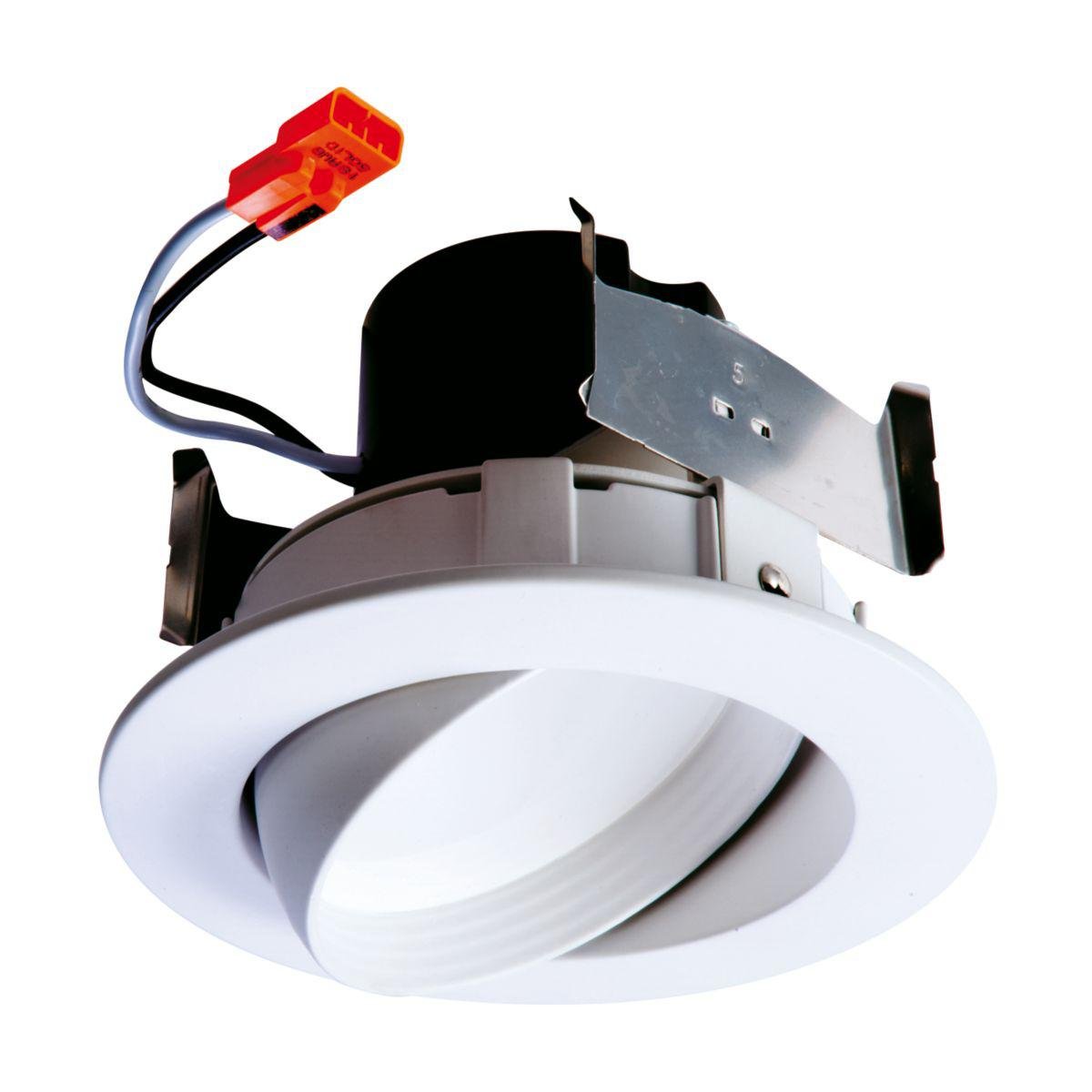

RA406930NFLWH - Ra406930Nflwh 4" Adjustable Ginbal 30K White Narrow Flood
Description
Specifications
1.05lb
5.88mm
5.88mm
3.5mm
12317278
For accent, task, grazing and downlighting applications
Halo
USA
MX
Warranty Information
Catalog
Specification Sheet
Instruction/Installation Manual
00080083693283
12317278
MODULE RETROFIT LED 4IN 120VAC 0.083A
Adjustable gimbal offers 35 deg tilt and up to 360 deg rotation
-22 deg F minimum starting temperature
>0.9 power factor
50/60 Hz frequency rating
<20% THD
Dimmable down to 10% with many common dimmers
Lightweight design can be installed in most 6 in downlight housings
More useable, concentrated white light and uniform appearance
No hot spots, glare or color shift
Halo matte white trim finish
Compatible with most 5 in and 6 in standard and shallow recessed housings
Flexible mounting with friction blades
Rated for IC, ICAT and may be used in non-IC housings
Durable die cast construction
Field replaceable driver
64 Lumens/W efficacy
RA406930NFLWH RA4 Adjustable Gimbal Narrow Very Wide Flood Retrofit Module, 10 W Fixture, 4 in Ceiling Opening, 120 V AC, Die Cast Aluminum Housing ; Halo ; RA406930NFLWH ; 12317278 ; 080083693283 ; Retrofit LED Modules
Cooper Lighting Solutions
5.8800
IN
3.5000
IN
1
1.0500
LB
5.8800
IN
RA406930NFLWH ; 12317278 ; 13696336 ; 080083693283 ; 80083693283 ; 08008369328 ; 00080083693283
Cooper Lighting Solutions
LED RECESSED ARCHITECTURAL & SPECIFICATION LIGHTING
Amperage Rating
A
0.083
Lamp Base Type
Edison
Lamp Wattage
W
10
Lens Type
Acrylic
Light Color
White
Lumens
Lumens
640
Mounting Type
Ceiling
Number of Lamps
1
Recessed Trim Type
RA4
Series
RA4
Type
Adjustable Gimbal Narrow Very Wide Flood
Average Life
HR
50000
V AC
120
Ballast Type
LED Driver
Ceiling Opening
IN
4
Color Rendering Index (CRI)
90
Color Temperature
K
3000
Dimensions
6-1/2 in L x 6-1/4 in W x 6-3/4 in H
Fixture Wattage
W
10
Housing Material
Die Cast Aluminum
