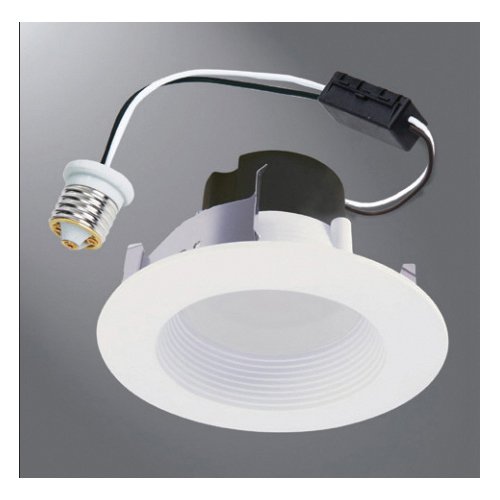

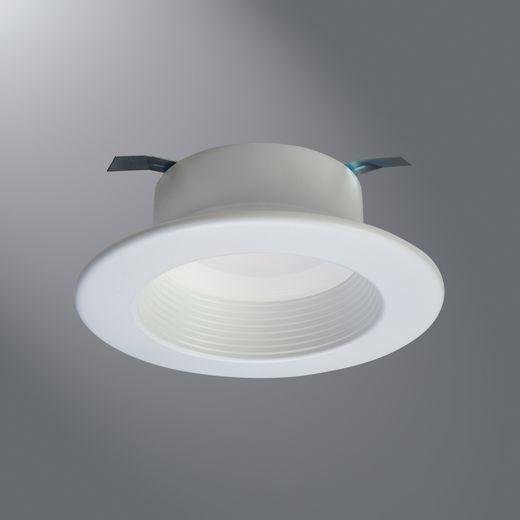

RL460WH930PK - COLTG RL460WH930PK 4" RETROFIT BAFFLE TRIM LED MODULE, WHITE 90CRI
Description
Specifications
0.5lb
5.5mm
3.25mm
5.94mm
12261136
For lighting applications
Halo
USA
CN
Warranty Information
Catalog
Specification Sheet
Instruction/Installation Manual
00080083690770
12261136
E26 Edison Screw Base Retrofit Adapter
MODULE LED RETROFIT LED 4IN 120VAC 8W
Adjustable gimbal offers 35 deg tilt and up to 360 deg rotation
Retrofits existing 5 in or 6 in housings with screw base adapter included
Dimmable to 10%
Torsion spring adjust for housing size, hold trim securely to ceiling
Lens of impact resistant polycarbonate
Mounting push-N-twist universal installation clips
LED chromaticity- tight chromaticity specification ensures LED color uniformity, sustainable color rendering Index (CRI) and correlated color temperature (CCT) over the useful life of the LED
Power connections- LED connector is a non-screw base luminaire disconnect offering easy installation with Halo H995 series LED housings
Grounding cable included on the RL4 module for attachment to the housing during installation
LED driver with the latest driver-on-board electronic technology, the driver is integrated in the module
AIR-TITE RL460WH930PK All Purpose Dimmable Retrofit Module, 4 in Ceiling Opening, 120 V AC, Aluminum/Polycarbonate Housing ; Cooper Lighting Solutions ; Halo ; RL460WH930PK ; 080083690770 ; Retrofit LED Modules
Cooper Lighting Solutions
5.5000
IN
5.9400
IN
1
0.5000
LB
3.2500
IN
RL460WH930PK ; 12261136 ; 080083690770 ; 80083690770 ; 08008369077 ; 00080083690770
http://players.brightcove.net/1302165871001/default_default/index.html?videoId=3872839063001
Cooper Lighting Solutions
LED RECESSED ARCHITECTURAL & SPECIFICATION LIGHTING
Amperage Rating
A
0.075 to 0.0875
Housing Material
Aluminum/Polycarbonate
Lamp Base Type
E26 Medium
Lamp Wattage
W
8
Lens Type
Polycarbonate
Light Color
White
Light Output
Lumens/W
71.25
Lumens
Lumens
570
Mounting Type
Ceiling/Flush
Number of Lamps
1
Recessed Trim Type
RL4 Retrofit Baffle
Average Life
HR
50000
RL4
Type
All Purpose Dimmable
Voltage Rating
V AC
120
Ballast Type
Dimmable
Ceiling Opening
IN
4
Color Rendering Index (CRI)
90
Color Temperature
K
3000
Dimensions
6-1/4 in L x 6-3/8 in W x 2-3/4 in H
Enclosure Type
IP65
Fixture Wattage
W
8
