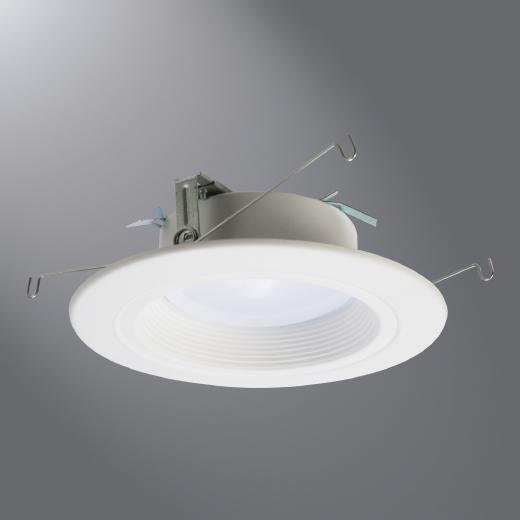

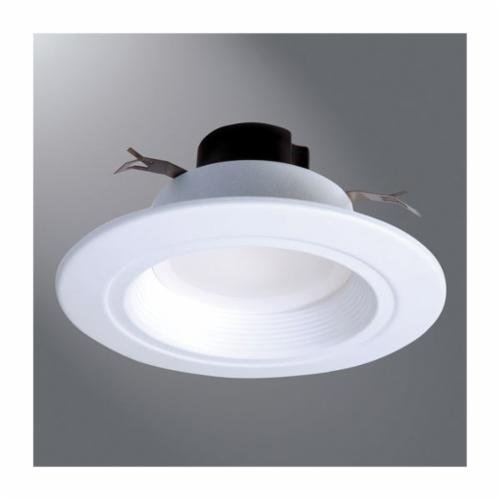

RL560WH6930 - Rl560Wh6930 5"/6" LED Retrofit Baffle Trim 120V

Picture of RL560WH6930 - Rl560Wh6930 5"/6" LED Retrofit Baffle Trim 120V Picture of RL560WH6930 - Rl560Wh6930 5"/6" LED Retrofit Baffle Trim 120V
Picture of RL560WH6930 - Rl560Wh6930 5"/6" LED Retrofit Baffle Trim 120V Picture of RL560WH6930 - Rl560Wh6930 5"/6" LED Retrofit Baffle Trim 120V
Picture of RL560WH6930 - Rl560Wh6930 5"/6" LED Retrofit Baffle Trim 120V Picture of RL560WH6930 - Rl560Wh6930 5"/6" LED Retrofit Baffle Trim 120V
Picture of RL560WH6930 - Rl560Wh6930 5"/6" LED Retrofit Baffle Trim 120V Picture of RL560WH6930 - Rl560Wh6930 5"/6" LED Retrofit Baffle Trim 120V

RL560WH6930 - Rl560Wh6930 5"/6" LED Retrofit Baffle Trim 120V

Item Code: 926372
Manufacturer Ref RL560WH6930
Call for Availability
Compare

Description

The Halo RL56 Series is a complete LED baffle trim module for 5 and 6 in aperture recessed downlights. RL56 is designed for use in new construction, remodel and retrofit installation in Halo, ALL-PRO™ and other Compatible 5 and 6 in housings. The integral LED driver offers 120 VAC dimming capability. The RL56 lens provides uniform illumination and wet location listing. Precision designed to make any housing AIR-TITE® for added HVAC savings and code compliance. Compliant with NFPA 70, NEC section 410.16 (A) (3) and 410.16 (C)(5).

Specifications

Weight

1.04lb

Height

9.63mm

Width

8.75mm

Length

18mm

Amperage Rating

0.15 A

Average Life

50000 HR

Ballast Type

Dimmable

Brand

Cooper Lighting Solutions

Category

LED RECESSED ARCHITECTURAL & SPECIFICATION LIGHTING

Ceiling Opening

6-May in

Color Rendering Index (CRI)

90

Color Temperature

3000 K

Dimensions

2.938 in L x 7.5 in W x 8.25 in H

Enclosure Type

IP56

Fixture Wattage

8.8 W

Housing Material

Aluminum/Polycarbonate

Lamp Base Type

E26 Medium

Lamp Wattage

8 W

Lens Type

Polycarbonate

Light Color

White

Light Output

73 Lumens/W

Lumens

610 Lumens

Mounting Type

Recessed/Flush

Number of Lamps

1

Recessed Trim Type

RL56 Retrofit Baffle

Series

RL56

Type

Dimmable

Voltage Rating

120 V AC
