AFC Cable Systems

1504G42-00 - 12-2 BK WE GN HCF-90®, Green Interlocked Galvanized Steel Armor with phase ID, 250' Coil, Type AC - Health Care Facilities

Category CU Interlocked Steel Armor Cables - Teck

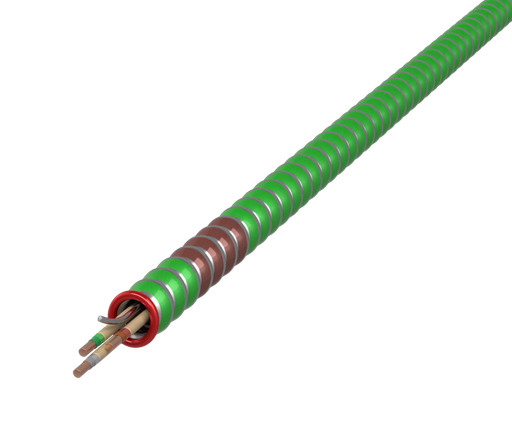

Picture of 1504G42-00 - 12-2 BK WE GN HCF-90®, Green Interlocked Galvanized Steel Armor with phase ID, 250' Coil, Type AC - Health Care Facilities Picture of 1504G42-00 - 12-2 BK WE GN HCF-90®, Green Interlocked Galvanized Steel Armor with phase ID, 250' Coil, Type AC - Health Care Facilities
Picture of 1504G42-00 - 12-2 BK WE GN HCF-90®, Green Interlocked Galvanized Steel Armor with phase ID, 250' Coil, Type AC - Health Care Facilities Picture of 1504G42-00 - 12-2 BK WE GN HCF-90®, Green Interlocked Galvanized Steel Armor with phase ID, 250' Coil, Type AC - Health Care Facilities
Picture of 1504G42-00 - 12-2 BK WE GN HCF-90®, Green Interlocked Galvanized Steel Armor with phase ID, 250' Coil, Type AC - Health Care Facilities Picture of 1504G42-00 - 12-2 BK WE GN HCF-90®, Green Interlocked Galvanized Steel Armor with phase ID, 250' Coil, Type AC - Health Care Facilities
Picture of 1504G42-00 - 12-2 BK WE GN HCF-90®, Green Interlocked Galvanized Steel Armor with phase ID, 250' Coil, Type AC - Health Care Facilities Picture of 1504G42-00 - 12-2 BK WE GN HCF-90®, Green Interlocked Galvanized Steel Armor with phase ID, 250' Coil, Type AC - Health Care Facilities
AFC Cable Systems

1504G42-00 - 12-2 BK WE GN HCF-90®, Green Interlocked Galvanized Steel Armor with phase ID, 250' Coil, Type AC - Health Care Facilities

Item Code: 589970
Category CU Interlocked Steel Armor Cables - Teck
Manufacturer Ref HCF122
Minimum order quantity 250

Document
Document
Call for Availability
Add to Favorites
Compare

Description

HCF-90®, which features interlocked steel armor, is a derivative of Type AC Cable. It was introduced in the 1980s to support NEC Article 517 on Healthcare Facilities in "areas of patient care". This branch circuit cable is offered in 12 or 10 AWG THHN in 2, 3, or 4 conductors and was one of the original ColorSpec® ID cables. The green interlocked armor became the recognized standard for healthcare facilities' cables, where redundant grounding is required. These 600V cables with THHN conductors have two paths to ground, which is a requirement of NEC 517. The outer metal jacket, in combination with a 16AWG, serves as one equipment grounding means, while the second is an additional full-size green copper ground.

Specifications

Weight

58.7lb

Height

0.54mm

Width

0.54mm

Length

3000mm

AD Alternative Part Number

7626334

AD Brand (Description)

AFC CABLE SYSTEMS

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

Catalog

AD Document Caption 2

Specification Sheet

AD Gtin

00077680150899

AD IDEA Index ID

7626334

AD Invoice Description

CABLE FACILITIES HEALTHCARE 600VAC 2 GRN

AD Item Features 01

Technically equivalent and economically superior to traditional raceway and wire installations

AD Item Features 02

ColorSpec ID/Color-Trak ID System

AD Item Features 03

Green galvanized steel armor with phase ID painted directly onto the armor for added identification without the added step of opening up the panel to determine circuit type

AD Item Features 04

Full-size green insulated copper grounding conductor plus armor/bond wire combination provides redundant ground or isolated grounding capability

AD Keywords

HCF-90 1504G42-00 Type AC Healthcare Facilities Cable With Grounding and Neutral Conductor, Coil Packaging, 600 V AC, (2) 12 AWG Solid Copper Conductor, 250 ft L ; Atkore ; AFC Cable Systems ; 1504G4200 ; 077680150899 ; Steel Armor Copper Conductors

AD Manufacturer (Description)

Atkore

AD Package Height

0.5400

AD Package Height UOM

IN

AD Package Length

3000.0000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

58.7000

AD Package Weight UOM

LB

AD Package Width

0.5400

AD Package Width UOM

IN

AD Part Number Keywords

1504G42-00 ; 1504G4200 ; 7626334 ; 077680150899 ; 77680150899 ; 07768015089 ; 00077680150899

Brand

General Wire

Category

CU Interlocked Steel Armor Cables - Teck

Spec 1 Attribute

Conductor Size

Spec 1 Attribute UOM

AWG

Spec 1 Attribute Value

12

Spec 10 Attribute

Temperature Rating

Spec 10 Attribute UOM

deg C

Spec 10 Attribute Value

90

Spec 11 Attribute

Type

Spec 11 Attribute Value

Type AC

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

600

Spec 2 Attribute

Conductor Type

Spec 2 Attribute Value

Solid Copper

Spec 3 Attribute

Insulation Material

Spec 3 Attribute Value

THHN

Spec 4 Attribute

Jacket Color

Spec 4 Attribute Value

Green

Spec 5 Attribute

Jacket Material

Spec 5 Attribute Value

Interlocked Galvanized Steel Strip

Spec 6 Attribute

Length

Spec 6 Attribute UOM

Ft

Spec 6 Attribute Value

250

Spec 7 Attribute

Number of Conductors

Spec 7 Attribute Value

2

Spec 8 Attribute

Outside Diameter

Spec 8 Attribute UOM

IN

Spec 8 Attribute Value

0.489

Spec 9 Attribute

Packaging Type

Spec 9 Attribute Value

Coil
