AFC Cable Systems

2804G60-01 - AFC 2804G60-01 12-2 HCF LITE 1000'

Category CU Interlocked Alum Armor Cables - Teck

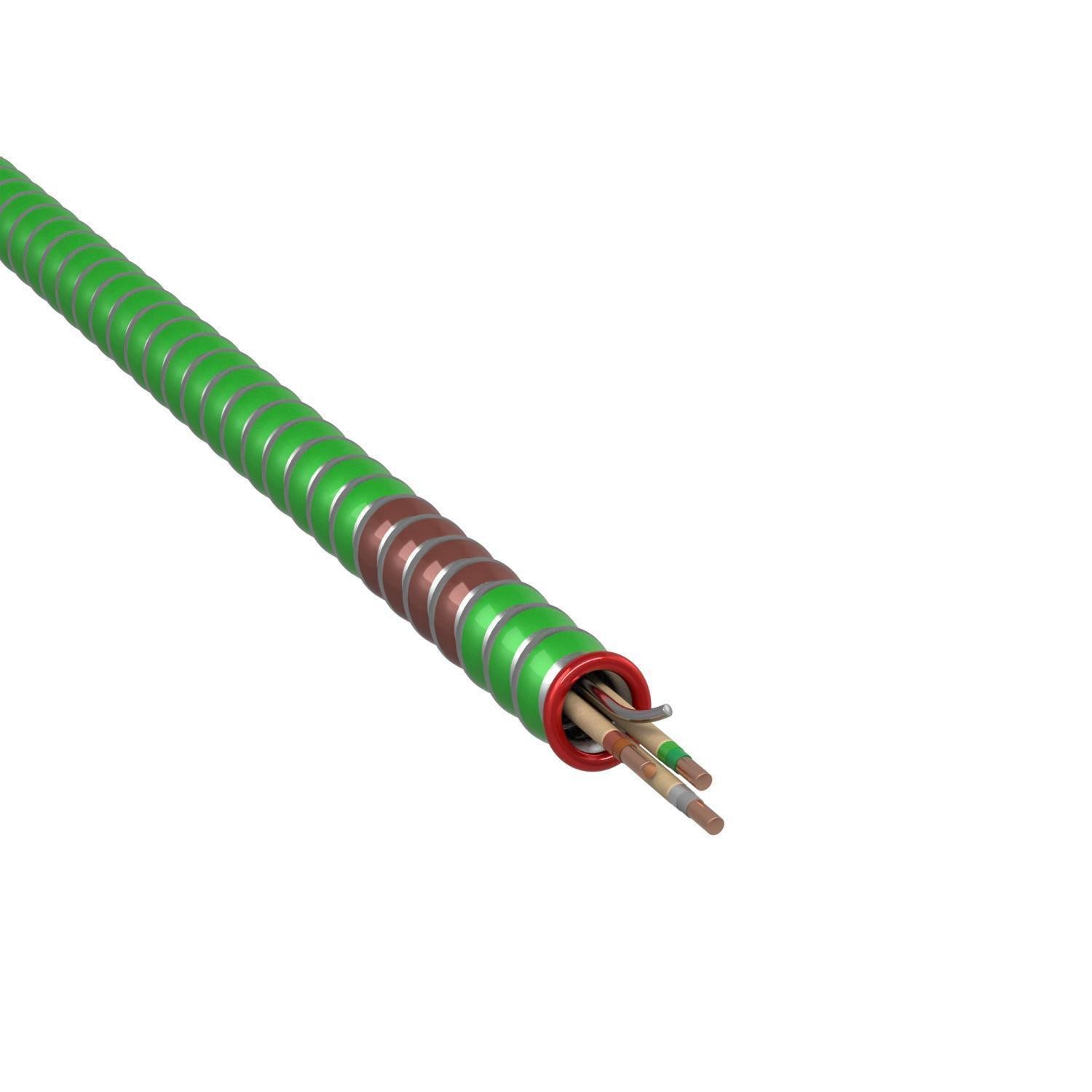

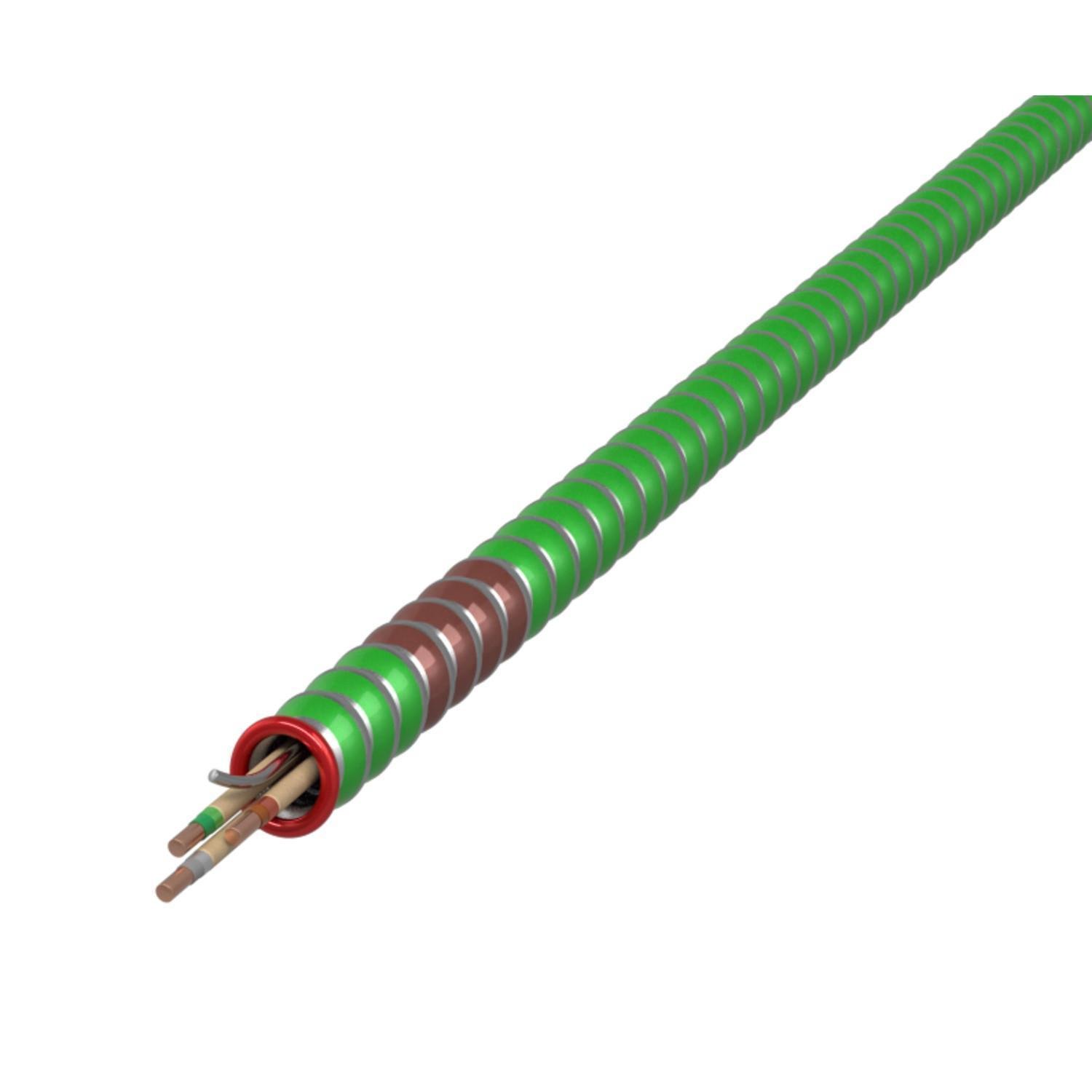

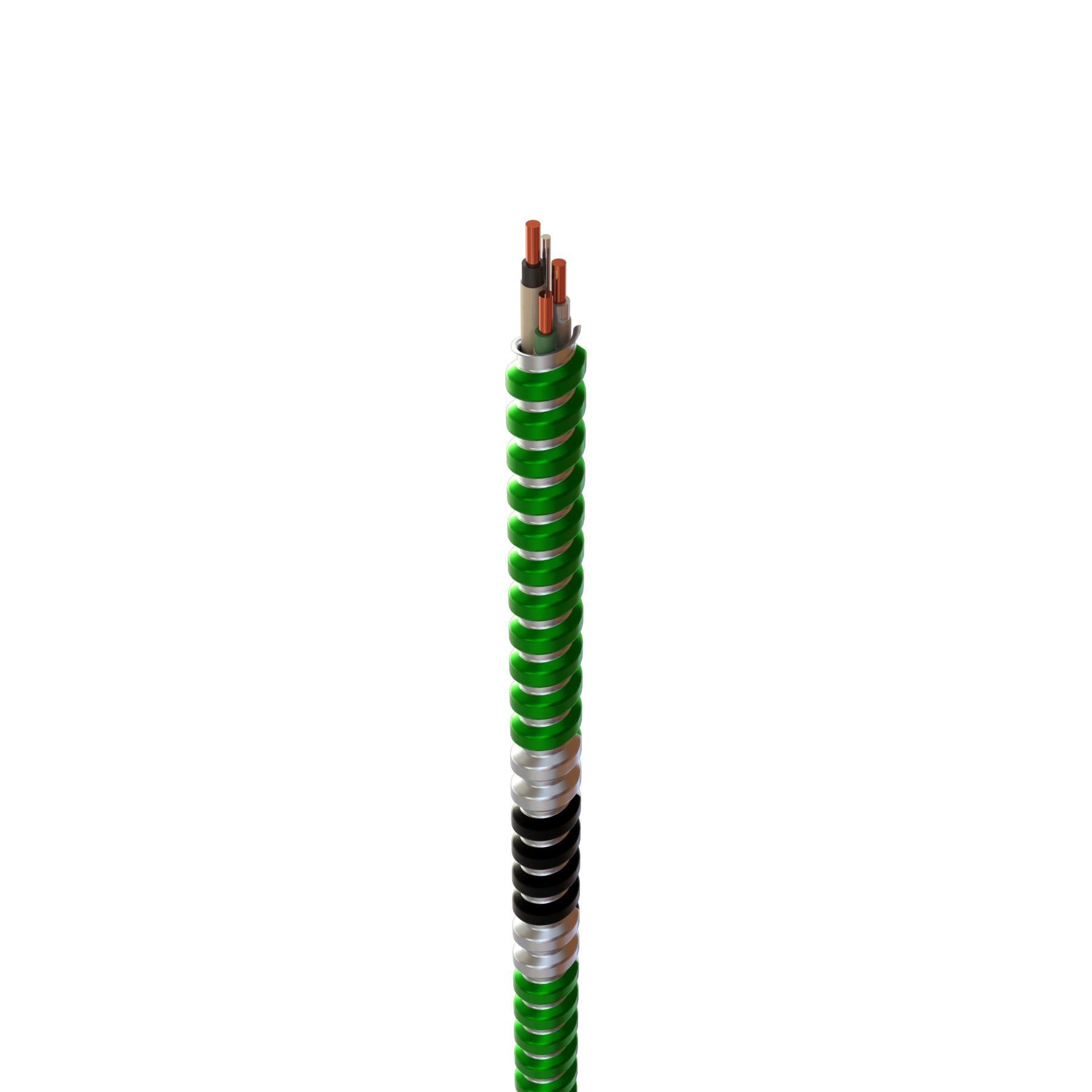

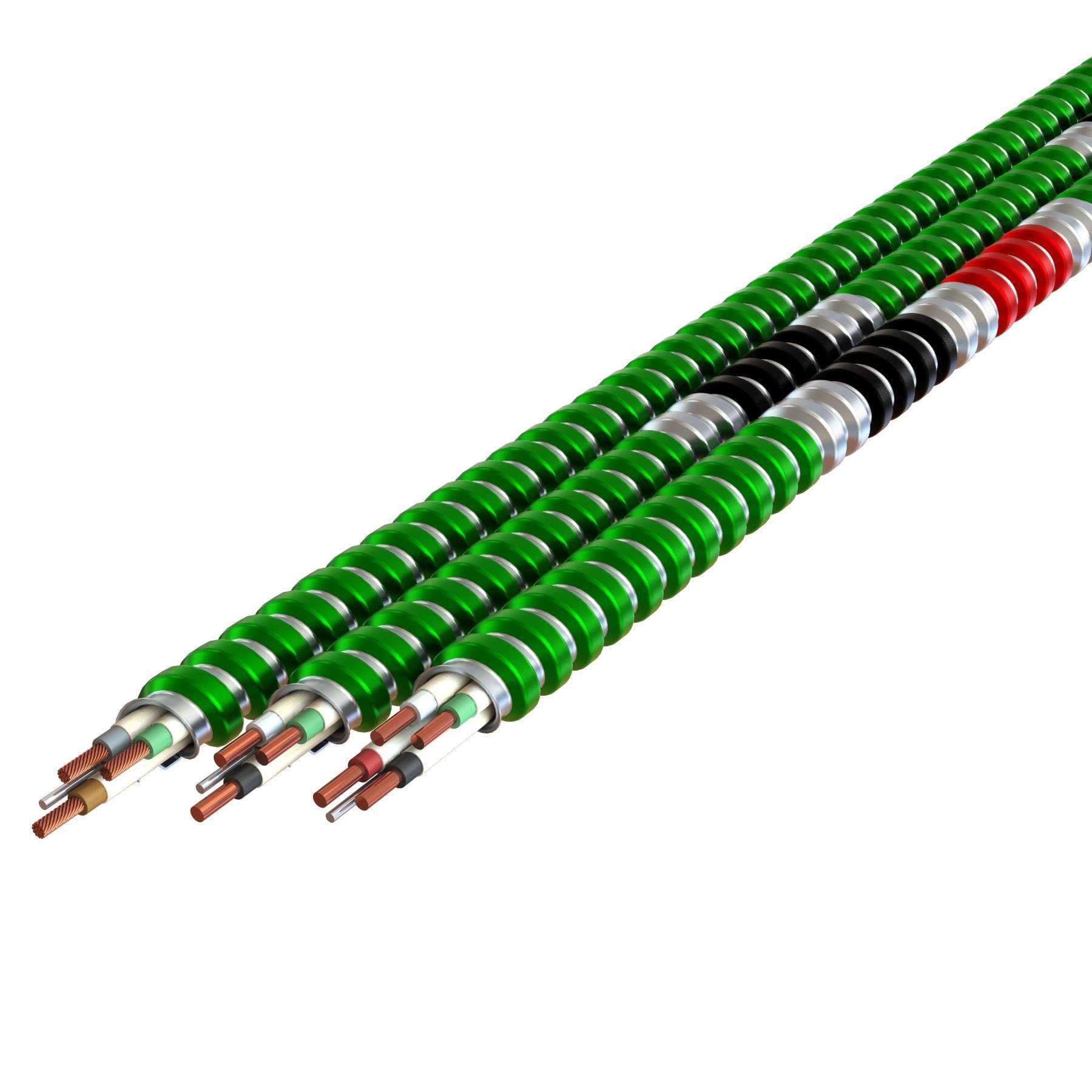

Picture of 2804G60-01 - AFC 2804G60-01 12-2 HCF LITE 1000' Picture of 2804G60-01 - AFC 2804G60-01 12-2 HCF LITE 1000'
Picture of 2804G60-01 - AFC 2804G60-01 12-2 HCF LITE 1000' Picture of 2804G60-01 - AFC 2804G60-01 12-2 HCF LITE 1000'
Picture of 2804G60-01 - AFC 2804G60-01 12-2 HCF LITE 1000' Picture of 2804G60-01 - AFC 2804G60-01 12-2 HCF LITE 1000'
Picture of 2804G60-01 - AFC 2804G60-01 12-2 HCF LITE 1000' Picture of 2804G60-01 - AFC 2804G60-01 12-2 HCF LITE 1000'
AFC Cable Systems

2804G60-01 - AFC 2804G60-01 12-2 HCF LITE 1000'

Item Code: 25450
Category CU Interlocked Alum Armor Cables - Teck
Manufacturer Ref HG122R277V
Minimum order quantity 1000

Document
Document
Call for Availability
Add to Favorites
Compare

Description

HCF-Lite®, which features interlocked aluminum armor, is a derivative of Type AC Cable. It was introduced in the 1980s to support NEC Article 517 on Healthcare Facilities in "areas of patient care". This branch circuit cable is offered in 12 or 10 AWG THHN in 2, 3, or 4 conductors and was one of the original ColorSpec® ID cables. The green interlocked armor became the recognized standard for healthcare facilities' cables, where redundant grounding is required. These 600V cables with THHN conductors have two paths to ground, which is a requirement of NEC 517. The outer metal jacket, in combination with a 16AWG, serves as one equipment grounding means, while the second is an additional full-size green copper ground.

Specifications

Weight

132.4lb

Height

10mm

Width

24mm

Length

288mm

AD Brand (Description)

AFC CABLE SYSTEMS

AD Country

USA

AD Country Of Origin

US

AD Gtin

00077680162267

AD Invoice Description

CABLE FACILITIES HEALTHCARE 600VAC 2 GRN

AD Item Features 01

Technically equivalent and economically superior to traditional raceway and wire installations

AD Item Features 02

ColorSpec ID/Color-Trak ID System

AD Item Features 03

Green aluminum armor with phase ID painted directly onto the armor for added identification without the added step of opening up the panel to determine circuit type

AD Item Features 04

Full-size green insulated copper grounding conductor plus armor/bond wire combination provides redundant ground or isolated grounding capability

AD Manufacturer (Description)

Atkore

AD Package Height

10.0000

AD Package Height UOM

IN

AD Package Length

288.0000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

132.4000

AD Package Weight UOM

LB

AD Package Width

24.0000

AD Package Width UOM

IN

Brand

General Wire

Category

CU Interlocked Alum Armor Cables - Teck

Spec 1 Attribute

Conductor Size

Spec 1 Attribute UOM

AWG

Spec 1 Attribute Value

12

Spec 10 Attribute

Temperature Rating

Spec 10 Attribute UOM

deg C

Spec 10 Attribute Value

90

Spec 11 Attribute

Type

Spec 11 Attribute Value

Type AC

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

600

Spec 2 Attribute

Conductor Type

Spec 2 Attribute Value

Solid Copper

Spec 3 Attribute

Insulation Material

Spec 3 Attribute Value

THHN

Spec 4 Attribute

Jacket Color

Spec 4 Attribute Value

Green

Spec 5 Attribute

Jacket Material

Spec 5 Attribute Value

Interlocked Aluminum Strip

Spec 6 Attribute

Length

Spec 6 Attribute UOM

Ft

Spec 6 Attribute Value

1000

Spec 7 Attribute

Number of Conductors

Spec 7 Attribute Value

2

Spec 8 Attribute

Outside Diameter

Spec 8 Attribute UOM

IN

Spec 8 Attribute Value

0.489

Spec 9 Attribute

Packaging Type

Spec 9 Attribute Value

Reel
