T4 Pro Programmable Thermostat with stages up to 1 Heat/1 Cool Heat Pumps or 1 Heat/1 Cool Conventional Systems
Description
Specifications
Honeywell
Grainger - 54DM26
USA
Instruction/Installation Manual
Owners/User Manual
Thermostat
LV THERMO PROGRAMMABLE
Simplified Control
Adaptive Intelligent Recovery
It takes work to manage your daily schedule, but with the T4 Pro Programmable Thermostat, your home temperature is one thing you can set and forget
The T4 Pro Programmable Thermostat is easy to install with on-screen menus to display installation steps and a universal mounting system
t's even easier to use with simple push button controls, allowing you to adjust the temperature or set a heating and cooling schedule
Over time, the T4 Pro Programmable Thermostat learns how long it takes your system to reach the temperature you want
It turns on the heating or cooling system earlier to make sure you're comfortable at the time you expect
TH4110U2005/U T4 Pro Thermostat, Programmable Thermostat, 40 to 90 deg F Heat/50 to 99 deg F Cool Control, ±1 deg F Differential, Relay Switch ; Honeywell ; TH4110U2005/U ; Low Voltage Thermostats
Honeywell
1
TH4110U2005/U ; TH4110U2005U
Aube Technologies
Temperature Controls
Color
White
Series
T4 Pro
Stages Cool
1 Cool Pump, 1 Conventional
Stages Heat
1 Heat Pump, 1 Conventional
Switch Type
Relay
System Switching
Heat/Cool/Auto/Off
Thermostat Type
Programmable
Voltage Rating
V AC
20 To 30
Control Range
40 to 90 deg F Heat/50 to 99 deg F Cool
Differential
deg F
±1
Dimensions
4.06 in H x 4.06 in W x 1.13 in D
Display Type
Backlit LED
Humidity Range
5 to 90% Non-Condensing

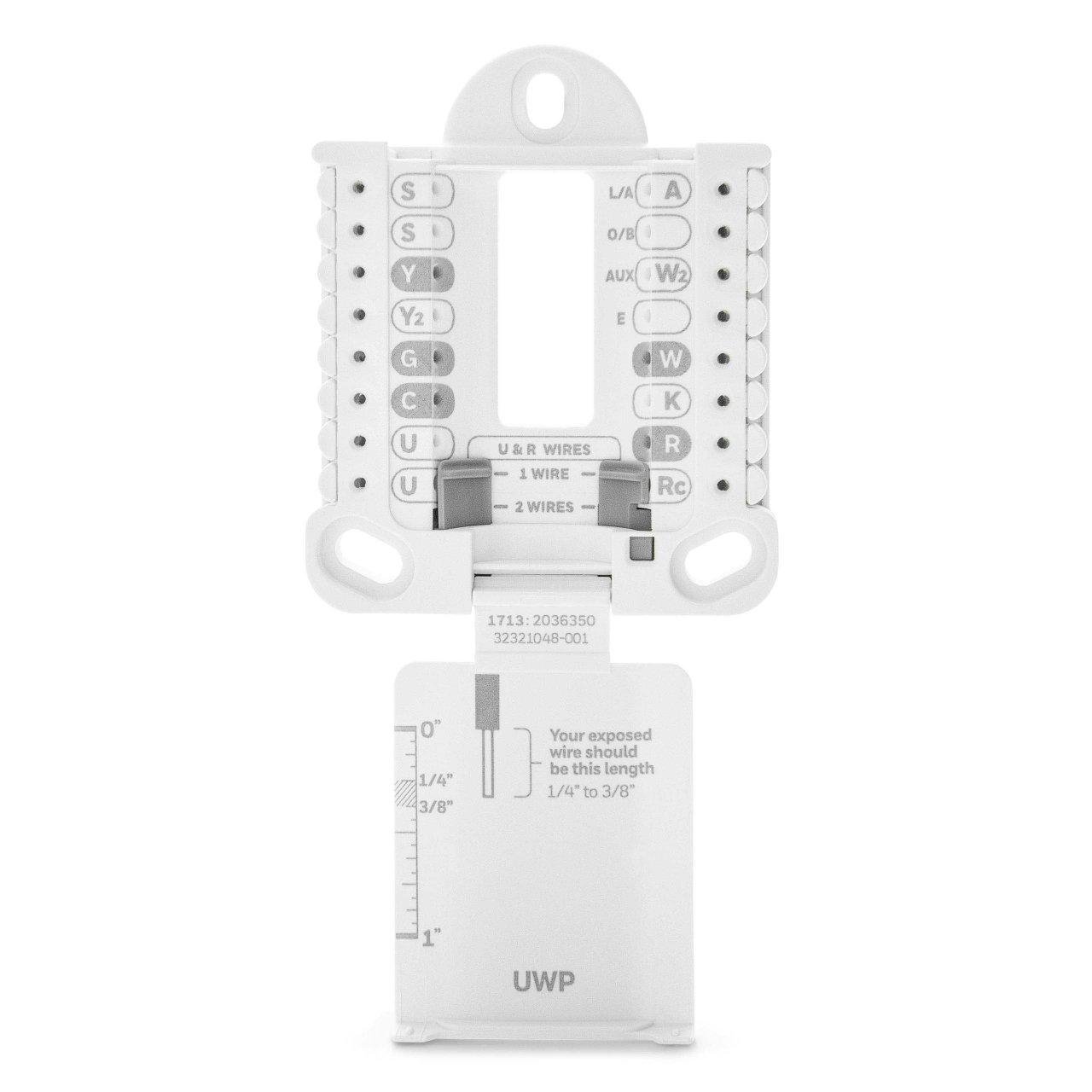

Mounting Type
UWP
Number of Stages
2
Power Source
Battery/Hardwired
