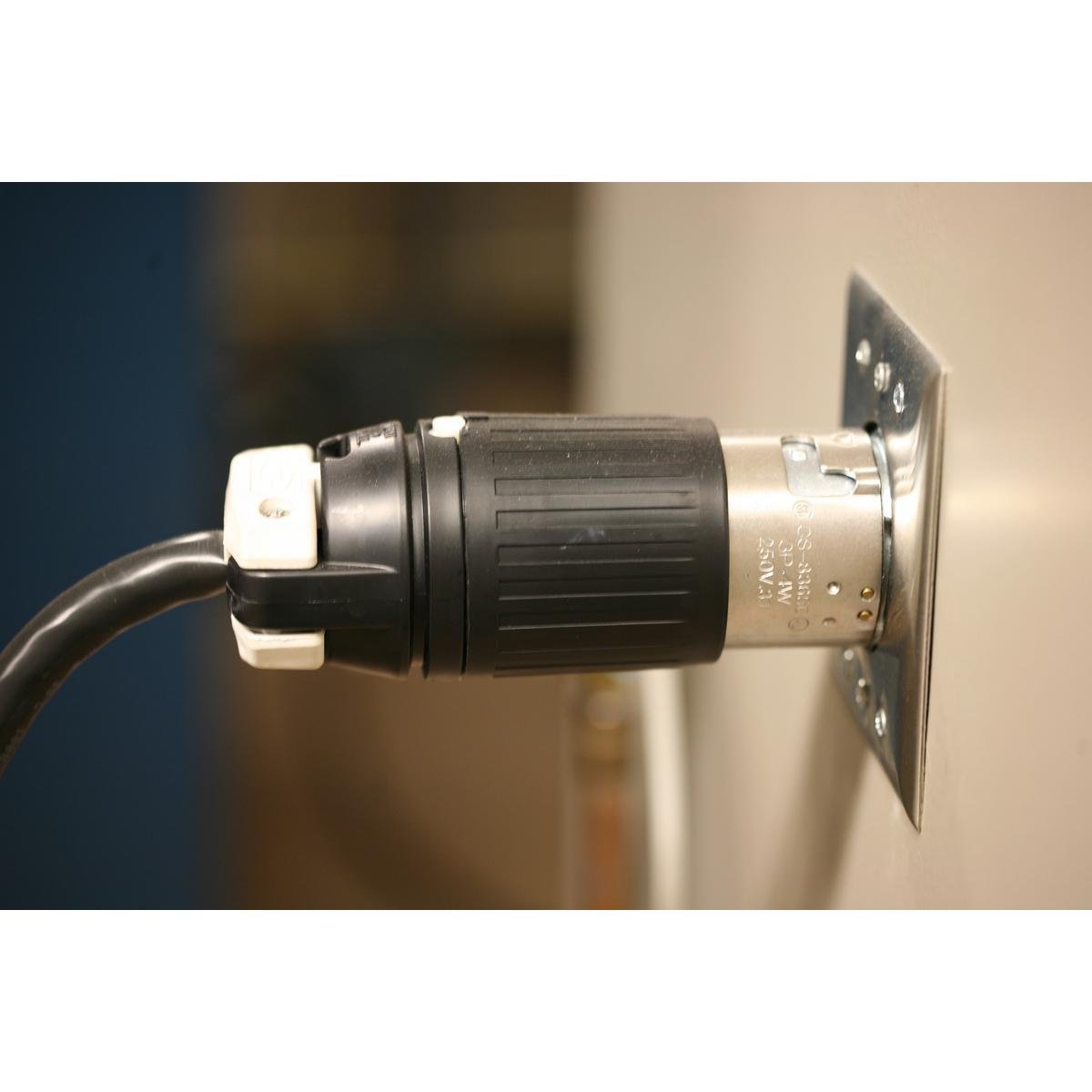

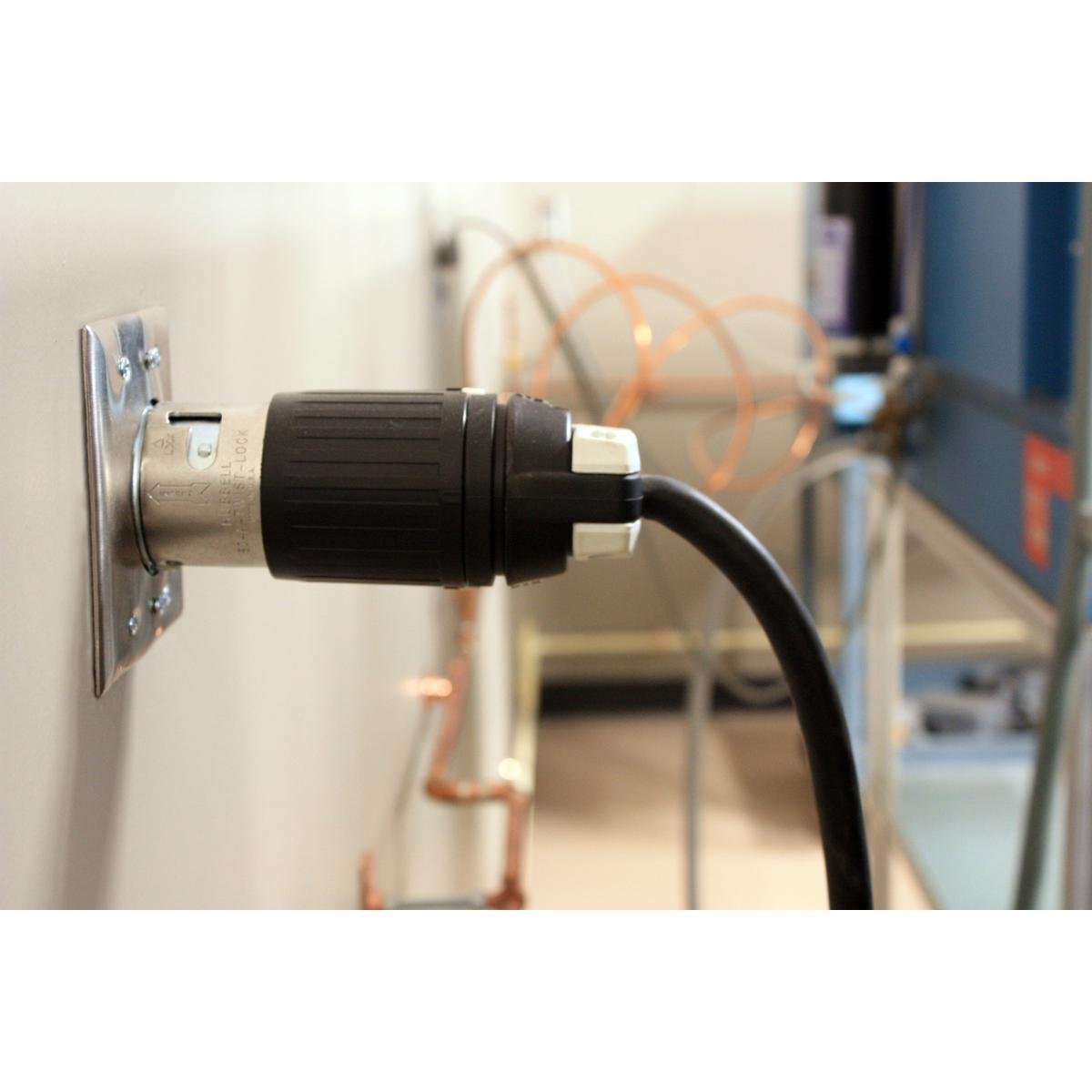

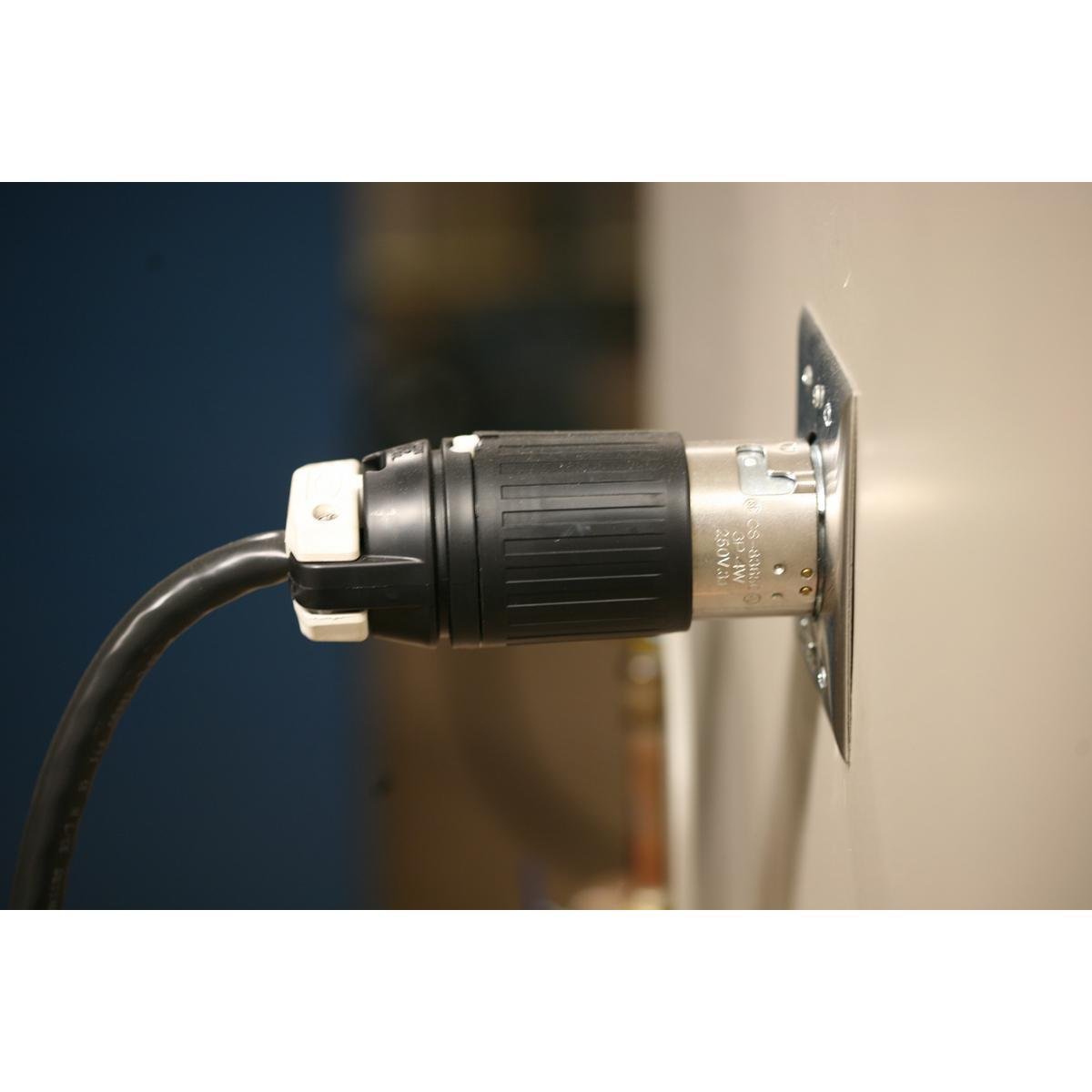

CS8365C - Locking Devices, Twist-Lock®, Industrial, Male Plug, 50A, 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, Non- NEMA, Screw Terminal, Black and White
Description
Specifications
1.25lb
2.68mm
2.7mm
7.2mm
Power Connection Applications
Hubbell Wiring Device-Kellems
USA
US
LKG PLUG 250V AC 50A 3 4 BLACK/WHITE
Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands
Stainless steel shroud protects contacts and prevents mismating
Super tough nylon housing offers better impact qualities
Thermoplastic polyester interior provides heat resistance and impact strength
Heavy duty two-piece external cord clamp provides maximum strain relief
Hubbell
2.6800
IN
7.2000
IN
1
1.2500
LB
2.7000
IN
https://youtu.be/1DnPJu3QNw0
Hubbell Wiring Device-Kellems
PLUGS, CONNECTORS, INLETS, OUTLETS
Amperage Rating
A
50
Series
CS Series
Temperature Rating
deg C
-40 To 75
Terminal Type
Screw
Type
3-Phase Grounding Cord Mount
Voltage Rating
V AC
250
Color
Black/white
Cord Diameter
IN
3/4 to 1-1/8
Dimensions
IN
6.37 x 2.56 x 2.56
Enclosure
IP20
Grade
Industrial
Material
Nylon
Number Of Poles
3
Number Of Wires
4
