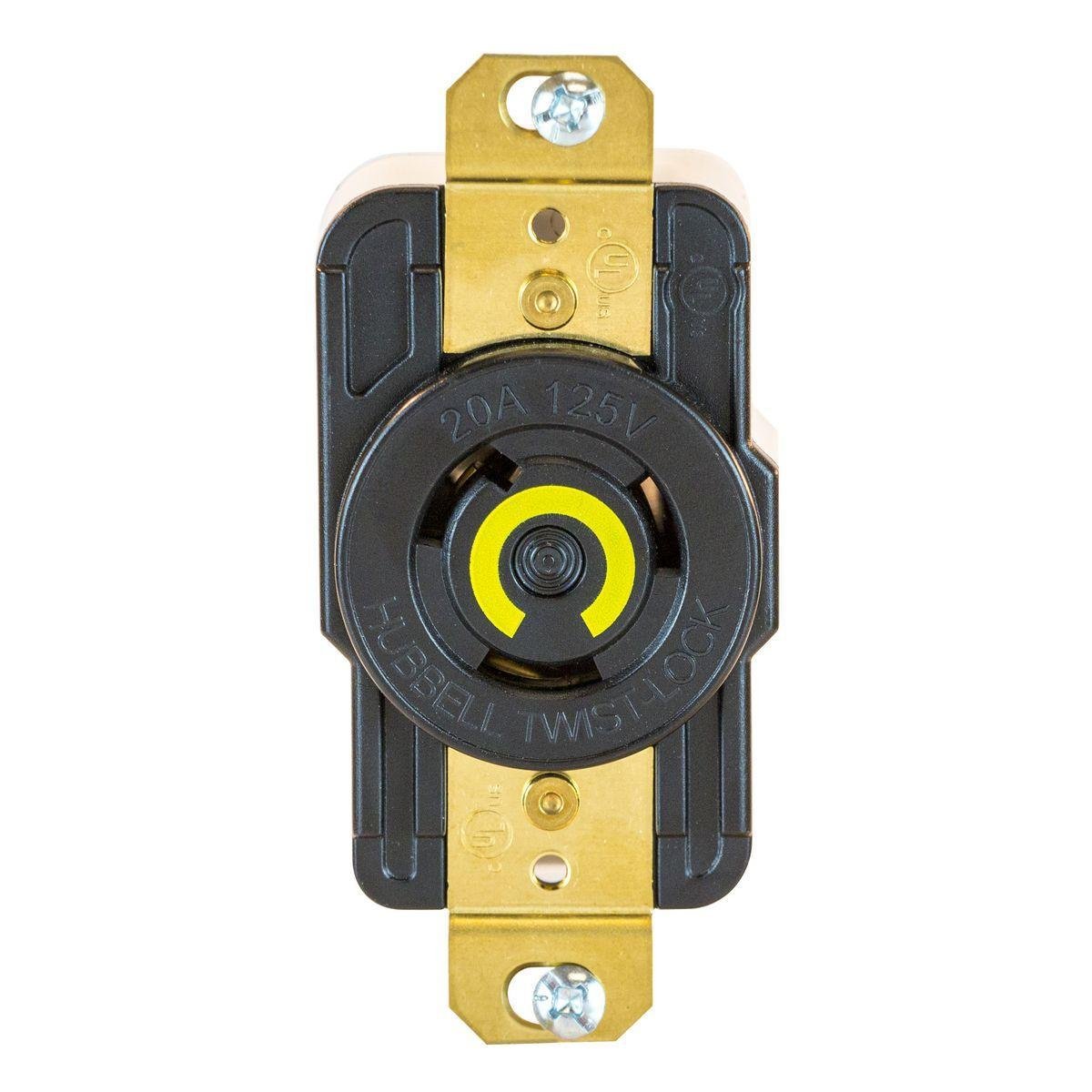

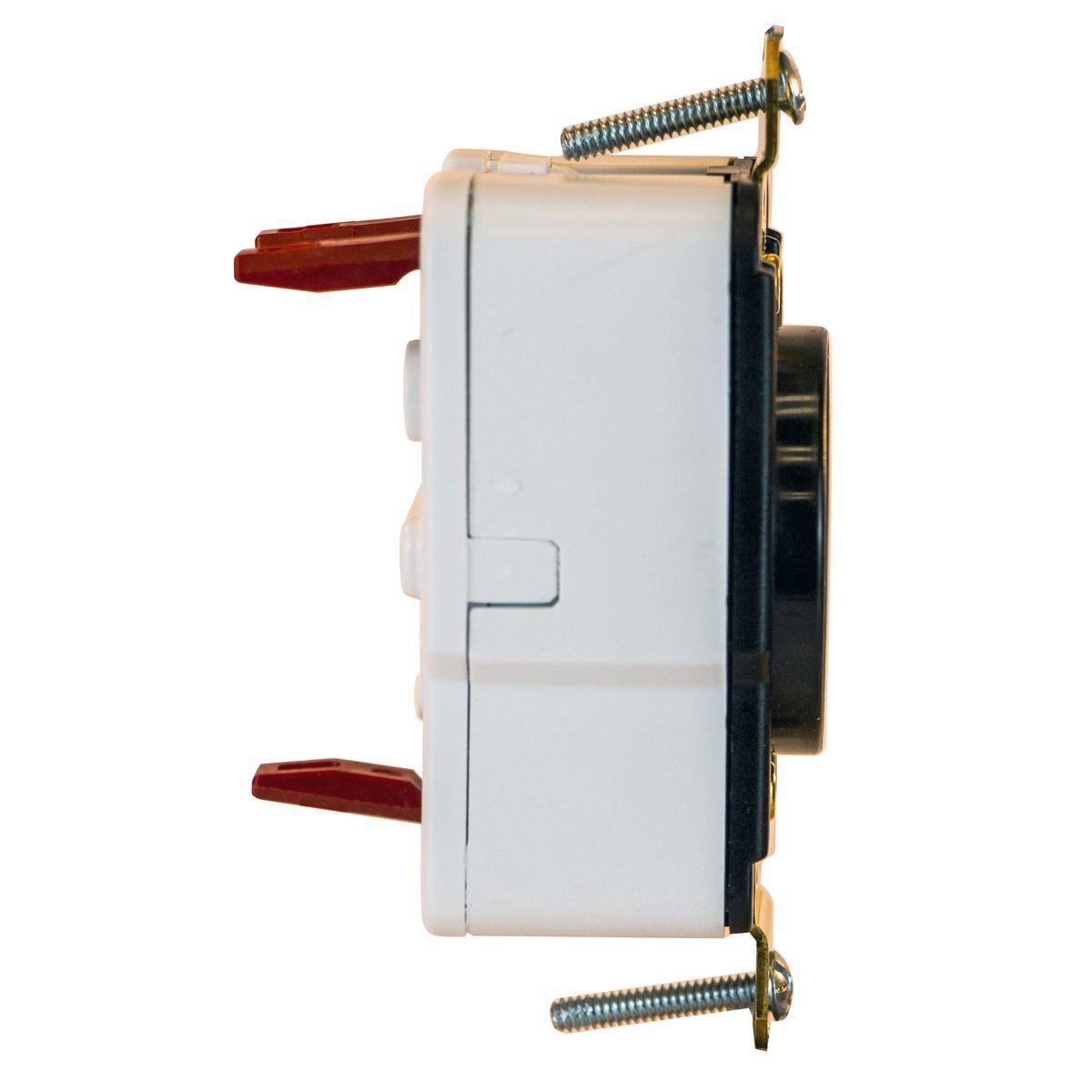

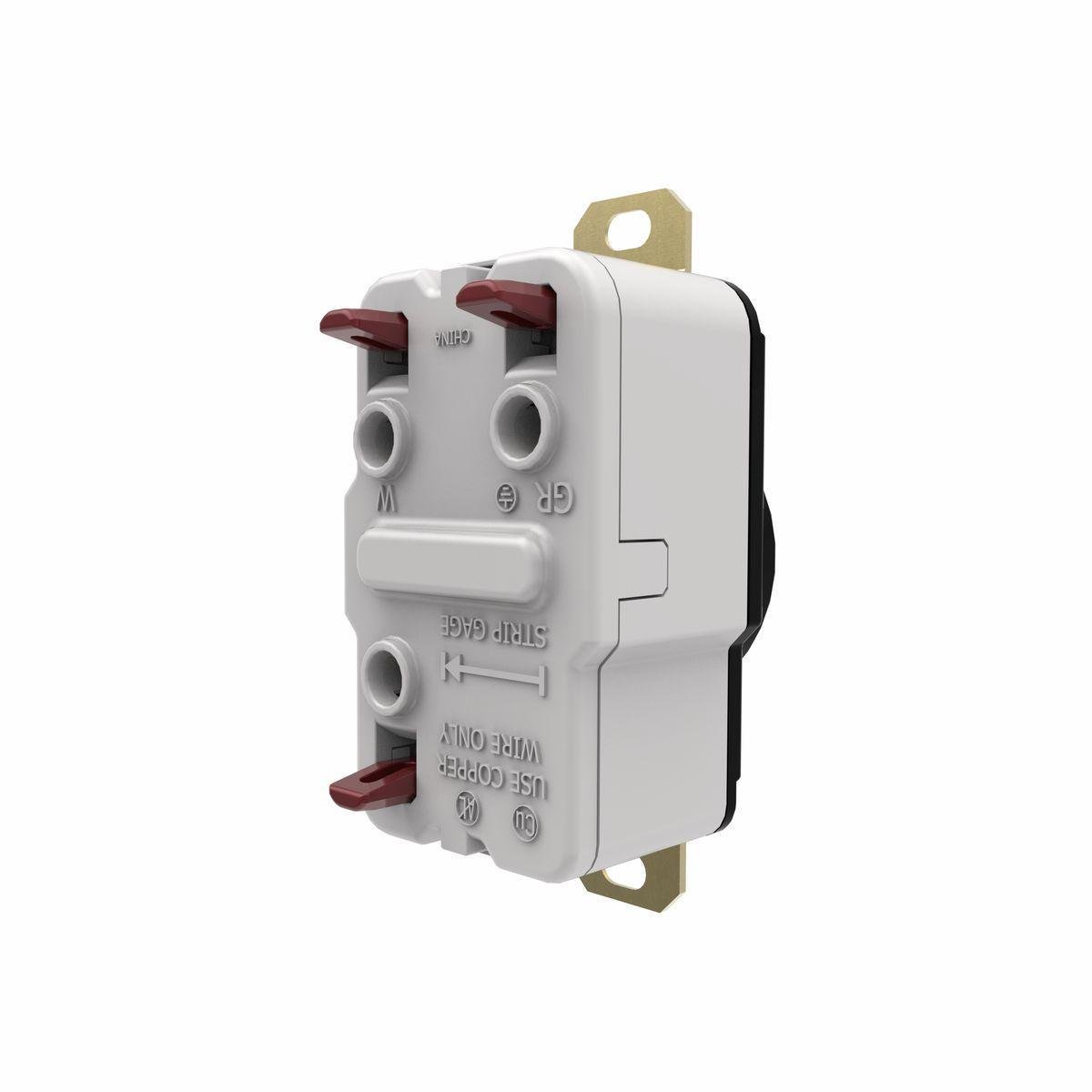

HBL2310ST - EdgeConnect™ Twist-Lock® Receptacle, 20A 125V, L5-20R, BK, with Spring Termination
Item Code: 1154119
Category
Receptacles & Surge Protectors
Manufacturer Hubbell
Manufacturer Ref HBL2310ST
selection not available, try a different combination
selection not available, try a different combination
Call for Availability
Compare
Description
Specifications
Weight
0.15lb
Height
2.4mm
Width
2.5mm
Length
4mm
Amperage Rating
20 A
Brand
Hubbell Wiring Device-Kellems
Category
RECEPTACLES & SURGE PROTECTORS
Color
Black
Dimensions
1.7 in W x 1.468 in D x 2.77 in H
Enclosure
IP20
Horsepower
1 hp
Material
Nylon
NEMA Rating
NEMA L5-20R
Number Of Poles
2
Number of Wires
3
Temperature Rating
-40 To 75 Deg C
Terminal Type
Spring
Type
Grounding Single Flush
Voltage Rating
125 V
