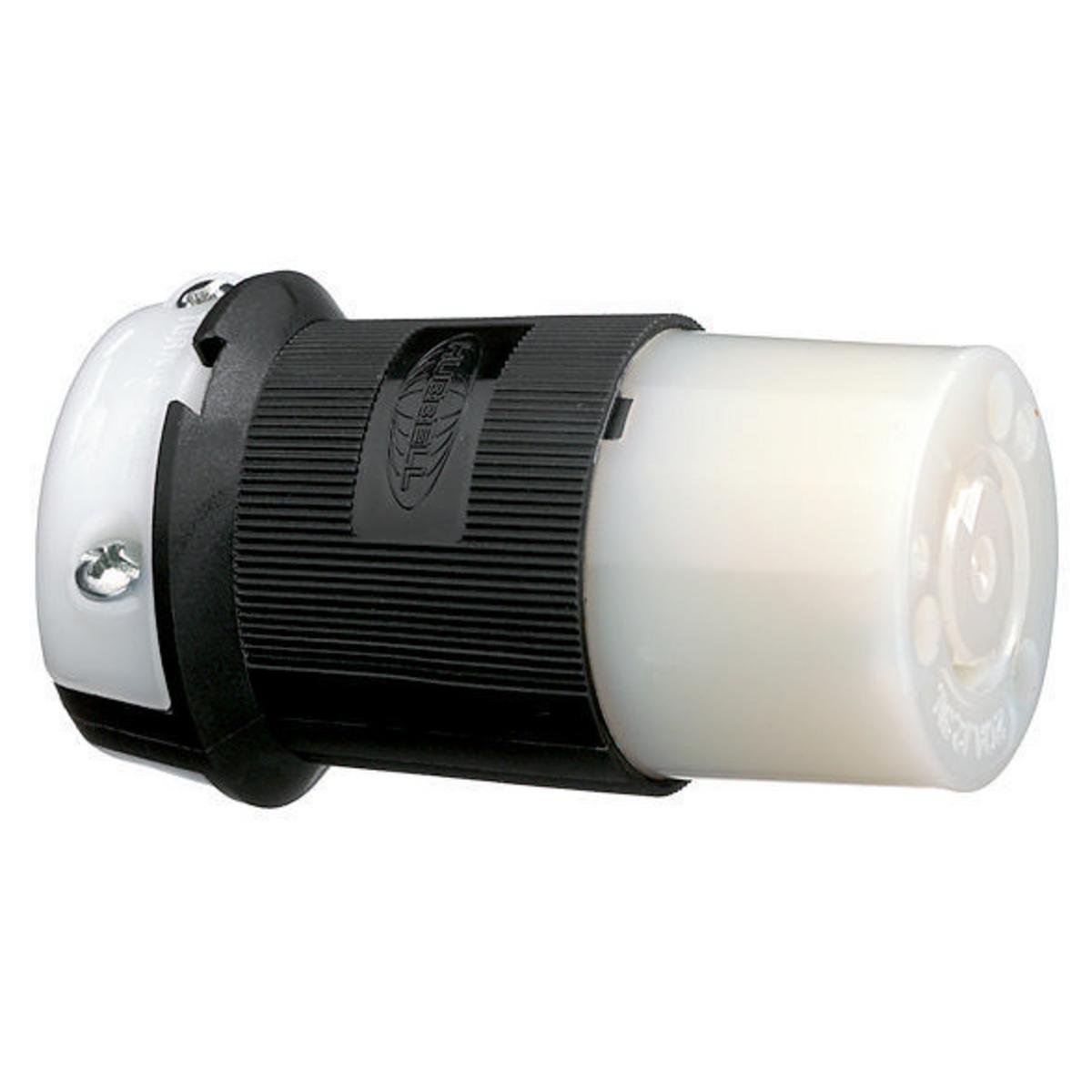

HBL2313 - Locking Devices, Twist-Lock®, Industrial, Female Connector Body, 20A 125V, 2-Pole 3-Wire Grounding, L5-20R, Screw Terminal, Black and White
Description
Specifications
0.35lb
2.42mm
2.5mm
4.3mm
Hubbell Wiring Device-Kellems
USA
US
LKG CONN 125V AC 20A 2 3 BLACK/WHITE 1HP
Integral dust shield protects wiring chamber from dust or contaminants
Superior cord grip design protects terminations from excess strain
Ribbed nylon housing provides a secure grip and impact and chemical resistance
Clear, funnel shaped wire entry for ease of termination
Hubbell
2.4200
IN
4.3000
IN
1
0.3500
LB
2.5000
IN
https://youtu.be/1DnPJu3QNw0
Hubbell Wiring Device-Kellems
PLUGS, CONNECTORS, INLETS, OUTLETS
Amperage Rating
A
20
Number Of Poles
2
Number Of Wires
3
Series
HBL®
Temperature Rating
deg C
-40 To 75
Terminal Type
Pressure Screw
Type
Grounding Heavy Duty Cord Mount
Voltage Rating
V AC
125
Color
Black/white
Cord Diameter
IN
0.36 to 0.93
Dimensions
IN
2.26 x 2.26 x 3.86
Enclosure
IP20
Grade
Commercial/Industrial
HORSEPOWER
HP
1
Material
Nylon
NEMA Rating
L5-20R
