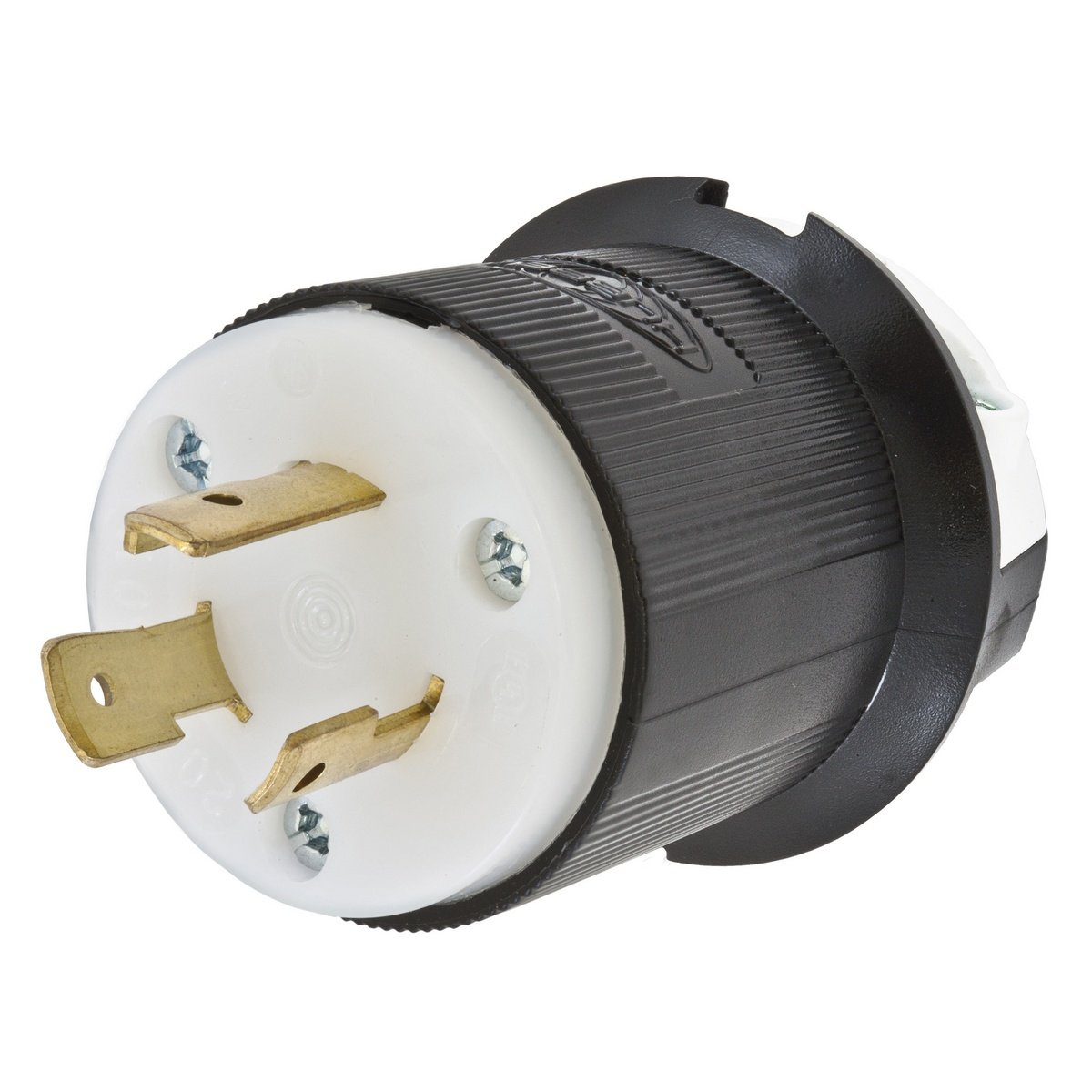

HBL2321 - Locking Devices, Twist-Lock®, Industrial, Male Plug, 20A 250V, 2-Pole 3-Wire Grounding, L6-20P, Screw Terminal, Black and White
Description
Specifications
0.3lb
2.42mm
2.6mm
4.2mm
Power Connection Applications
Hubbell Wiring Device-Kellems
USA
US
LKG PLUG 250V AC 20A 2 3 BLACK/WHITE 2HP
Integral dust shield protects wiring chamber from dust or contaminants
Clear, funnel shaped wire entry for ease of termination
Ribbed nylon housing provides a secure grip and impact and chemical resistance
Superior cord grip design protects terminations from excess strain
Hubbell
2.4200
IN
4.2000
IN
1
0.3000
LB
2.6000
IN
https://youtu.be/1DnPJu3QNw0
Hubbell Wiring Device-Kellems
PLUGS, CONNECTORS, INLETS, OUTLETS
Amperage Rating
A
20
Number Of Poles
2
Number Of Wires
3
Series
HBL®
Temperature Rating
deg C
-40 To 75
Terminal Type
Screw
Type
1-Phase Grounding Cord Mount
Voltage Rating
V AC
250
Color
Black/white
Cord Diameter
IN
0.36 to 0.93
Dimensions
IN
2.26 x 2.26 x 2.75
Enclosure
IP20
Grade
Industrial
HORSEPOWER
HP
2
Material
Nylon
NEMA Rating
L6-20P
