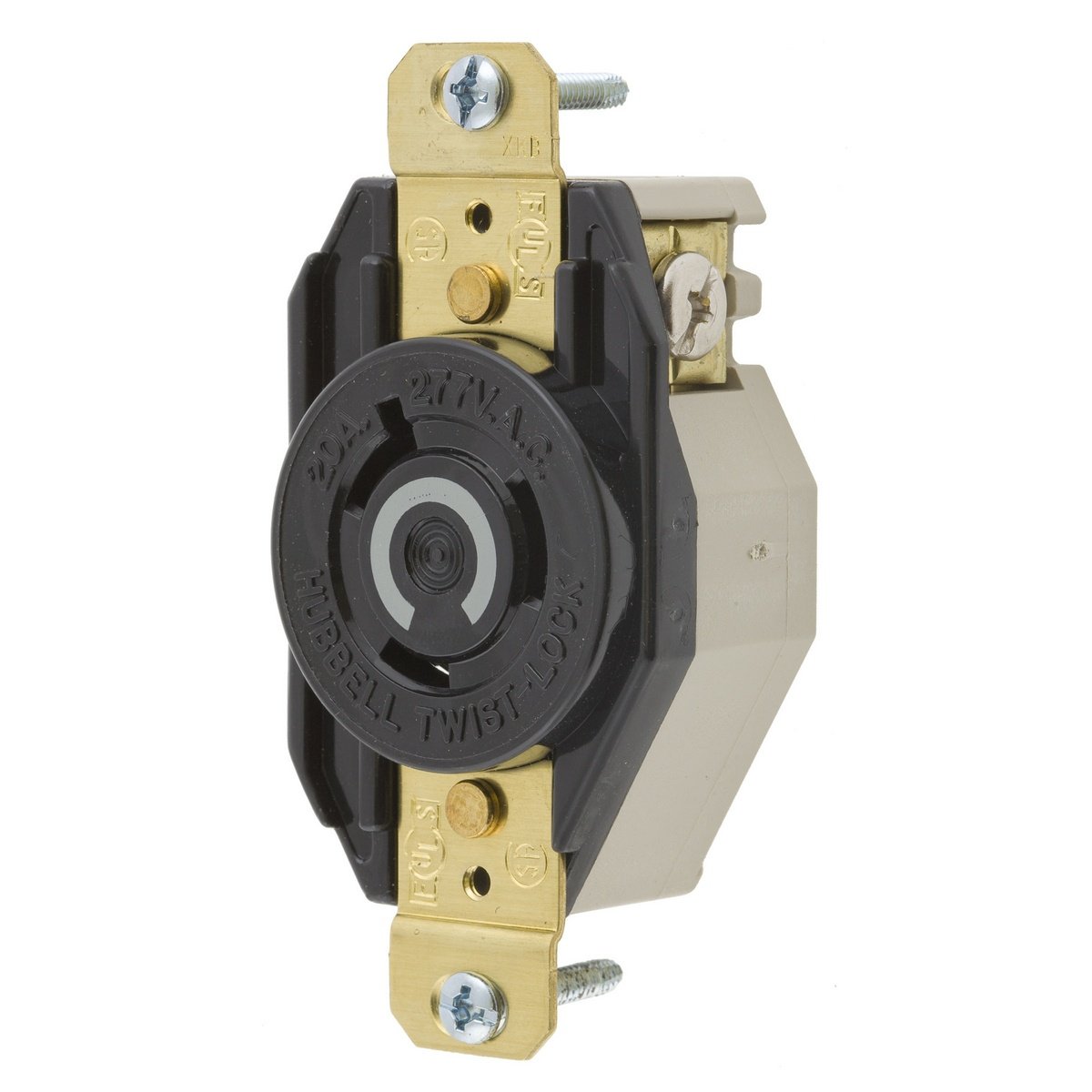

HBL2330 - Locking Devices, Twist-Lock®, Industrial, Flush Receptacle, 20A 277V AC, 2-Pole 3-Wire Grounding, L7-20R, Screw Terminal, Black
Description
Specifications
0.08lb
1.66mm
2mm
4.1mm
Hubbell Wiring Device-Kellems
USA
US
LKG RCPT 277V AC 20A 2 3 BK 2HP L7-20R
Face color coding by voltage facilitates locating and mating male of proper devices
Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
Hubbell
1.6600
IN
4.1000
IN
1
0.0800
LB
2.0000
IN
https://youtu.be/1DnPJu3QNw0
Hubbell Wiring Device-Kellems
RECEPTACLES & SURGE PROTECTORS
Amperage Rating
A
20
Number Of Wires
3
Series
HBL®
Temperature Rating
deg C
-40 To 75
Terminal Type
Screw
Type
1-Phase Flush Mount Grounding Heavy Duty Single Screw Mount
Voltage Rating
V AC
277
Color
Black
Dimensions
IN
3.28 x 1.7 x 1.23
Enclosure
NEMA 4/4X/12/IP20
Grade
Industrial
HORSEPOWER
HP
2
Material
Nylon
NEMA Rating
L7-20R
Number Of Poles
2
