HBL2420 - Locking Devices, Twist-Lock®, Industrial, Flush Receptacle, 20A 3 Phase Delta 250V AC, 3-Pole 4-Wire Grounding, L15-20R, Screw Terminal, Black

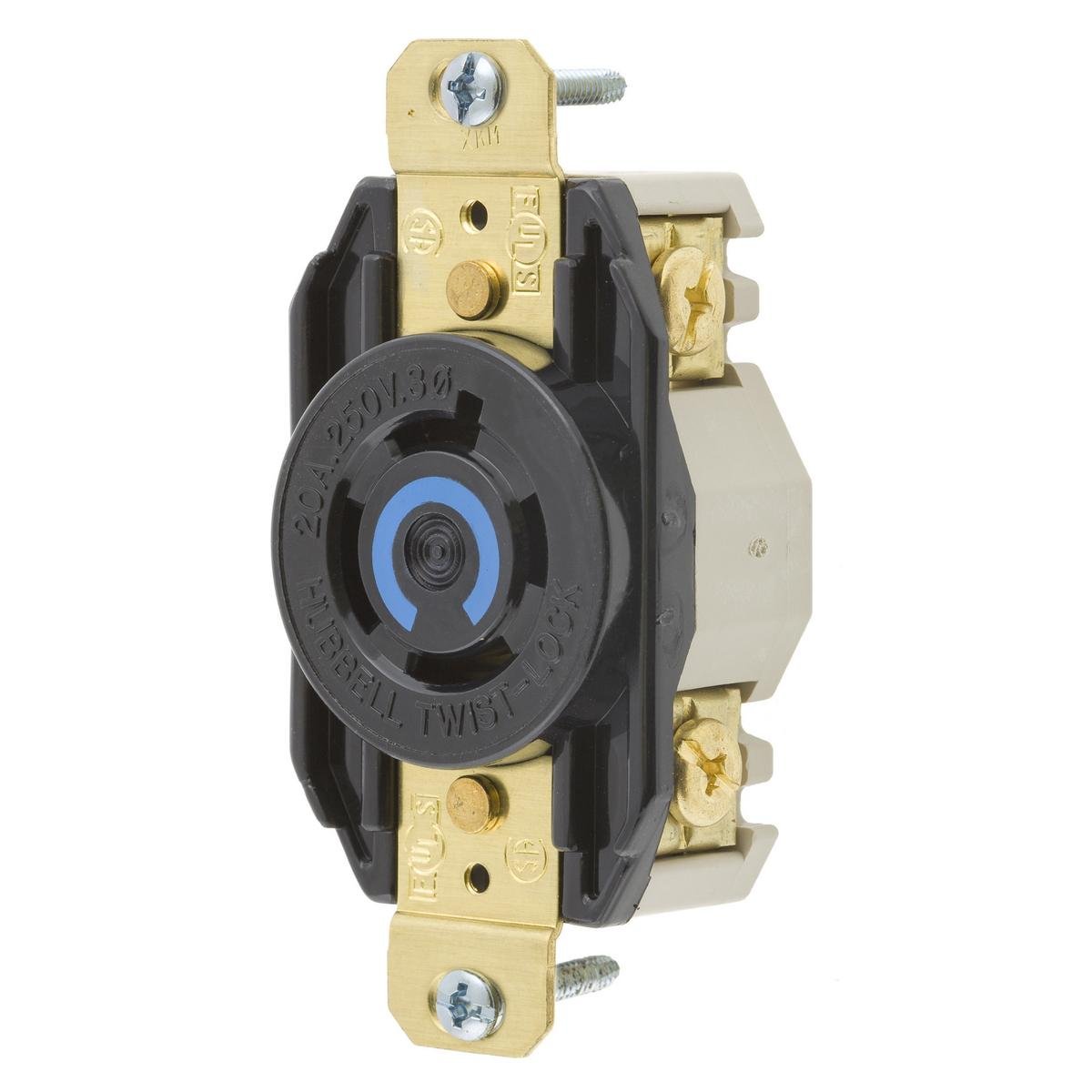

Picture of HBL2420 - Locking Devices, Twist-Lock®, Industrial, Flush Receptacle, 20A 3 Phase Delta 250V AC, 3-Pole 4-Wire Grounding, L15-20R, Screw Terminal, Black Picture of HBL2420 - Locking Devices, Twist-Lock®, Industrial, Flush Receptacle, 20A 3 Phase Delta 250V AC, 3-Pole 4-Wire Grounding, L15-20R, Screw Terminal, Black
Picture of HBL2420 - Locking Devices, Twist-Lock®, Industrial, Flush Receptacle, 20A 3 Phase Delta 250V AC, 3-Pole 4-Wire Grounding, L15-20R, Screw Terminal, Black Picture of HBL2420 - Locking Devices, Twist-Lock®, Industrial, Flush Receptacle, 20A 3 Phase Delta 250V AC, 3-Pole 4-Wire Grounding, L15-20R, Screw Terminal, Black

HBL2420 - Locking Devices, Twist-Lock®, Industrial, Flush Receptacle, 20A 3 Phase Delta 250V AC, 3-Pole 4-Wire Grounding, L15-20R, Screw Terminal, Black

Item Code: 668566
Manufacturer Hubbell
Manufacturer Ref HBL2420
Call for Availability
Compare

Description

Locking Devices, Twist-Lock®, Industrial, Single Flush Receptacle, 20A 3 Phase 250V AC, 3-Pole 4-Wire Grounding, NEMA L15-20R, Screw Terminal, Nylon face, Back and side wired, Black.

Specifications

Weight

0.3lb

Height

1.66mm

Width

2mm

Length

4.3mm

Amperage Rating

20 A

Brand

Hubbell Wiring Device-Kellems

Category

RECEPTACLES & SURGE PROTECTORS

Color

Black

Dimensions

3.28 x 1.7 x 1.23 in

Enclosure

NEMA 4/4X/12/IP20

Grade

Industrial

Horsepower

3 hp

Material

Nylon

NEMA Rating

L15-20R

Number Of Poles

3

Number of Wires

4

Series

HBL®

Temperature Rating

-40 To 75 Deg C

Terminal Type

Screw

Type

3-Phase Grounding Heavy Duty Single Screw Mount

Voltage Rating

250 V AC

HBL2420 - Locking Devices, Twist-Lock®, Industrial, Flush Receptacle, 20A 3 Phase Delta 250V AC, 3-Pole 4-Wire Grounding, L15-20R, Screw Terminal, Black

Picture of HBL2420 - Locking Devices, Twist-Lock®, Industrial, Flush Receptacle, 20A 3 Phase Delta 250V AC, 3-Pole 4-Wire Grounding, L15-20R, Screw Terminal, Black Picture of HBL2420 - Locking Devices, Twist-Lock®, Industrial, Flush Receptacle, 20A 3 Phase Delta 250V AC, 3-Pole 4-Wire Grounding, L15-20R, Screw Terminal, Black
Picture of HBL2420 - Locking Devices, Twist-Lock®, Industrial, Flush Receptacle, 20A 3 Phase Delta 250V AC, 3-Pole 4-Wire Grounding, L15-20R, Screw Terminal, Black Picture of HBL2420 - Locking Devices, Twist-Lock®, Industrial, Flush Receptacle, 20A 3 Phase Delta 250V AC, 3-Pole 4-Wire Grounding, L15-20R, Screw Terminal, Black

HBL2420 - Locking Devices, Twist-Lock®, Industrial, Flush Receptacle, 20A 3 Phase Delta 250V AC, 3-Pole 4-Wire Grounding, L15-20R, Screw Terminal, Black

Item Code: 668566
Manufacturer Hubbell
Manufacturer Ref HBL2420
Call for Availability
Compare

Description

Locking Devices, Twist-Lock®, Industrial, Single Flush Receptacle, 20A 3 Phase 250V AC, 3-Pole 4-Wire Grounding, NEMA L15-20R, Screw Terminal, Nylon face, Back and side wired, Black.

Specifications

Weight

0.3lb

Height

1.66mm

Width

2mm

Length

4.3mm

Amperage Rating

20 A

Brand

Hubbell Wiring Device-Kellems

Category

RECEPTACLES & SURGE PROTECTORS

Color

Black

Dimensions

3.28 x 1.7 x 1.23 in

Enclosure

NEMA 4/4X/12/IP20

Grade

Industrial

Horsepower

3 hp

Material

Nylon

NEMA Rating

L15-20R

Number Of Poles

3

Number of Wires

4

Series

HBL®

Temperature Rating

-40 To 75 Deg C

Terminal Type

Screw

Type

3-Phase Grounding Heavy Duty Single Screw Mount

Voltage Rating

250 V AC
