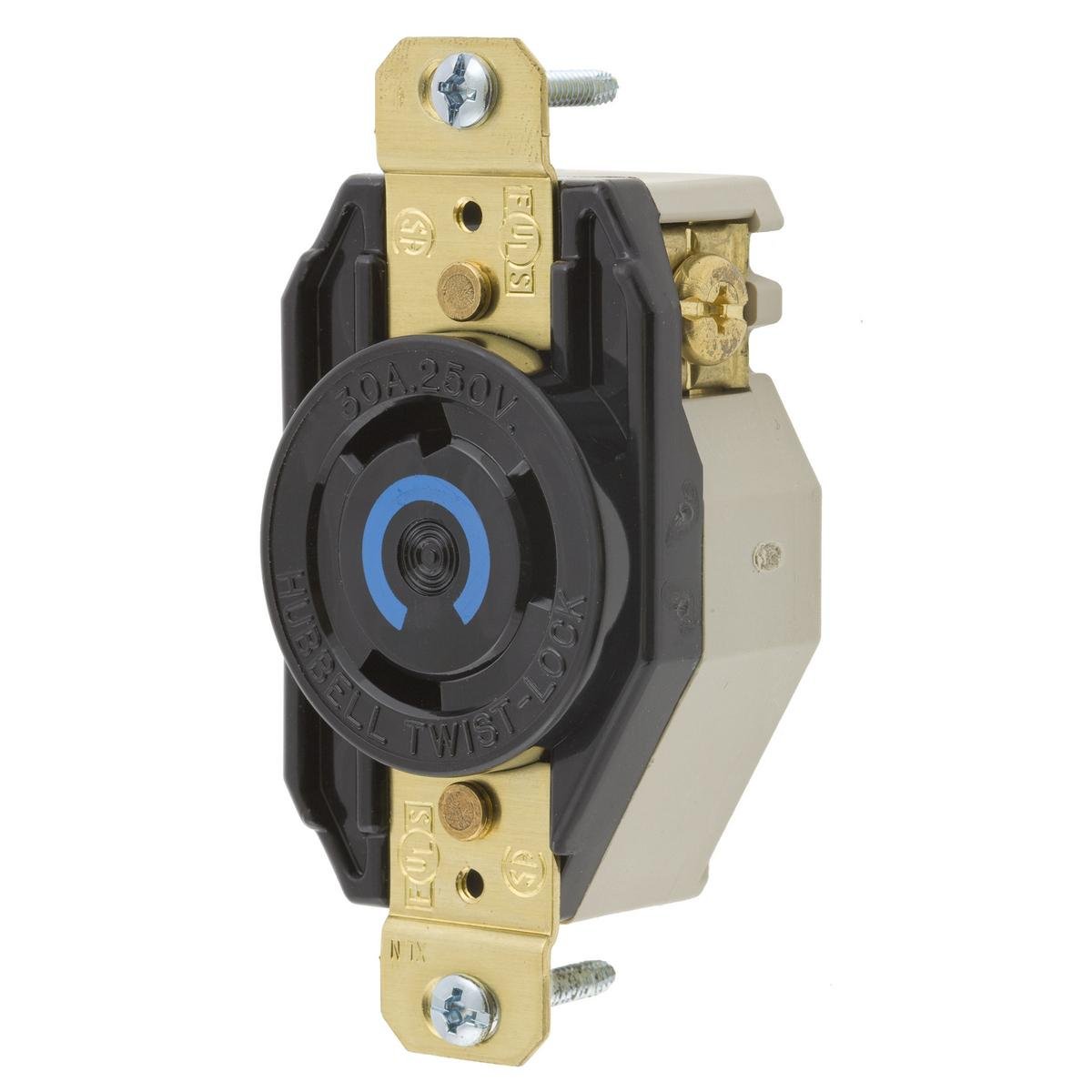

HBL2620 - Locking Devices, Twist-Lock®, Industrial, Flush Receptacle, 30A 250V, 2-Pole 3-Wire Grounding, L6-30R, Screw Terminal, Black
Description
Specifications
0.25lb
1.66mm
1.9mm
4.3mm
Hubbell Wiring Device-Kellems
USA
US
LOCKING SINGLE RECEPTACLE SGL LKG 250VAC
Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
Face color coding by voltage facilitates locating and mating of proper devices
All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
Hubbell
1.6600
IN
4.3000
IN
1
0.2500
LB
1.9000
IN
https://youtu.be/1DnPJu3QNw0
Hubbell Wiring Device-Kellems
RECEPTACLES & SURGE PROTECTORS
Amperage Rating
A
30
Series
HBL®
Temperature Rating
deg C
-40 To 75
Terminal Type
Screw
Type
1-Phase Grounding Heavy Duty Single Screw Mount
Voltage Rating
V AC
250
Color
Black
Dimensions
IN
3.28 x 1.7 x 1.31
Grade
Industrial
HORSEPOWER
HP
2
Material
Nylon
NEMA Rating
L6-30R
Number Of Poles
2
Number Of Wires
3
