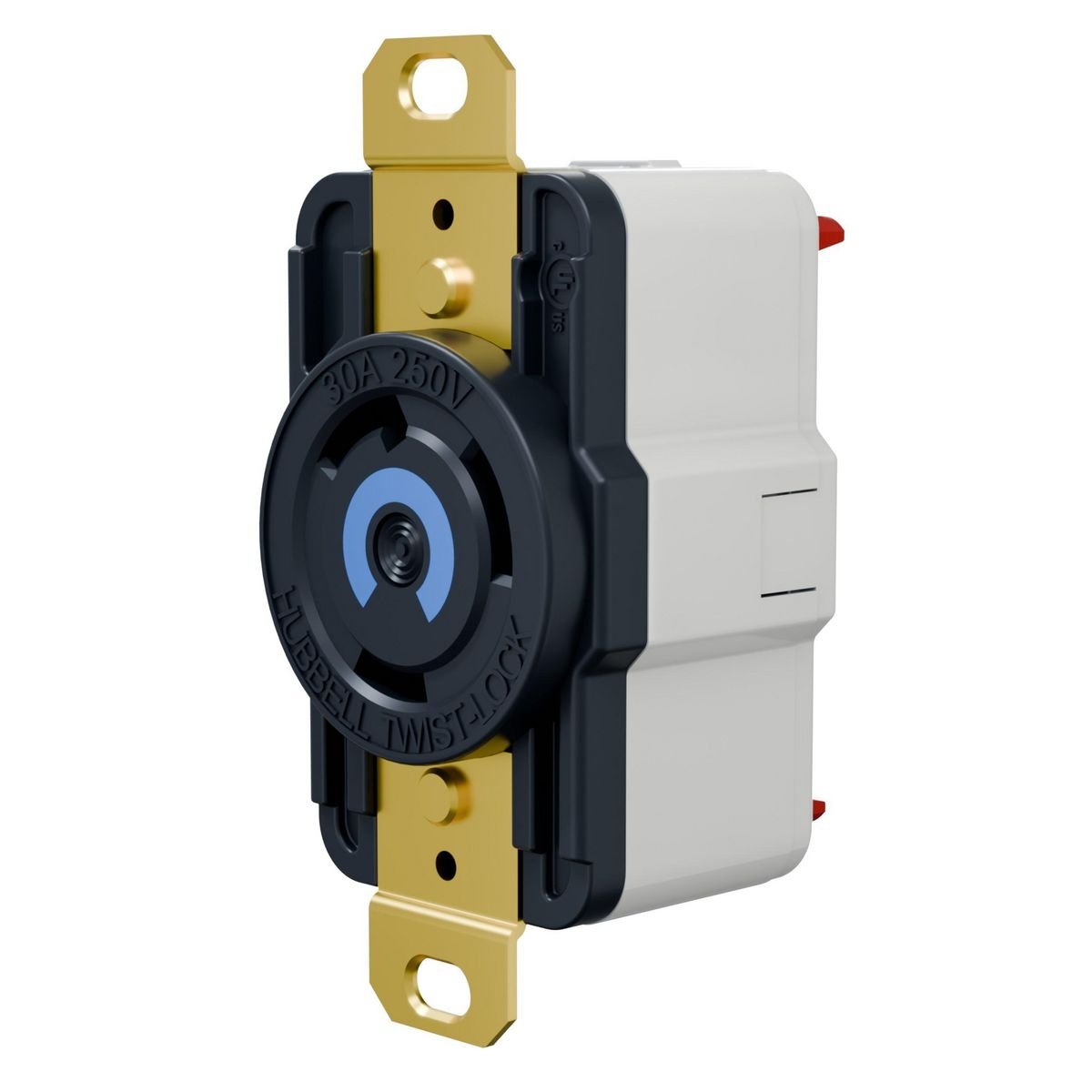

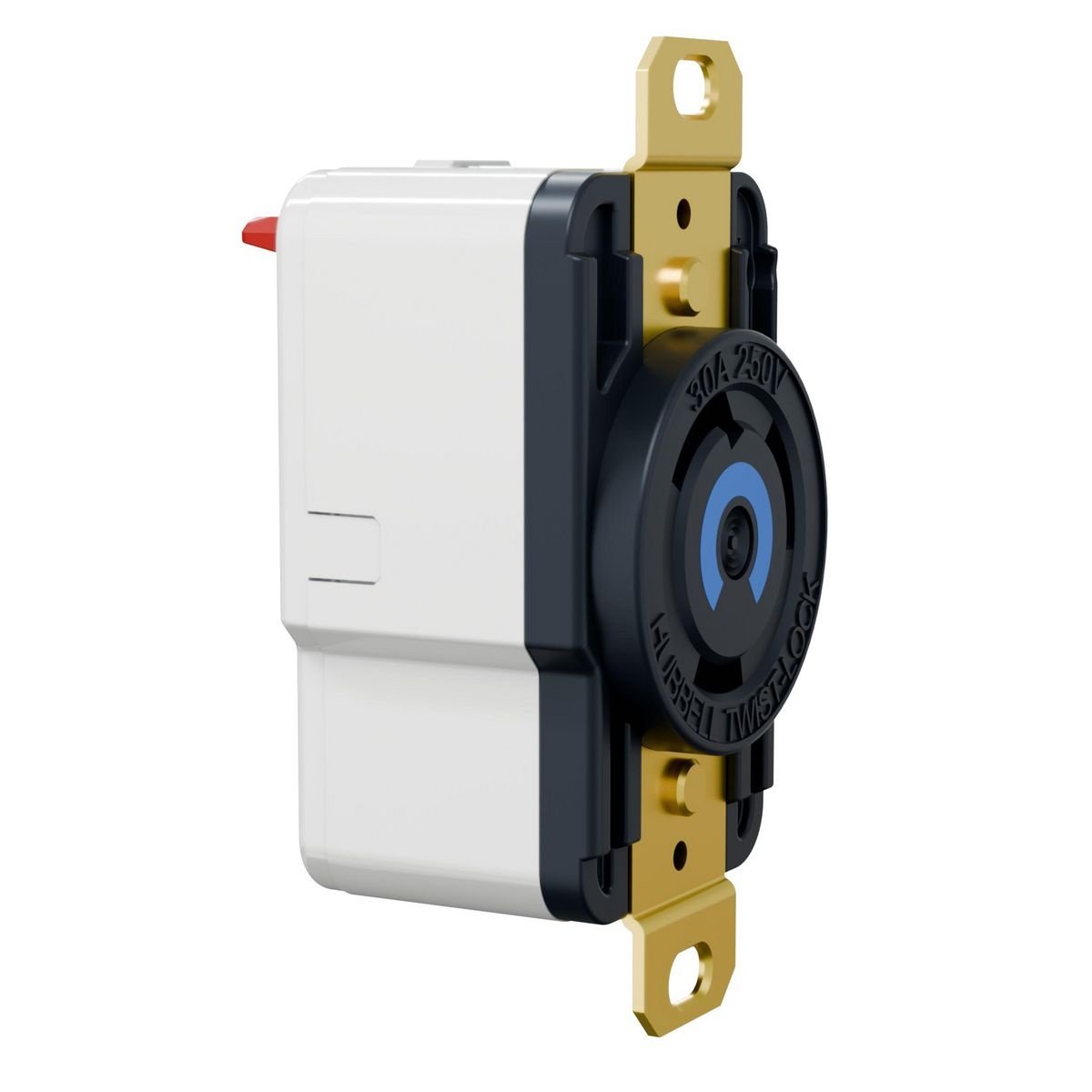

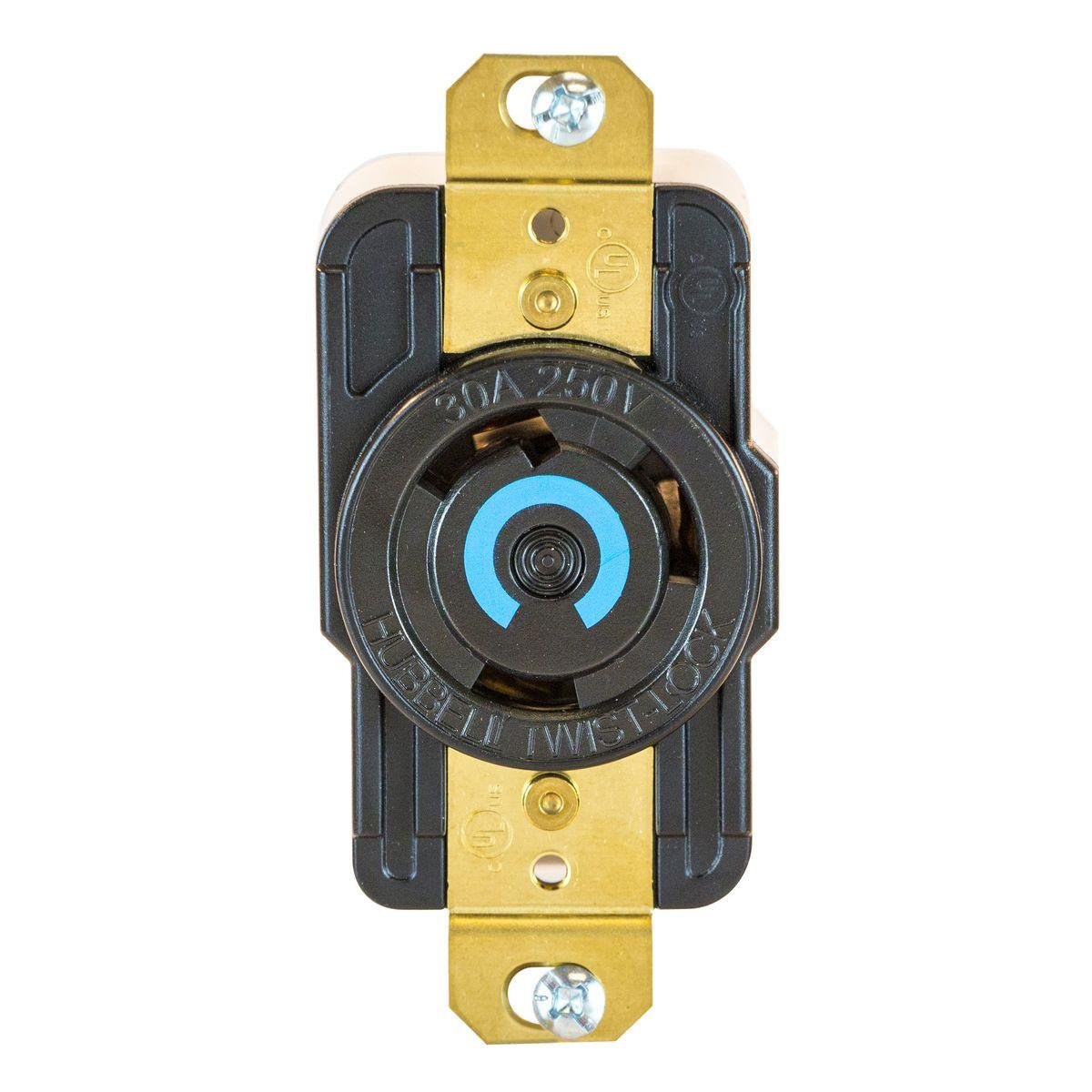

HBL2620ST - EdgeConnect™ Twist-Lock® Receptacle, 30A 250V, L6-30R, BK, with Spring Termination
Item Code: 1162198
Category
Receptacles & Surge Protectors
Manufacturer Hubbell
Manufacturer Ref HBL2620ST
selection not available, try a different combination
selection not available, try a different combination
Call for Availability
Compare
Description
Specifications
Weight
0.15lb
Height
2.4mm
Width
2.5mm
Length
4.1mm
Amperage Rating
30 A
Brand
Hubbell Wiring Device-Kellems
Category
RECEPTACLES & SURGE PROTECTORS
Color
Black
Dimensions
1.701 in W x 1.551 in D x 2.77 in H
Enclosure
IP20
Horsepower
2 hp
Material
Nylon
NEMA Rating
NEMA L6-30R
Number Of Poles
2
Number of Wires
3
Temperature Rating
-40 To 75 Deg C
Terminal Type
Spring
Type
Grounding Single Flush
Voltage Rating
250 V
