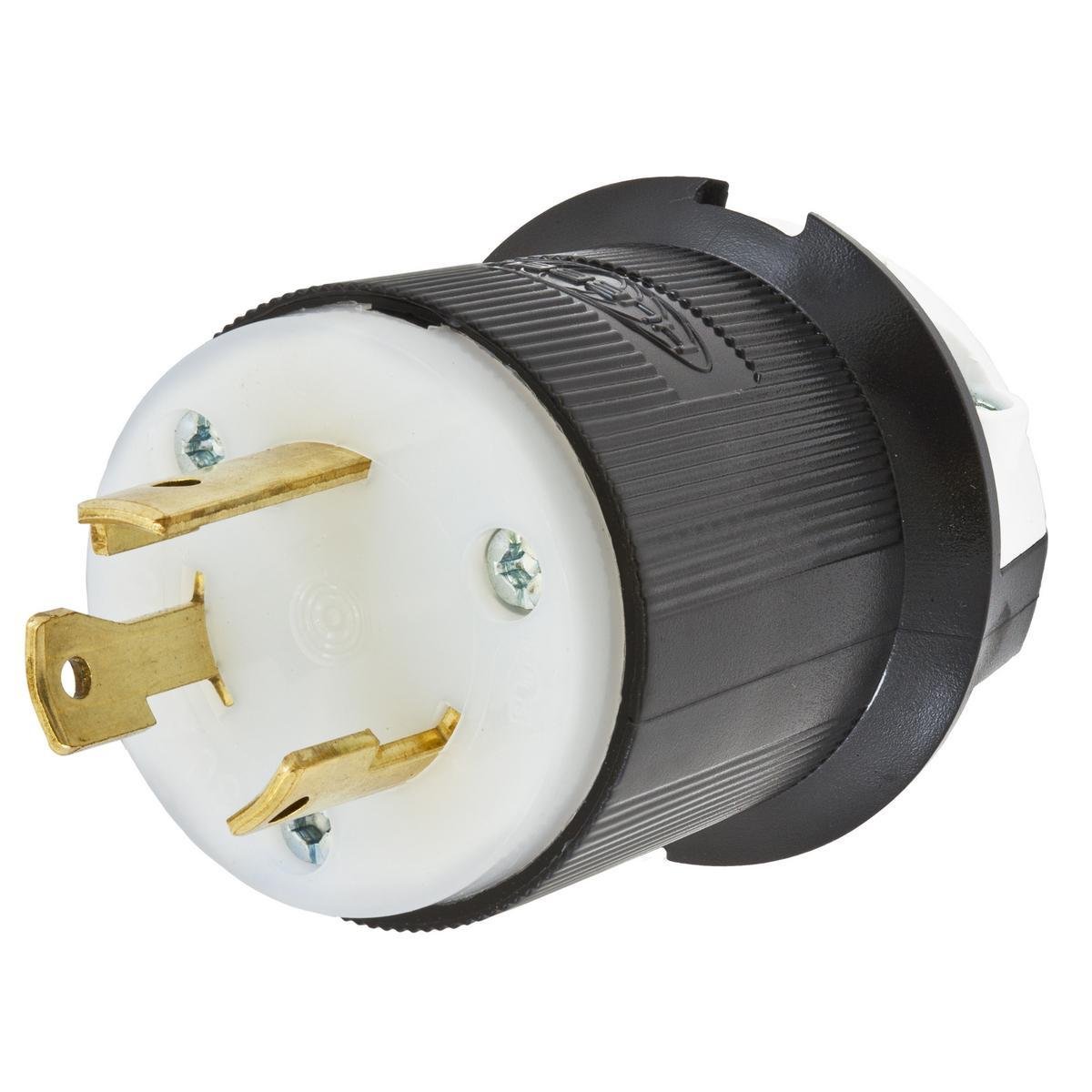

HBL2621 - Locking Devices, Twist-Lock®, Industrial, Male Plug, 30A 250V, 2-Pole 3-Wire Grounding, L6-30P, Screw Terminal, Black and White
Description
Specifications
0.3lb
9mm
2.5mm
4.2mm
Superior cord grip design protects terminations from excess strain
Power Connection Applications
Hubbell Wiring Device-Kellems
USA
US
PLUG MALE 250V 30A 2 3 BK/WHT 2HP INDL
Superior cord grip design protects terminations from excess strain
Clear, funnel shaped wire entry for ease of termination
Integral dust shield protects wiring chamber from dust or contaminants
Hubbell
9.0000
IN
4.2000
IN
1
0.3000
LB
2.5000
IN
https://youtu.be/1DnPJu3QNw0
Hubbell Wiring Device-Kellems
PLUGS, CONNECTORS, INLETS, OUTLETS
Amperage Rating
A
30
Number Of Poles
2
Number Of Wires
3
Series
HBL®
Temperature Rating
deg C
-40 To 75
Terminal Type
Screw
Type
1-Phase Cord Male Mounted Grounding
Voltage Rating
V AC
250
Color
Black/white
Cord Diameter
IN
0.36 to 0.93
Dimensions
IN
2.26 x 2.26 x 2.75
Enclosure
IP20
Grade
Industrial
HORSEPOWER
HP
2
Material
Nylon
NEMA Rating
L6-30P
