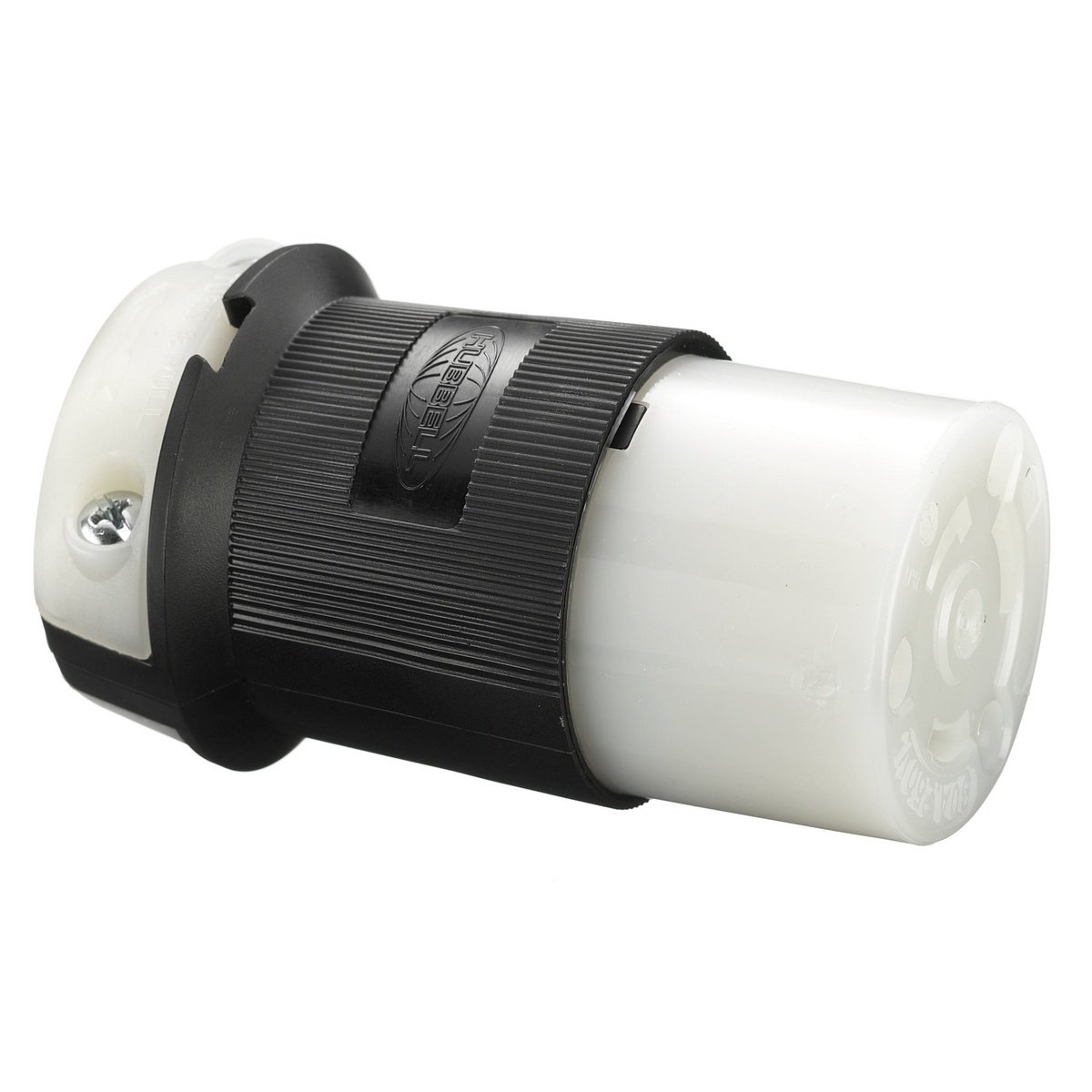

HBL2623 - Locking Devices, Twist-Lock®, Industrial, Female Connector Body, 30A 250V, 2-Pole 3-Wire Grounding, L6-30R, Screw Terminal, Black and White
Description
Specifications
0.35lb
9mm
2.5mm
4.3mm
Integral dust shield protects wiring chamber from dust or contaminants
Heavy Duty Industrial Applications and Indoor Dry Environment
Hubbell Wiring Device-Kellems
USA
US
LKG CONN 250V AC 30A 2 3 BLACK/WHITE 2HP
Integral dust shield protects wiring chamber from dust or contaminants
Superior cord grip design protects terminations from excess strain
Clear, funnel shaped wire entry for ease of termination
Hubbell
9.0000
IN
4.3000
IN
1
0.3500
LB
2.5000
IN
https://youtu.be/1DnPJu3QNw0
Hubbell Wiring Device-Kellems
PLUGS, CONNECTORS, INLETS, OUTLETS
Amperage Rating
A
30
Number Of Poles
2
Number Of Wires
3
Series
HBL®
Temperature Rating
deg C
-40 To 75
Terminal Type
Pressure Screw
Type
Female Grounding Standard Cord Mount
Voltage Rating
V AC
250
Color
Black/white
Cord Diameter
IN
0.36 to 0.93
Dimensions
IN
2.26 x 2.26 x 3.86
Enclosure
IP20
Grade
Industrial
HORSEPOWER
HP
2
Material
Nylon
NEMA Rating
L6-30R
