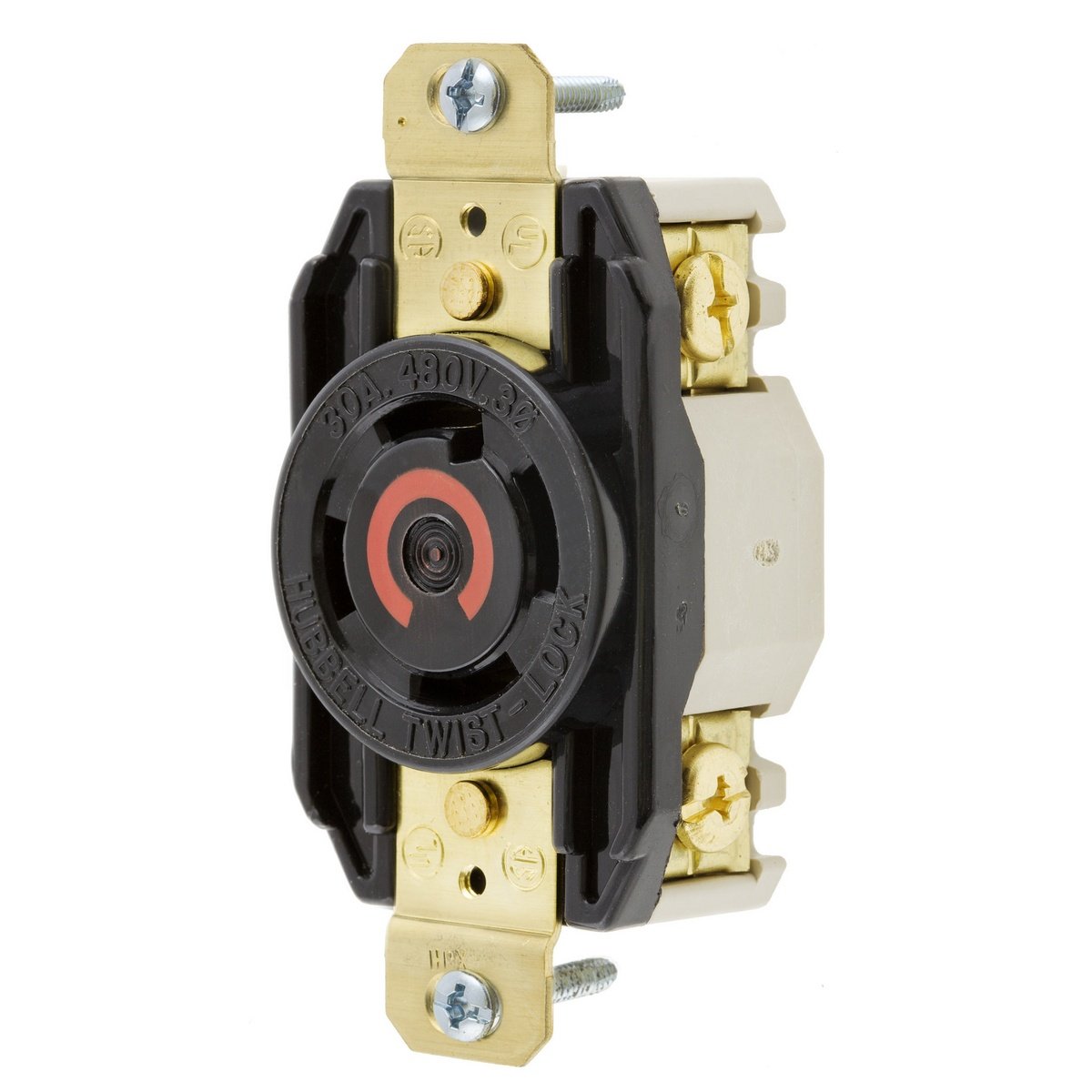

HBL2730 - Locking Devices, Twist-Lock®, Industrial, Flush Receptacle, 30A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, L16-30R, Screw Terminal, Black
Description
Specifications
0.3lb
1.66mm
1.9mm
4.2mm
Heavy Duty Industrial Applications
Hubbell Wiring Device-Kellems
USA
US
RECEPTACLE LKG 480VAC 30A 3 4 BK 10HP
High-impact, abuse-resistant nylon face
Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
Face color coding by voltage facilitates locating and mating of proper devices
All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
Hubbell
1.6600
IN
4.2000
IN
1
0.3000
LB
1.9000
IN
https://youtu.be/1DnPJu3QNw0
Hubbell Wiring Device-Kellems
RECEPTACLES & SURGE PROTECTORS
Amperage Rating
A
30
Number Of Wires
4
Temperature Rating
deg C
-40 To 75
Terminal Type
Screw
Type
3-Phase Grounding Standard Screw Mount
Voltage Rating
V AC
480
Color
Black
Dimensions
IN
3.28 x 1.7 x 1.31
Enclosure
IP20
Grade
Industrial
HORSEPOWER
HP
10
Material
Nylon
NEMA Rating
L16-30R/WD1/WD5
Number Of Poles
3
