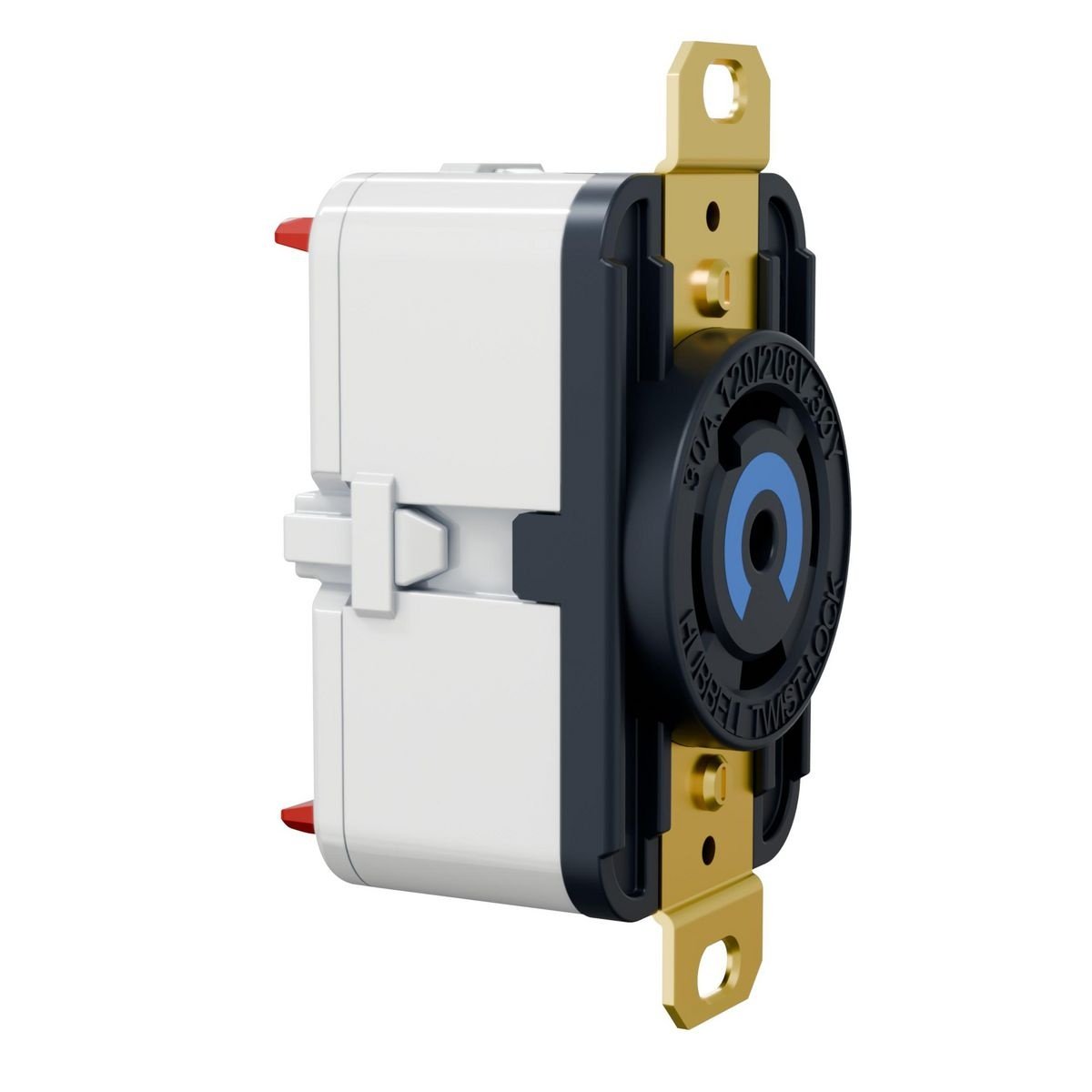

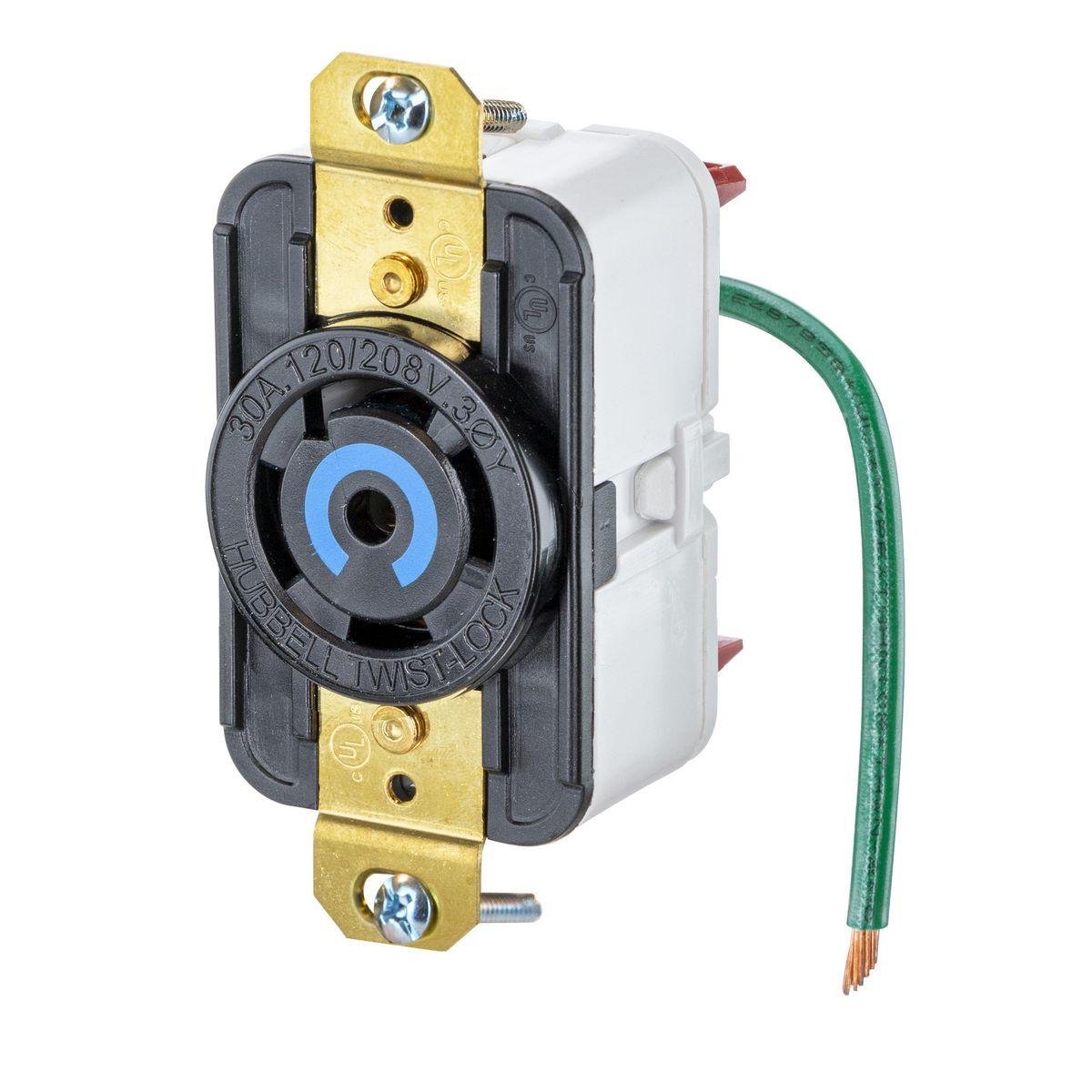

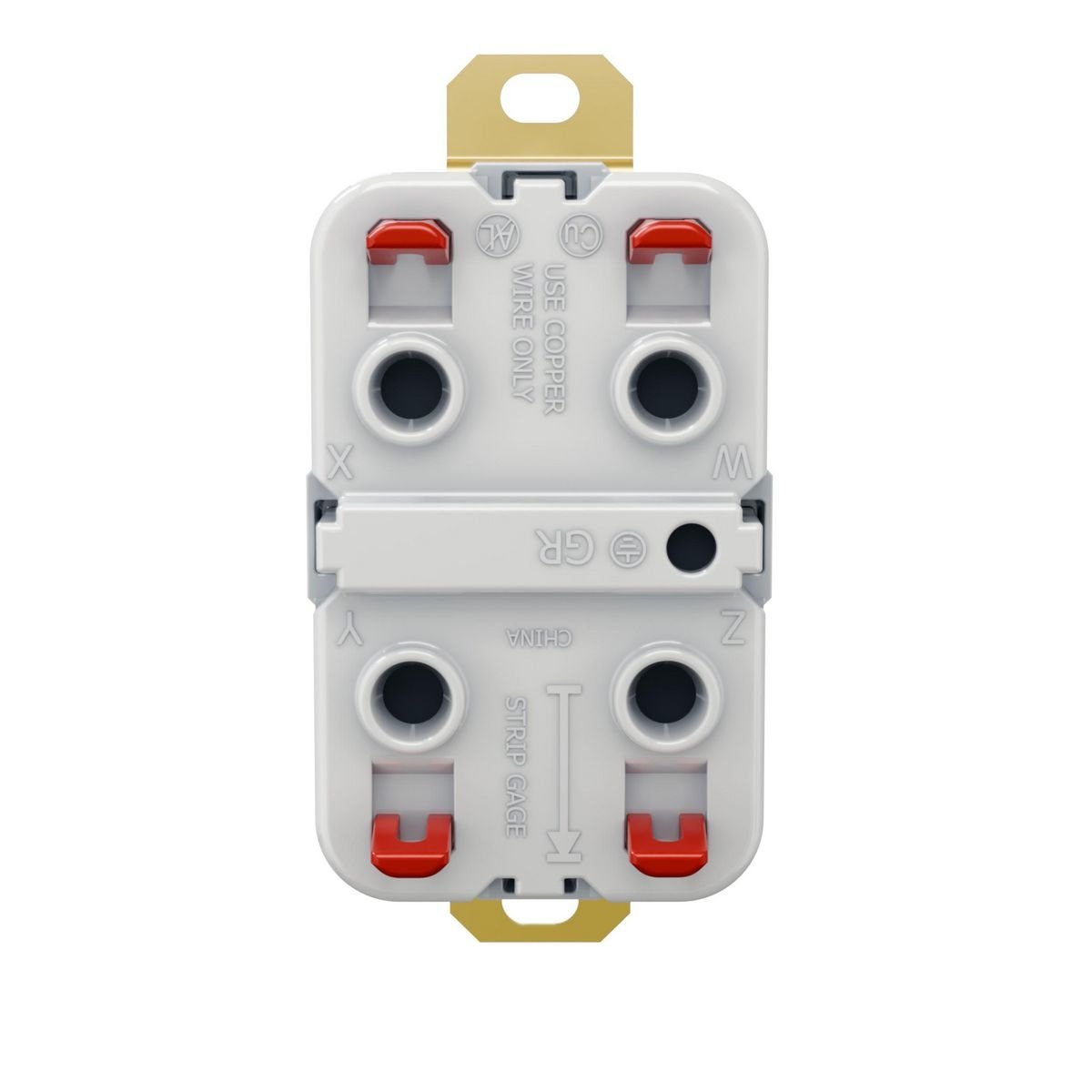

HBL2810ST - EdgeConnect™ Twist-Lock® Receptacle, 30A 3P 120/208V, L21-30R, BK, with Spring Termination
Description
Specifications
0.14lb
1.47mm
2.5mm
4mm
No need for screwdriver and torque wrench
Hubbell Wiring Device-Kellems
USA
CN
RECEPTACLE LKG 120/208YVAC 30A 4 5 BK
No need for screwdriver and torque wrench
Spring Termination eliminates strand relaxation
High-impact, abuse-resistant nylon face
Face color coding by voltage facilitates locating and mating of proper devices
Hubbell
IN
4.0000
IN
1
0.1400
LB
2.5000
IN
https://players.brightcove.net/2519281010001/S1rfC16yx_default/index.html?videoId=6312863964112
Hubbell Wiring Device-Kellems
RECEPTACLES & SURGE PROTECTORS
Amperage Rating
A
30
Terminal Type
Back Wire
Type
3-Phase Single Flush
Voltage Rating
V AC
120/208Y
Color
Black
Dimensions
3.28 in L x 1.7 in W x 1.468 in H
Enclosure
IP20
Material
Nylon
NEMA Rating
NEMA L21-30R
Number Of Poles
4
Number Of Wires
5
Temperature Rating
deg C
-40 To 75
