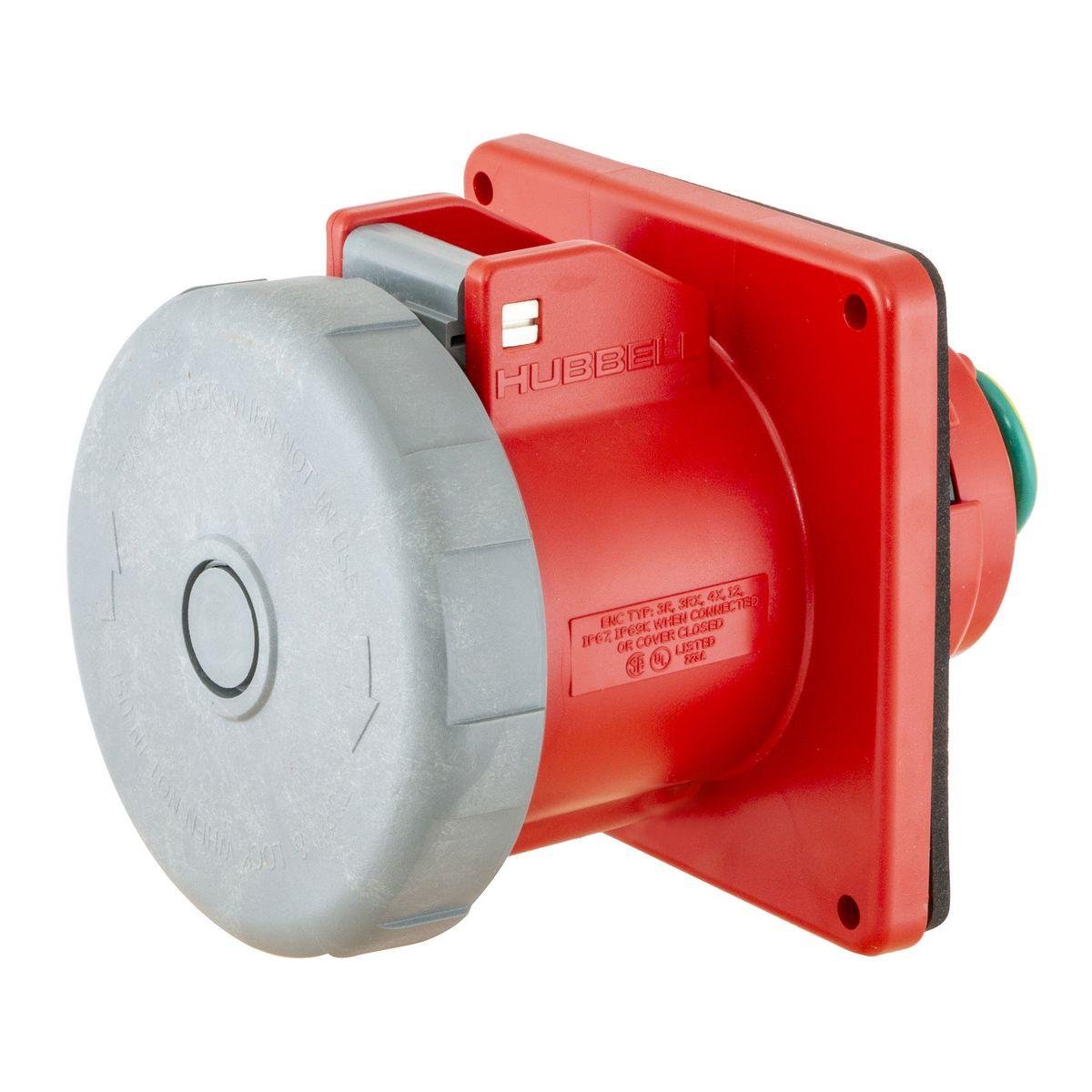

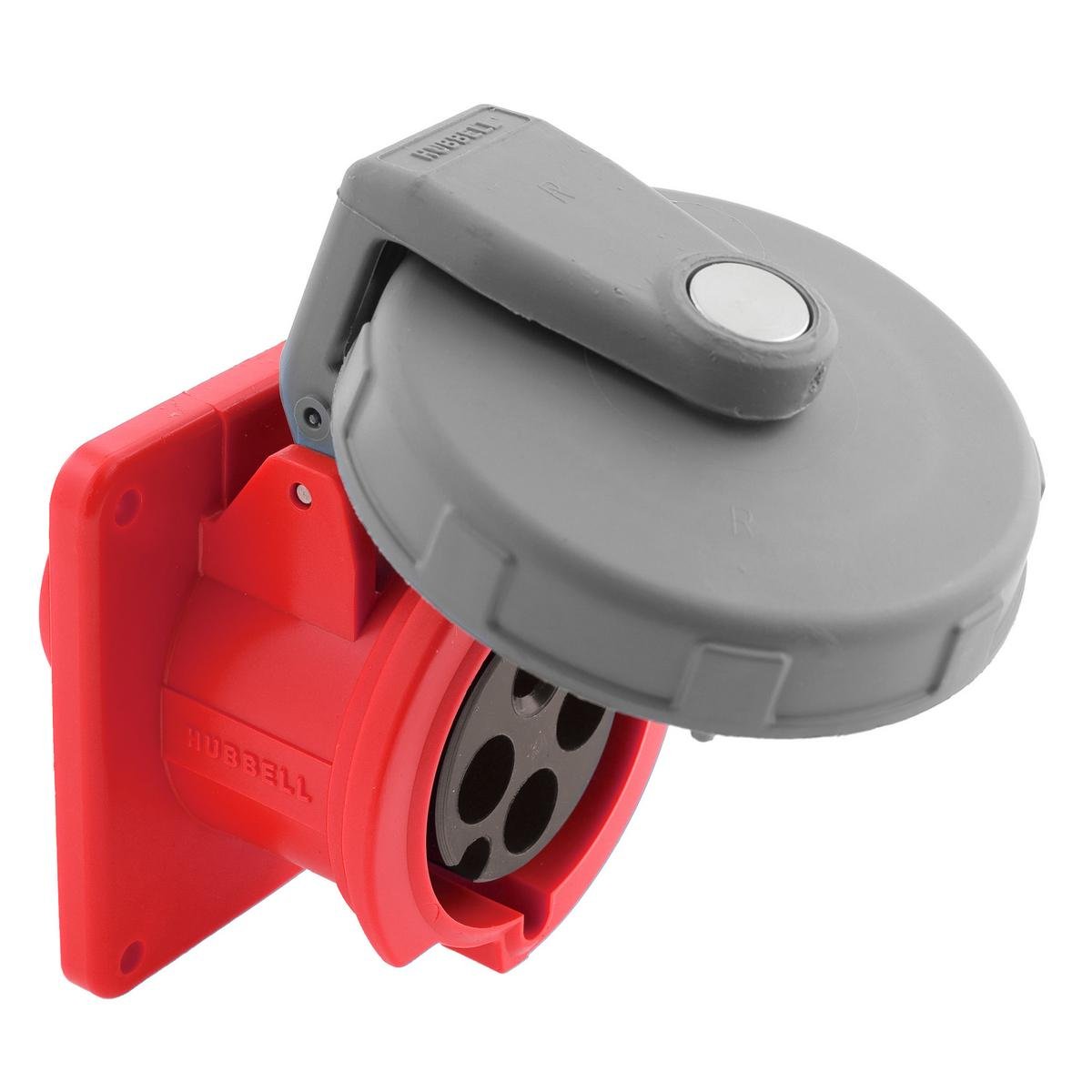

HBL4100R7W - Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female Receptacle, 100A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, Terminal Screws, Red, Watertight
selection not available, try a different combination
selection not available, try a different combination
Call for Availability
Compare
Description
Specifications
Weight
1.69lb
Height
5.75mm
Width
6.5mm
Length
7.2mm
AD All Features
Self-closing gasketed cover
AD Application
High Ampacity Watertight Connection Applications
AD Brand (Description)
Hubbell Wiring Device-Kellems
AD Country
USA
AD Country Of Origin
US
AD Invoice Description
RECEPTACLE SLV AND PIN 480VAC 100A 3 4 R
AD Item Features 01
Self-closing gasketed cover
AD Item Features 02
Color coded housings for easy identification
AD Item Features 03
Super tough insulated non-metallic housing
AD Manufacturer (Description)
Hubbell
AD Package Height
5.7500
AD Package Height UOM
IN
AD Package Length
7.2000
AD Package Length UOM
IN
AD Package Quantity
1
AD Package Weight
1.6900
AD Package Weight UOM
LB
AD Package Width
6.5000
AD Package Width UOM
IN
Brand
Hubbell Wiring Device-Kellems
Category
PIN & SLEEVE DEVICES
Spec 1 Attribute
Amperage Rating
Spec 1 Attribute UOM
A
Spec 1 Attribute Value
100
Spec 10 Attribute
Temperature Rating
Spec 10 Attribute UOM
deg C
Spec 10 Attribute Value
-40 To 75
Spec 11 Attribute
Terminal Type
Spec 11 Attribute Value
Pressure Screw
Spec 12 Attribute
Type
Spec 12 Attribute Value
3-Phase Flanged Grounding Non-NEMA Single Standard Watertight Screw Mount
Spec 13 Attribute
Voltage Rating
Spec 13 Attribute UOM
V AC
Spec 13 Attribute Value
480
Spec 2 Attribute
Color
Spec 2 Attribute Value
Red
Spec 3 Attribute
Dimensions
Spec 3 Attribute Value
5-1/2 in L x 5-1/2 in W
Spec 4 Attribute
Enclosure
Spec 4 Attribute Value
IP67
Spec 5 Attribute
Grade
Spec 5 Attribute Value
Industrial
Spec 6 Attribute
HORSEPOWER
Spec 6 Attribute UOM
HP
Spec 6 Attribute Value
30
Spec 7 Attribute
Material
Spec 7 Attribute Value
Thermoplastic
Spec 8 Attribute
Number Of Poles
Spec 8 Attribute Value
3
Spec 9 Attribute
Number Of Wires
Spec 9 Attribute Value
4
