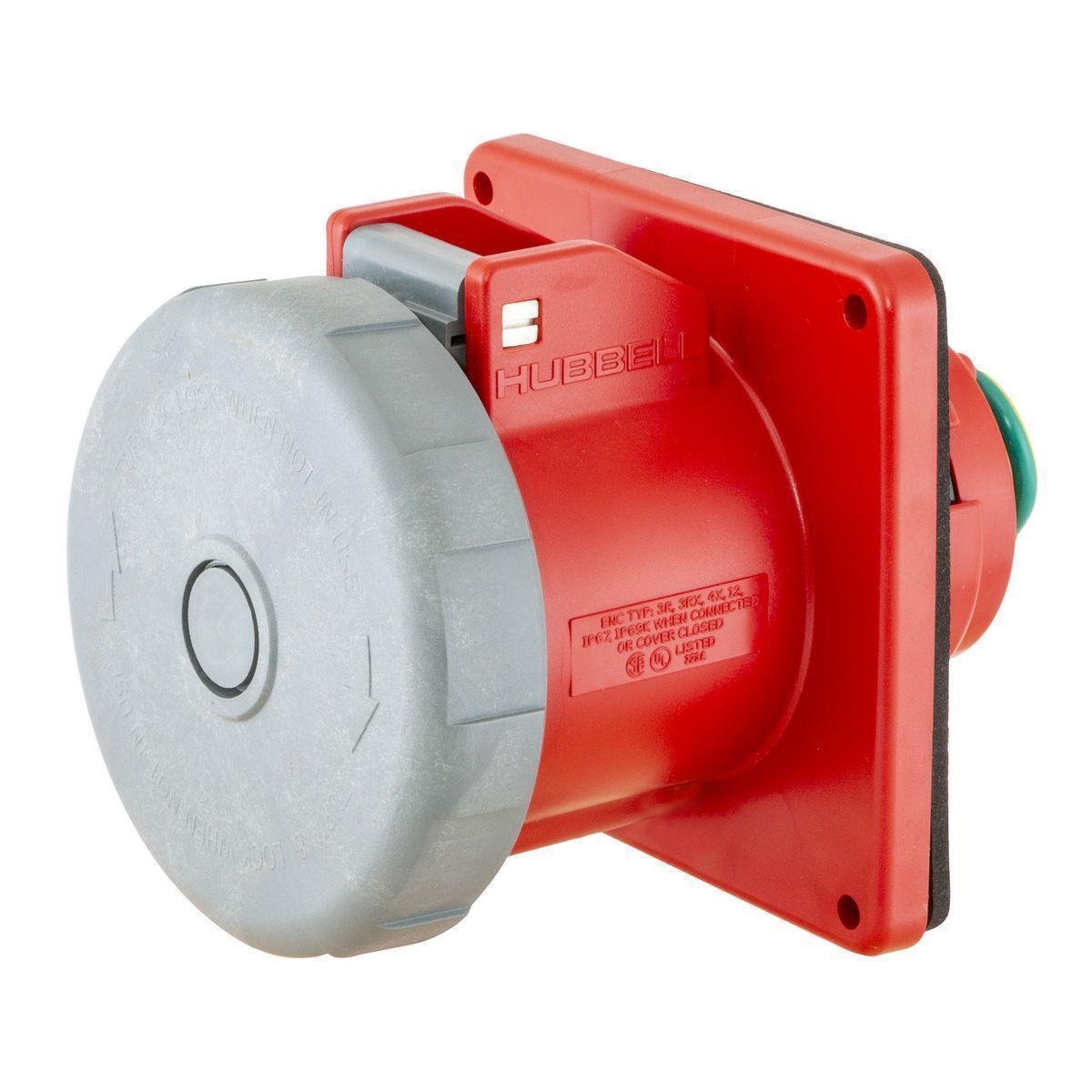

HBL460R7W - Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Receptacle, 60A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, Terminal Screws, Red, Watertight
selection not available, try a different combination
selection not available, try a different combination
Call for Availability
Compare
Description
Specifications
Weight
1.04lb
Height
4.62mm
Width
5.6mm
Length
6.4mm
AD All Features
Super tough insulated non-metallic housing
AD Application
High Ampacity Watertight Connection Applications
AD Brand (Description)
Hubbell Wiring Device-Kellems
AD Country
USA
AD Country Of Origin
US
AD Invoice Description
PIN & SLV RCPT 480V AC 60A 3 4 R 10HP
AD Item Features 01
Super tough insulated non-metallic housing
AD Item Features 02
Self-closing gasketed cover
AD Item Features 03
Sequential contact engagement to prevent a momentary over-voltage
AD Item Features 04
Color coded housings for easy identification
AD Manufacturer (Description)
Hubbell
AD Package Height
4.6200
AD Package Height UOM
IN
AD Package Length
6.4000
AD Package Length UOM
IN
AD Package Quantity
1
AD Package Weight
1.0400
AD Package Weight UOM
LB
AD Package Width
5.6000
AD Package Width UOM
IN
Brand
Hubbell Wiring Device-Kellems
Category
PIN & SLEEVE DEVICES
Spec 1 Attribute
Amperage Rating
Spec 1 Attribute UOM
A
Spec 1 Attribute Value
60
Spec 10 Attribute
Temperature Rating
Spec 10 Attribute UOM
deg C
Spec 10 Attribute Value
-40 To 75
Spec 11 Attribute
Terminal Type
Spec 11 Attribute Value
Pressure Screw
Spec 12 Attribute
Type
Spec 12 Attribute Value
3-Phase Female Grounding Watertight Screw Mount
Spec 13 Attribute
Voltage Rating
Spec 13 Attribute UOM
V AC
Spec 13 Attribute Value
480
Spec 2 Attribute
Color
Spec 2 Attribute Value
Red
Spec 3 Attribute
Dimensions
Spec 3 Attribute Value
4.5 in W x 4.07 in D x 5.1 in H
Spec 4 Attribute
Enclosure
Spec 4 Attribute Value
IP67
Spec 5 Attribute
Grade
Spec 5 Attribute Value
Industrial
Spec 6 Attribute
HORSEPOWER
Spec 6 Attribute UOM
HP
Spec 6 Attribute Value
10
Spec 7 Attribute
Material
Spec 7 Attribute Value
Thermoplastic
Spec 8 Attribute
Number Of Poles
Spec 8 Attribute Value
3
Spec 9 Attribute
Number Of Wires
Spec 9 Attribute Value
4
