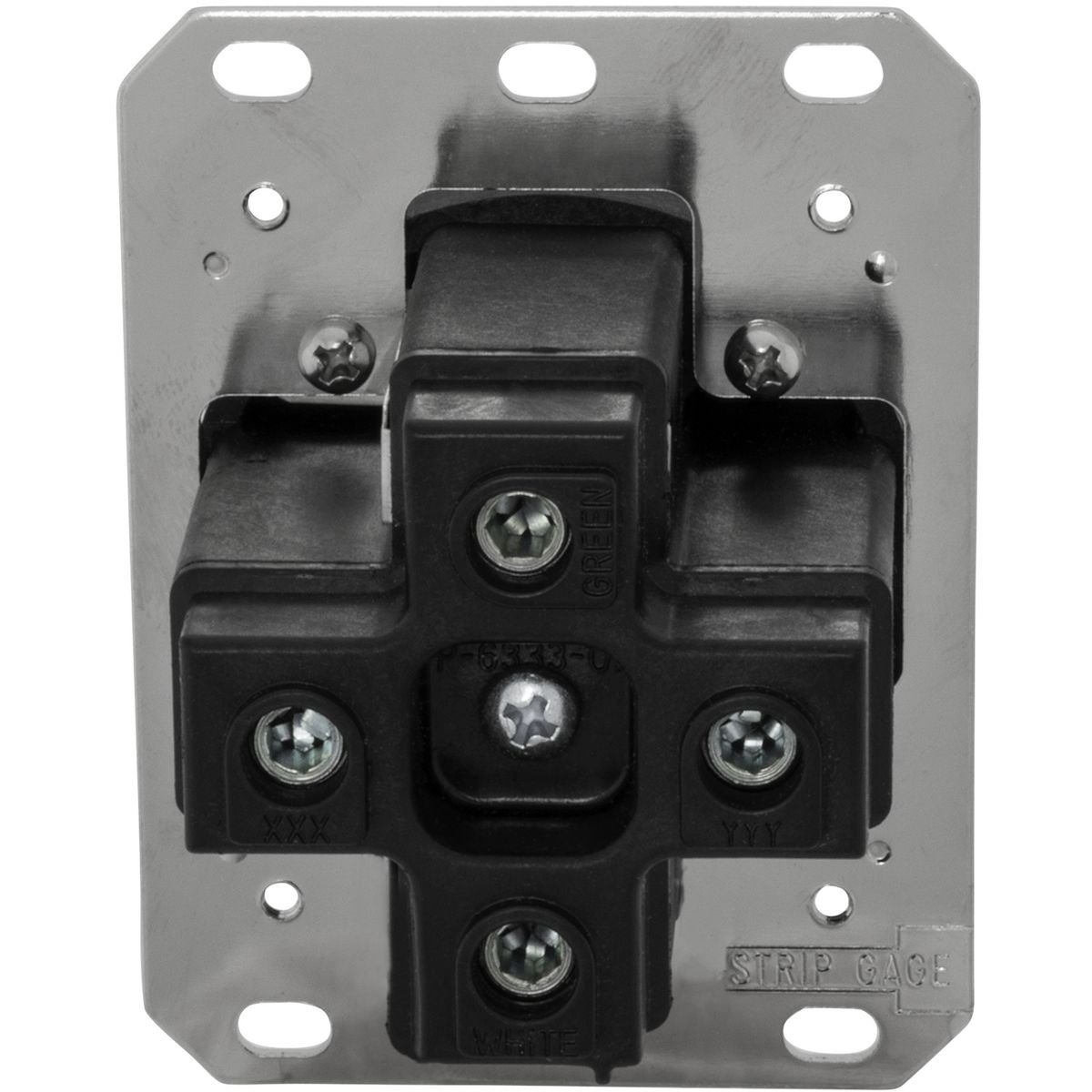

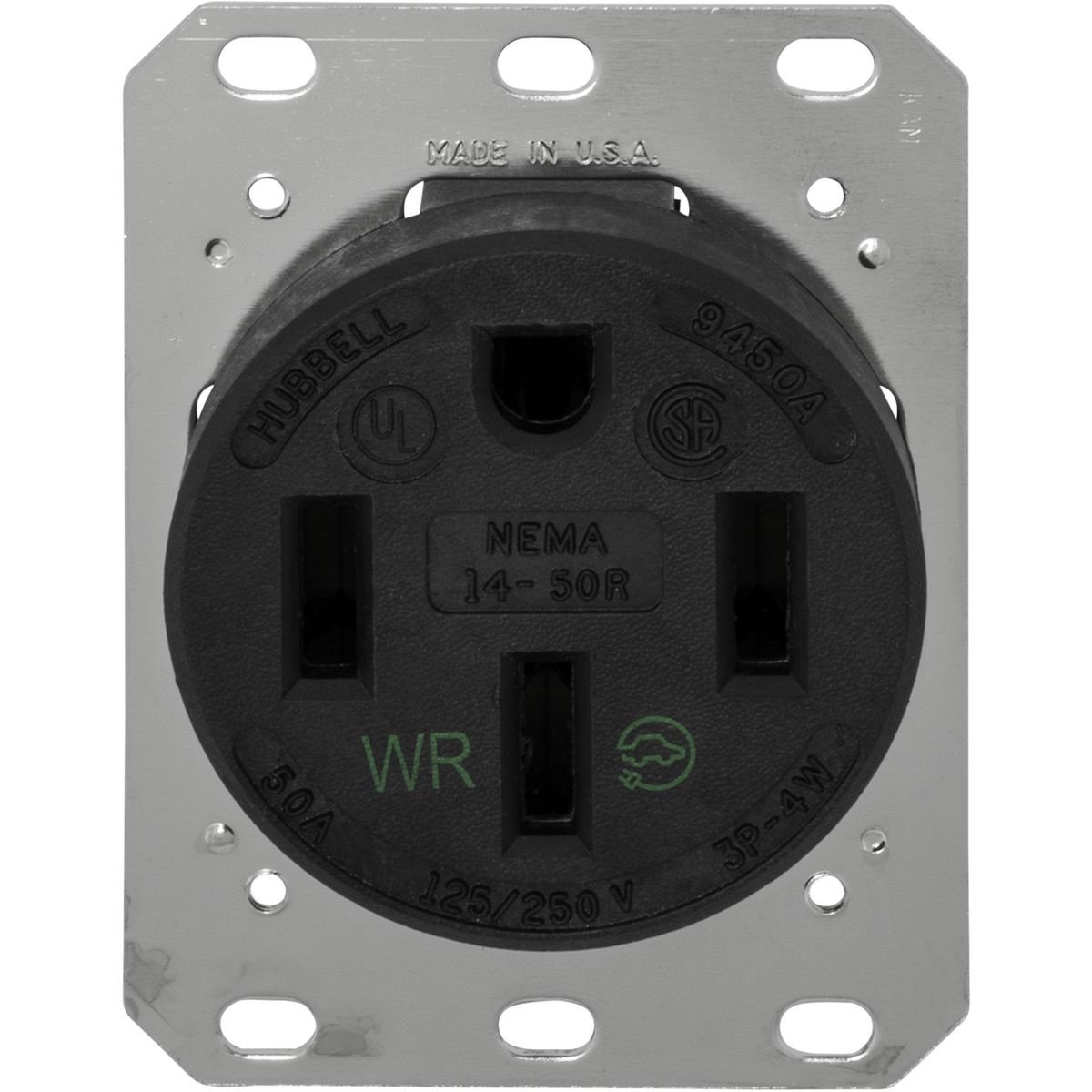

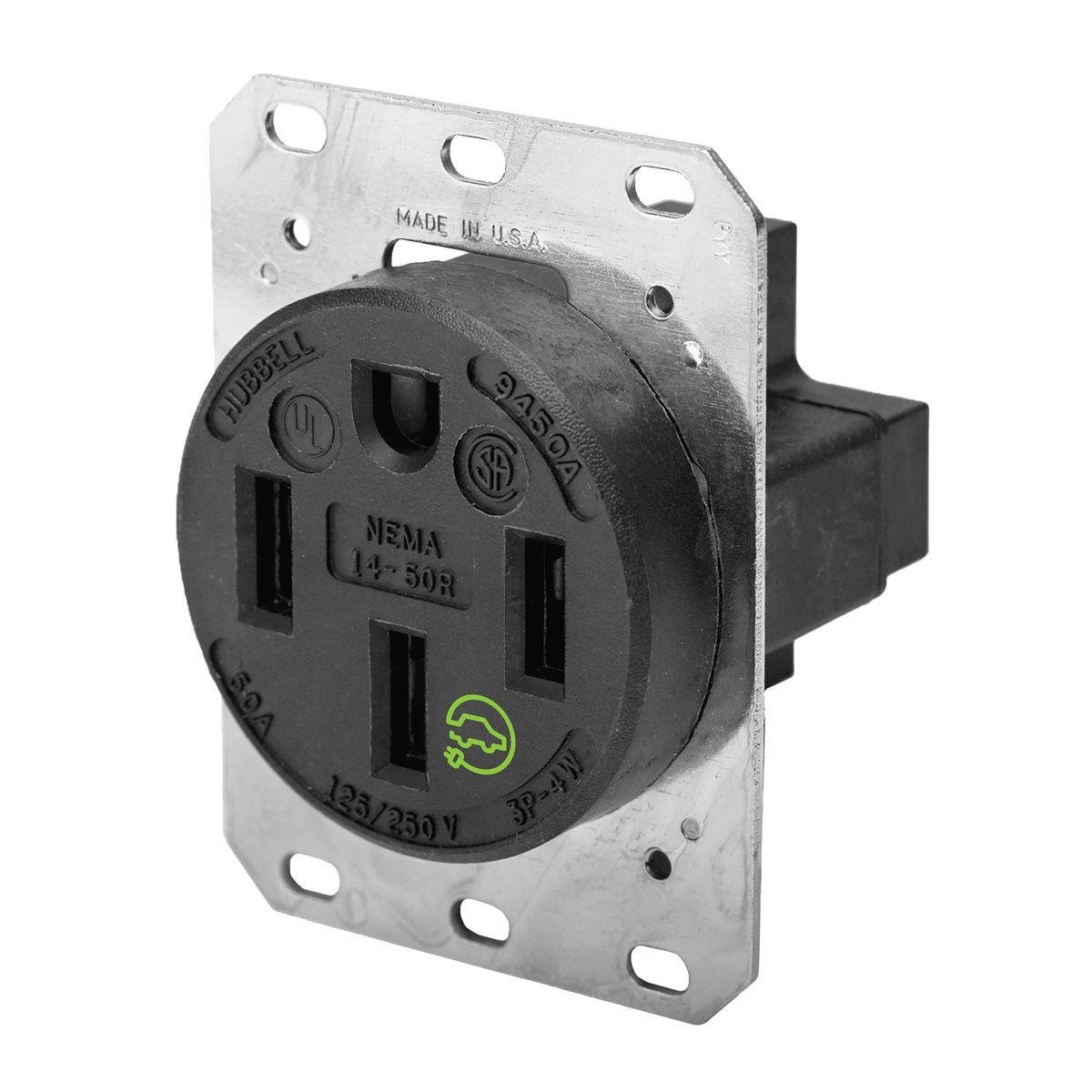

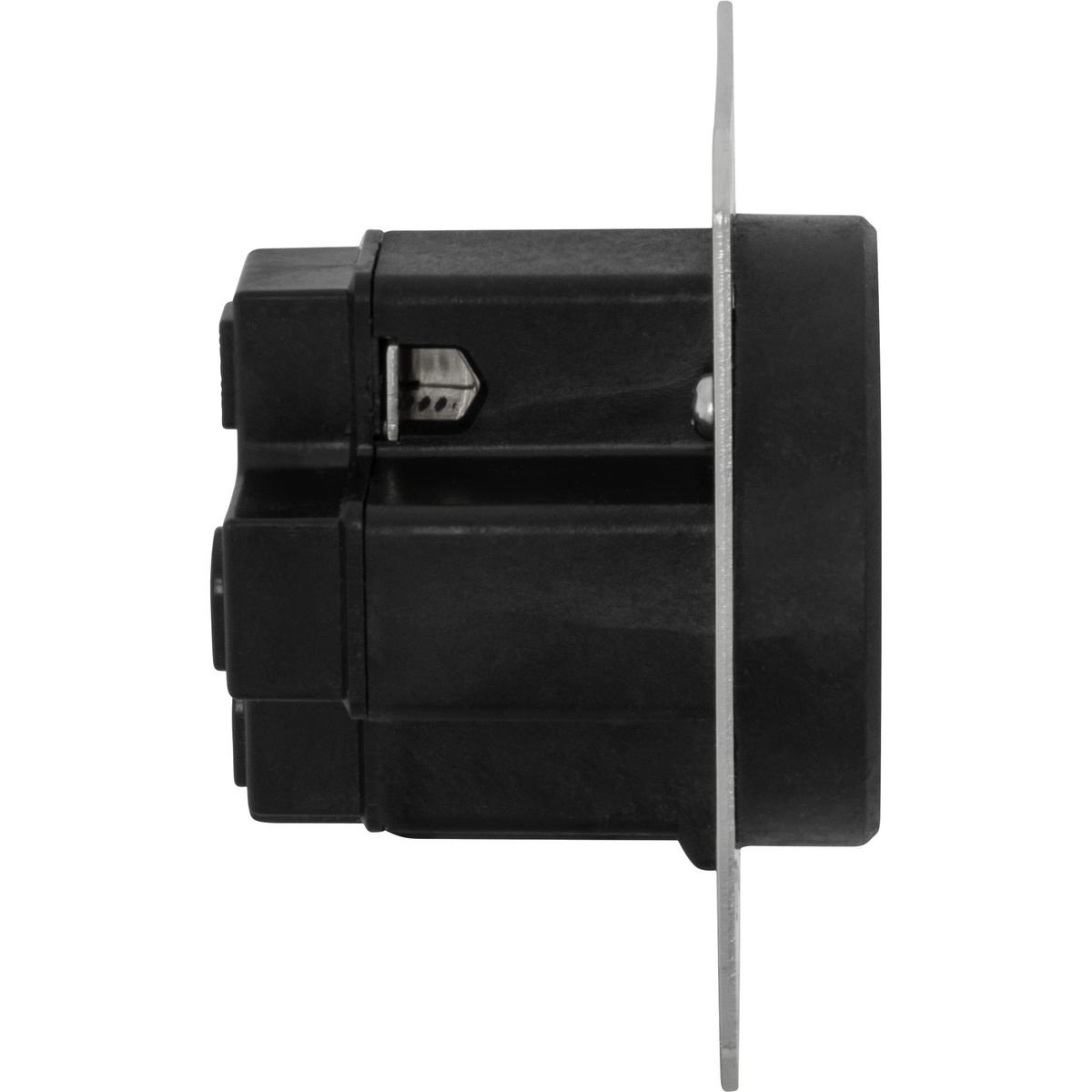

HBL9450A - Straight Blade Devices, 50A, 125/250V, 3 Pole, 4 Wire Grounding, HBL9450A
Description
Specifications
0.2lb
2.68mm
3.2mm
3.9mm
Dry Location and Indoor Applications
Hubbell Wiring Device-Kellems
USA
US
STR BL RCPT 125/250V AC 50A 3 4 BK 3HP
Secure Connection, Terminal box shields against loose wires and external damage with a durable enclosure
With a 50A, 125/250V rating, it ensures high-power, faster charging times, promoting safety and efficiency
It incorporates features and specifications that are optimized for the safe and efficient charging of electric vehicles
Tailored for EV Charging, This receptacle is purpose-built to cater to the specific needs of EV charging
Features a clamping mechanism for tight, efficient wire termination, reducing power loss or overheating risks
It is engineered using high quality materials that can withstand demanding environments, ensuring long-lasting performance and reliability
Industrial-Grade Construction, This EV receptacle boasts a robust and durable construction
Contact Force and Durability, Thick wall terminal box offers 50 Percent greater contact force for secure connections, minimizing power interruptions
Hubbell
2.6800
IN
3.9000
IN
1
0.2000
LB
3.2000
IN
https://youtu.be/1DnPJu3QNw0
Hubbell Wiring Device-Kellems
RECEPTACLES & SURGE PROTECTORS
Amperage Rating
A
50
Number Of Wires
4
Series
HBL®
Temperature Rating
deg C
-40 To 75
Terminal Type
Back and Side Wire/Screw
Type
1-Phase Grounding Heavy Duty Standard Single Screw Mount
Voltage Rating
V AC
125/250
Color
Black
Dimensions
IN
3.28 x 2.75 x 2.44
Enclosure
IP20
Grade
Industrial
HORSEPOWER
HP
3
Material
Thermoplastic/Composite
NEMA Rating
14-50R
Number Of Poles
3
