30-1032 - In-Sure® Push-In Wire Connector, Model 32 2-Port Red, Box of 100

Category Fixture Connectors (Wire Nuts, Etc.)

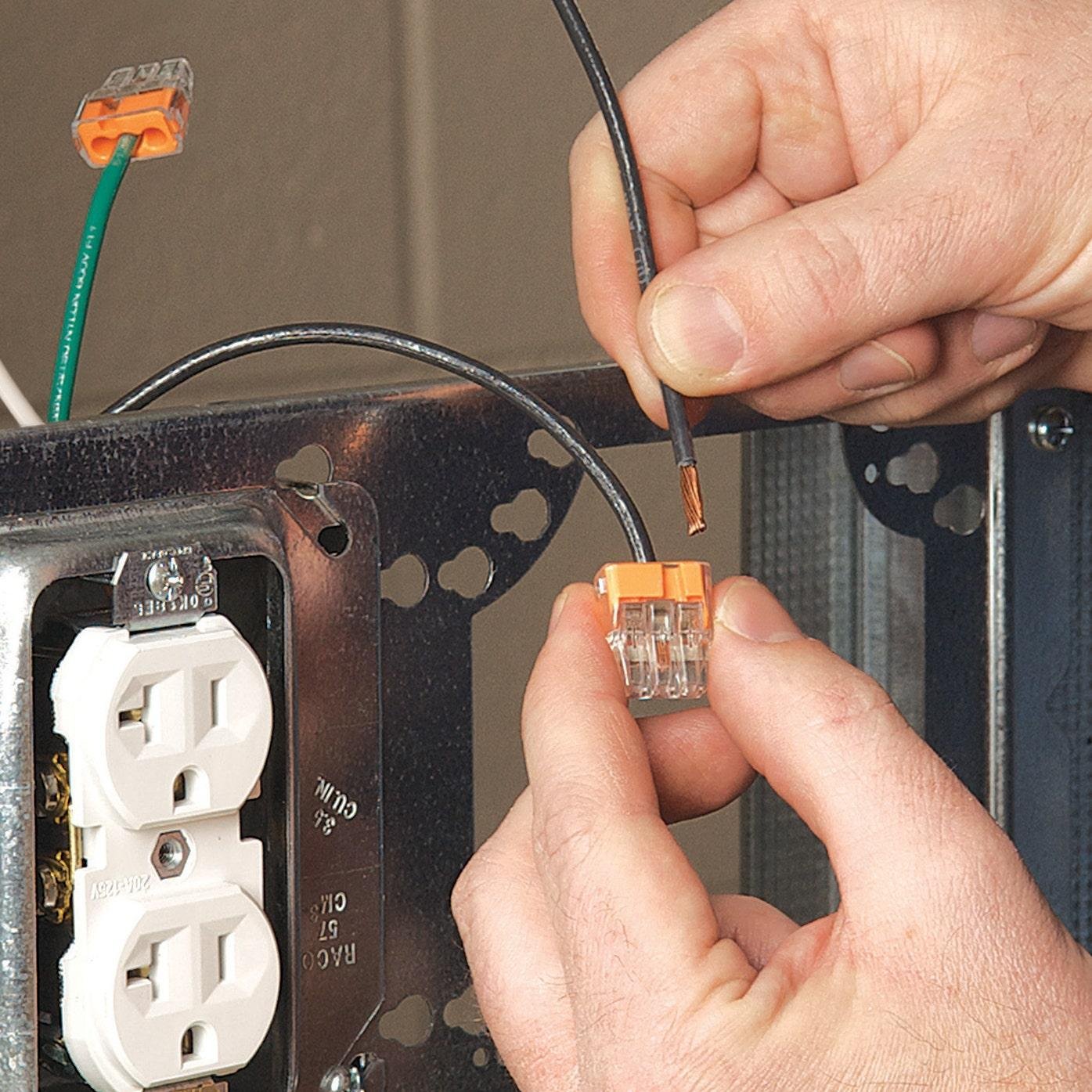

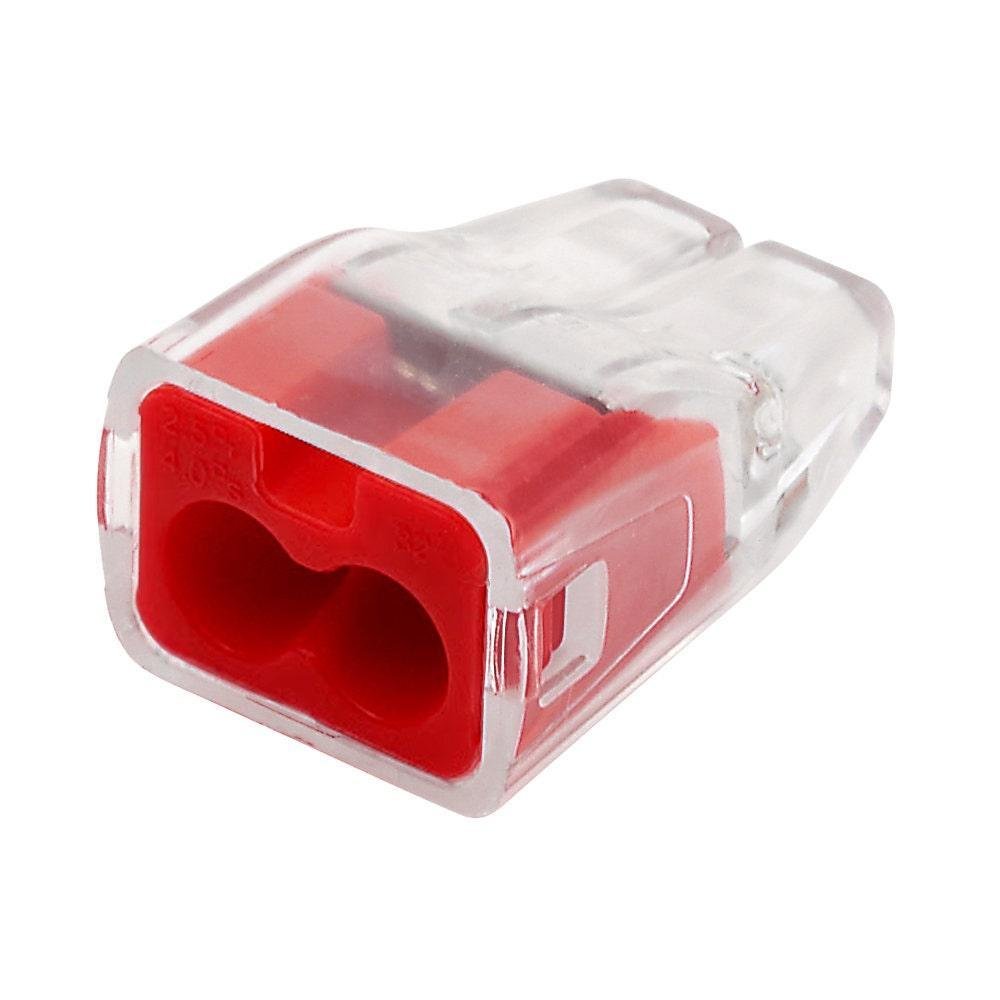

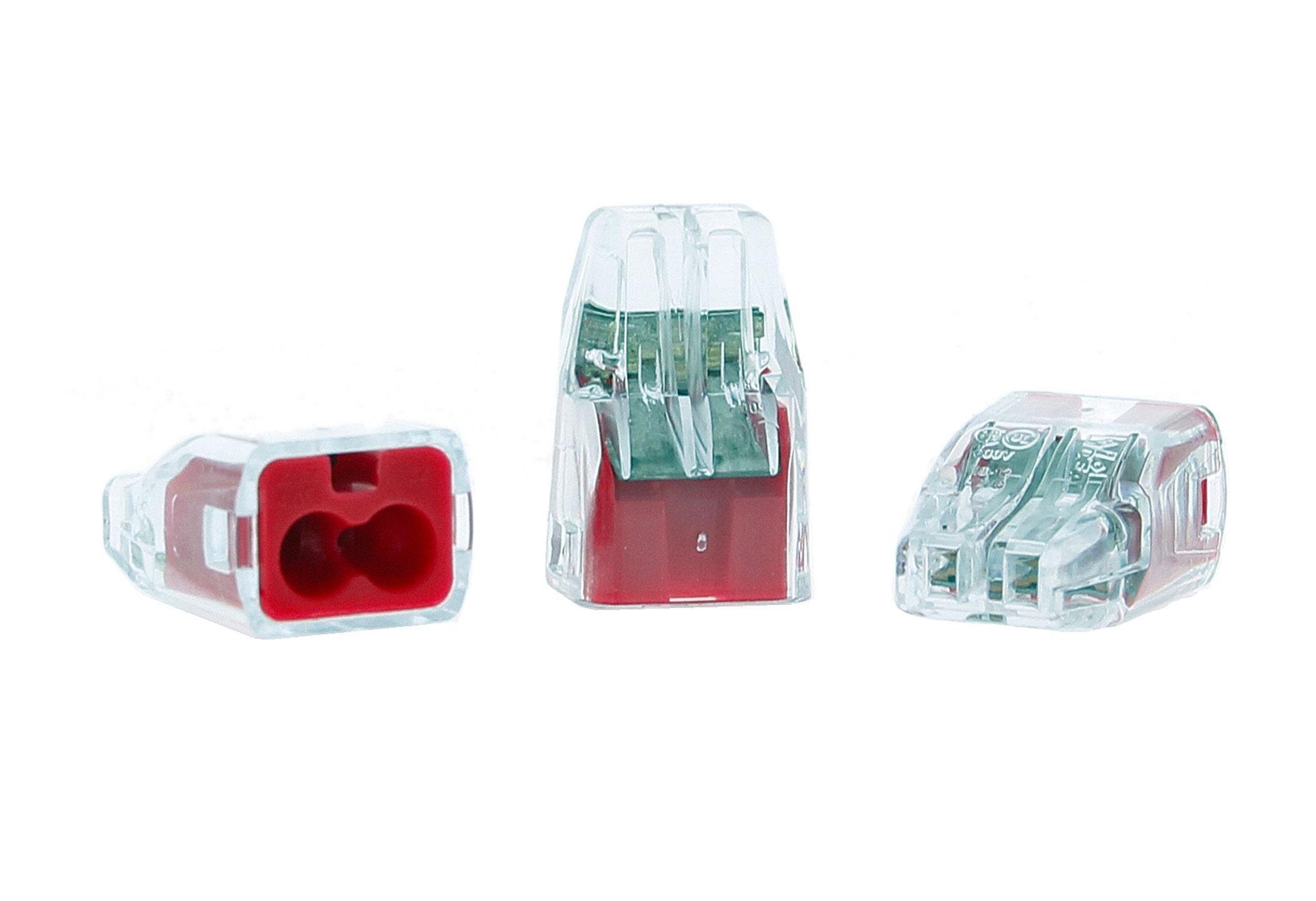

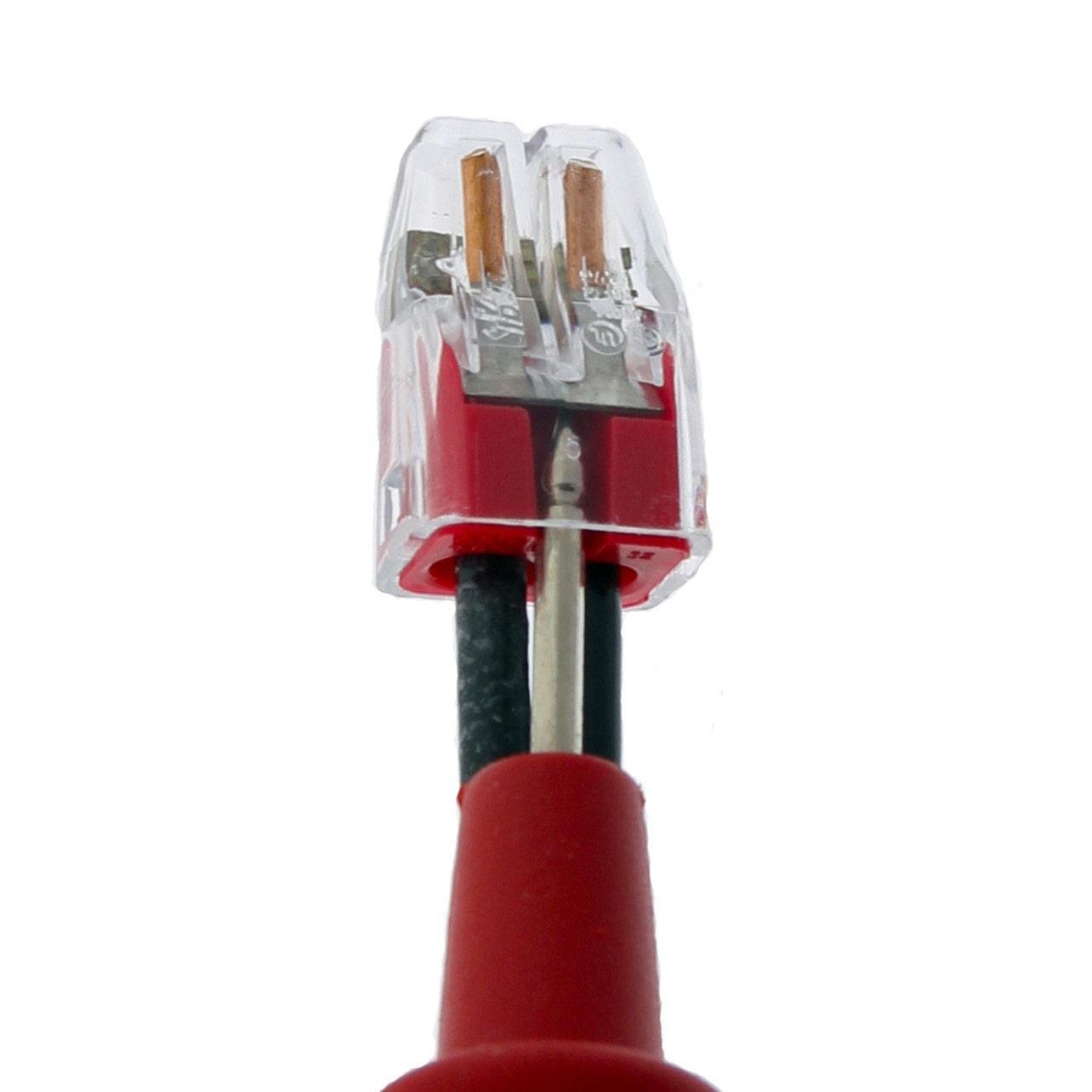

Picture of 30-1032 - In-Sure® Push-In Wire Connector, Model 32 2-Port Red, Box of 100
Ideal

30-1032 - In-Sure® Push-In Wire Connector, Model 32 2-Port Red, Box of 100

Item Code: 647679
Category Fixture Connectors (Wire Nuts, Etc.)
Manufacturer Ideal Industries
Manufacturer Ref 30-1032
Minimum order quantity 100

Owners User Manual
RoHS
Call for Availability
Add to Favorites
Compare

Description

Strip, push, connect – the fastest way to make a connection.The In-Sure® Push-In Wire Connector is perfect for residential, light commercial, lighting retrofit, and pre-fab wiring systems, or any other branch circuit wiring application where a traditional twist-on wire connector would be used. Simply push the wire in – the low insertion force makes it easy.The color-coded shell allows for quick identification of port configuration while the clear polycarbonate housing allows for visual verification of every connection. The ergonomic design is easier to grip which means more comfortable push-in connections. The compact size makes for easy installations in even the tightest spots or shallow boxes, and the tough, flame-retardant shell stands up to the harshest environments.UL Listed, CSA Certified, and rated to 600V – the In-Sure® saves time and improves productivity while perfecting connections.

Specifications

Weight

0.44lb

Height

3mm

Width

3.5mm

Length

5mm

Brand

Ideal Industries

Category

FIXTURE CONNECTORS (WIRE NUTS, ETC.)

Color

Red

Dimensions

0.78 in L x 0.52 in W x 0.38 in H

Finish

Tin Plated

Material

Nylon/Polycarbonate

Specifications

2 Ports, 3/8 to 1/2 in Strip Length

Temperature Rating

221 deg F

Voltage Rating

600 V AC

Wire Size

20 to 12 AWG, 18 to 12 AWG, 18 to 14 AWG

Wire Type

Solid/Stranded/Tin-Bonded
