Ideal

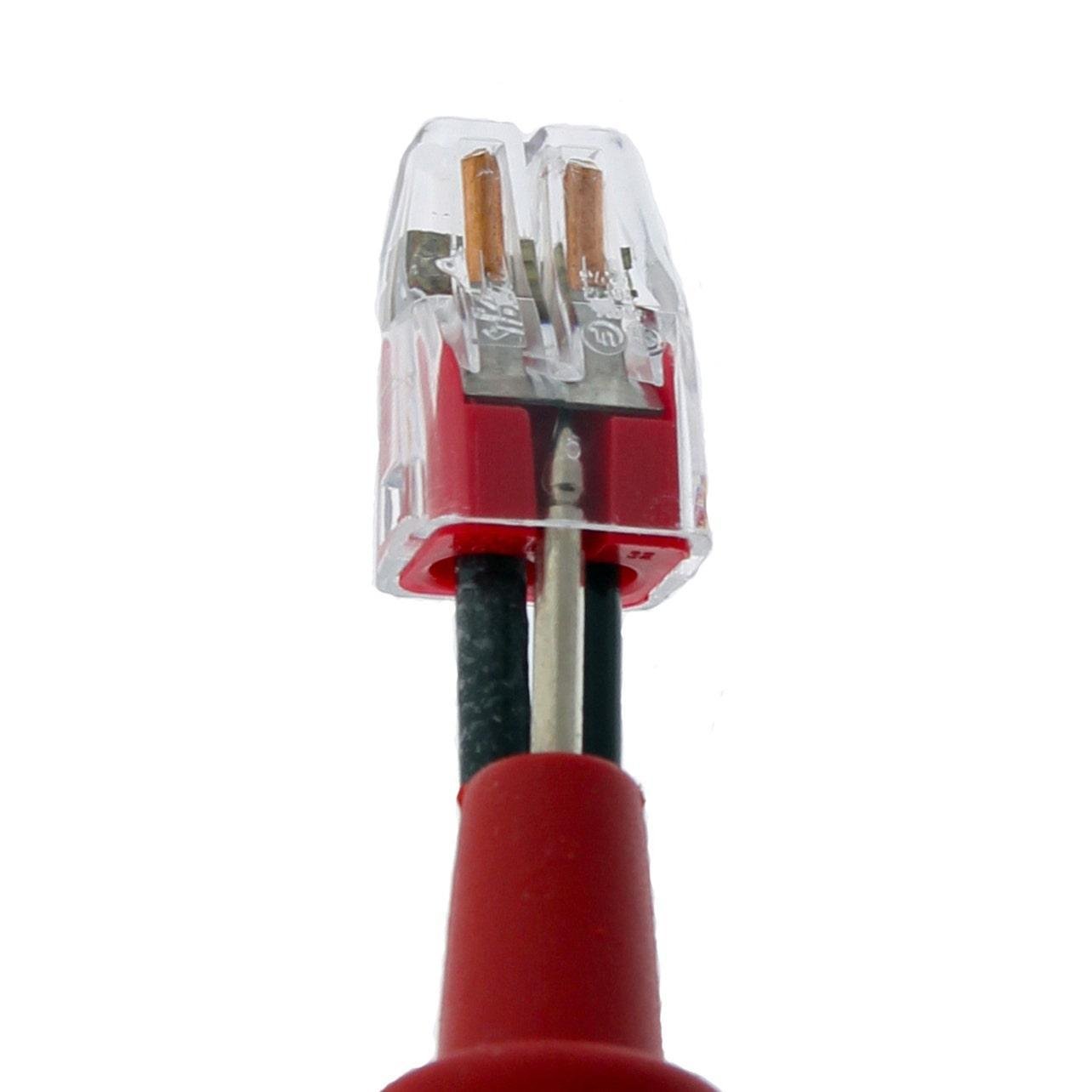

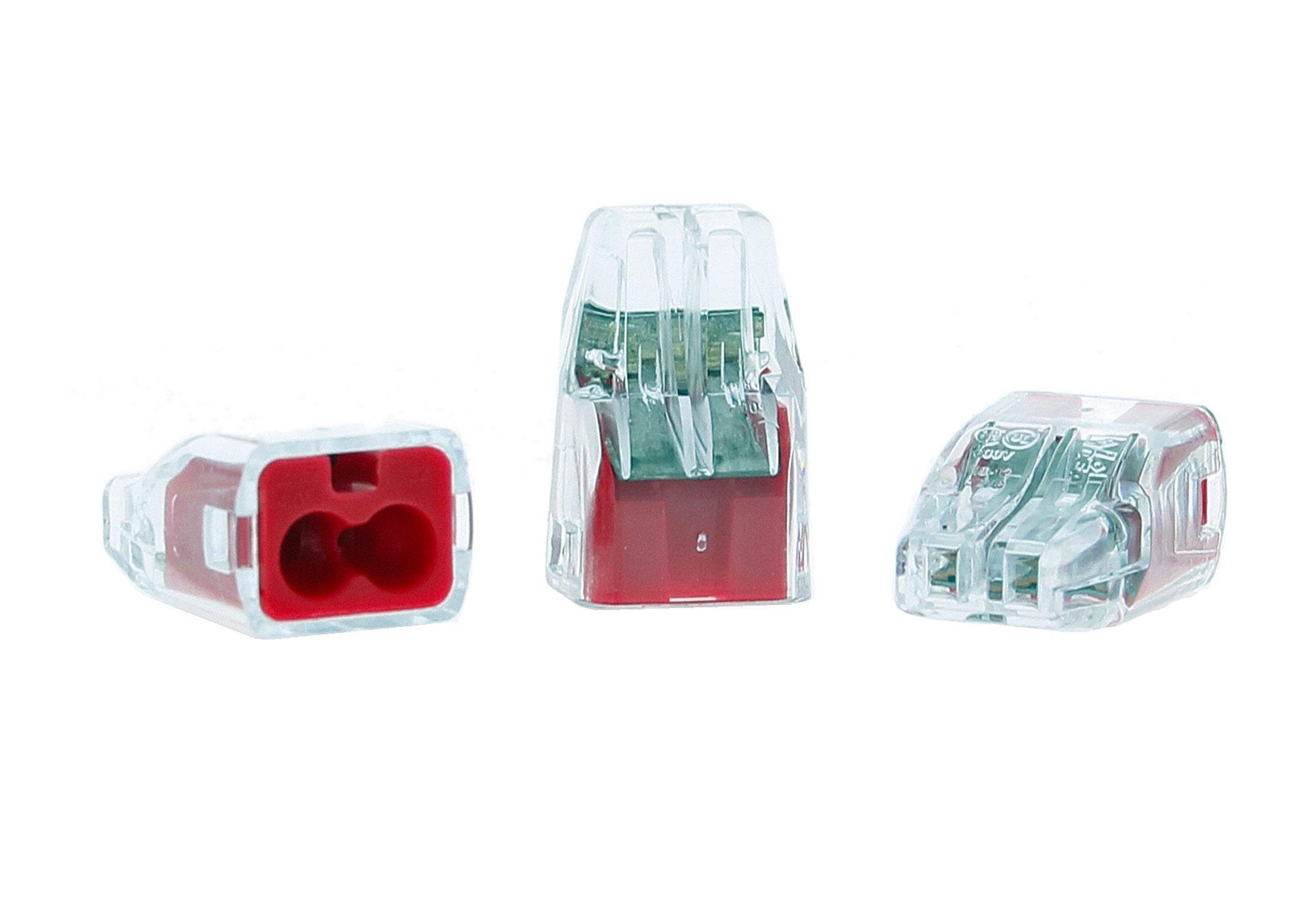

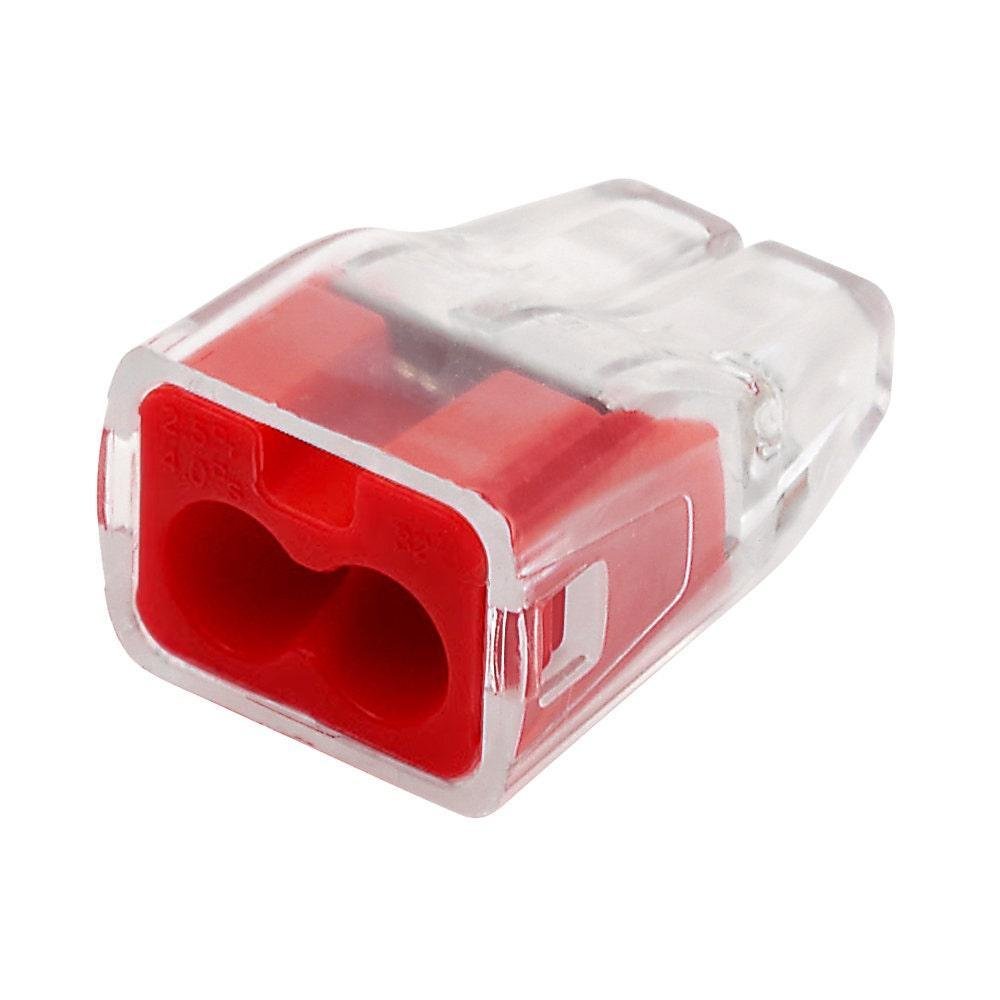

30-1032J - In-Sure® Push-In Wire Connector, Model 32 2-Port Red, Jar of 300

Item Code: 709237
Category Fixture Connectors (Wire Nuts, Etc.)
Manufacturer Ideal Industries
Manufacturer Ref 30-1032J
Minimum order quantity 300

Document
Document
Call for Availability
Add to Favorites
Compare

Description

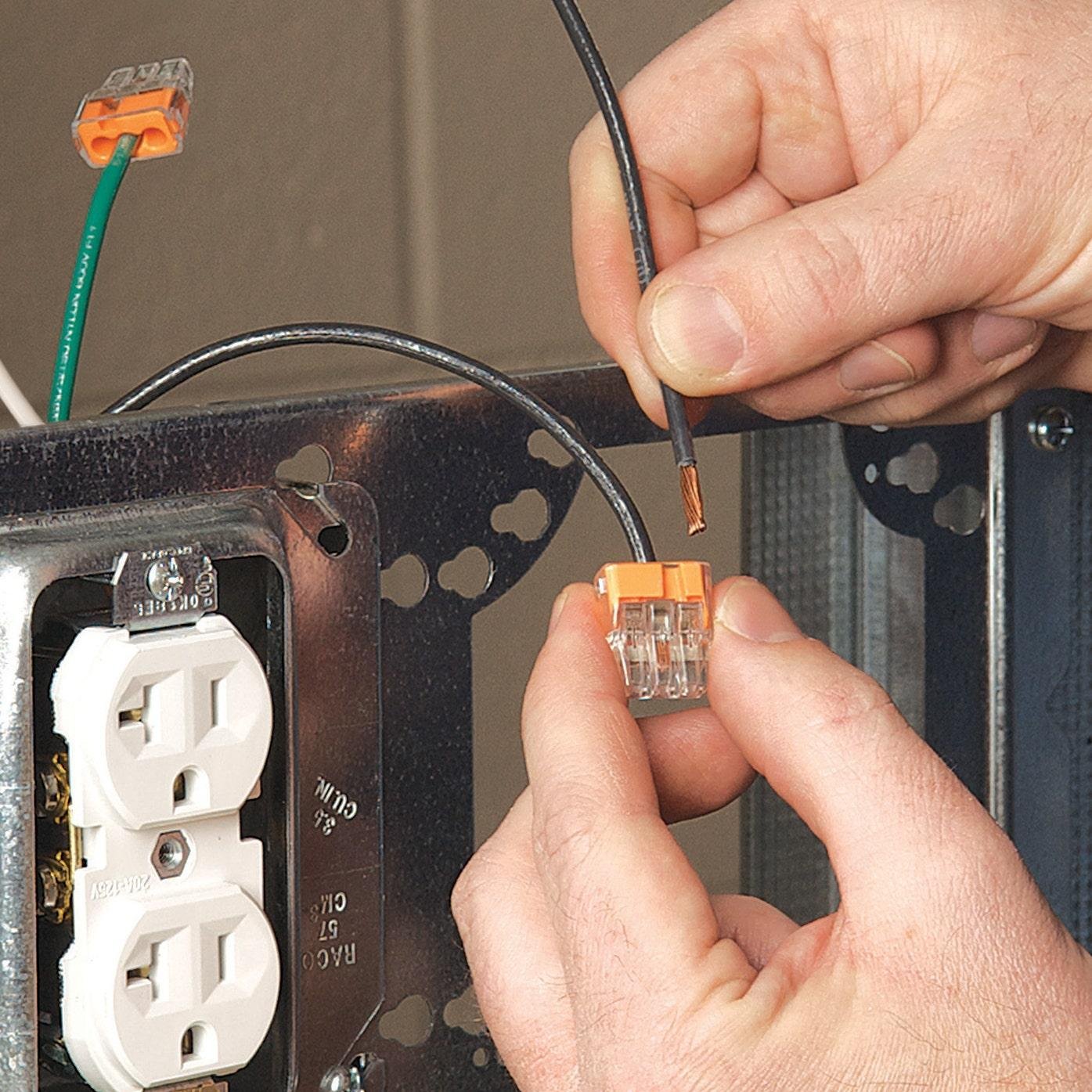

Strip, push, connect – the fastest way to make a connection.The In-Sure® Push-In Wire Connector is perfect for residential, light commercial, lighting retrofit, and pre-fab wiring systems, or any other branch circuit wiring application where a traditional twist-on wire connector would be used. Simply push the wire in – the low insertion force makes it easy.The color-coded shell allows for quick identification of port configuration while the clear polycarbonate housing allows for visual verification of every connection. The ergonomic design is easier to grip which means more comfortable push-in connections. The compact size makes for easy installations in even the tightest spots or shallow boxes, and the tough, flame-retardant shell stands up to the harshest environments.UL Listed, CSA Certified, and rated to 600V – the In-Sure® saves time and improves productivity while perfecting connections.

Specifications

Weight

1.32lb

Height

2.75mm

Width

4.25mm

Length

7.5mm

AD All Features

Ergonomic design for easy grip and comfortable installation

AD Application

Grounding and Bonding Applications

AD Brand (Description)

Ideal

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

CONNECTOR W PUSH-IN SOL/STRD/TIN-BND R

AD Item Features 01

Ergonomic design for easy grip and comfortable installation

AD Item Features 02

Low insertion force for fast and easy connections

AD Item Features 03

Clear shell gives visual verification of connection

AD Item Features 04

Tough, flame-retardant shell rated at 105 deg C (221 deg F)

AD Manufacturer (Description)

Ideal Industries

AD Package Height

2.7500

AD Package Height UOM

IN

AD Package Length

7.5000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

87.6500

AD Package Volume UOM

cu-in

AD Package Weight

1.3200

AD Package Weight UOM

LB

AD Package Width

4.2500

AD Package Width UOM

IN

Brand

Ideal Industries

Category

FIXTURE CONNECTORS (WIRE NUTS, ETC.)

Spec 1 Attribute

Color

Spec 1 Attribute Value

Red

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

0.78 in L x 0.52 in W x 0.38 in H

Spec 3 Attribute

Finish

Spec 3 Attribute Value

Tin Plated

Spec 4 Attribute

Material

Spec 4 Attribute Value

Nylon/Polycarbonate

Spec 5 Attribute

Specifications

Spec 5 Attribute Value

2 Ports, 3/8 to 1/2 in Strip Length

Spec 6 Attribute

Temperature Rating

Spec 6 Attribute UOM

deg F

Spec 6 Attribute Value

221

Spec 7 Attribute

Voltage Rating

Spec 7 Attribute UOM

V AC

Spec 7 Attribute Value

600

Spec 8 Attribute

Wire Size

Spec 8 Attribute Value

20 to 12 AWG, 18 to 12 AWG, 18 to 14 AWG

Spec 9 Attribute

Wire Type

Spec 9 Attribute Value

Solid/Stranded/Tin-Bonded
