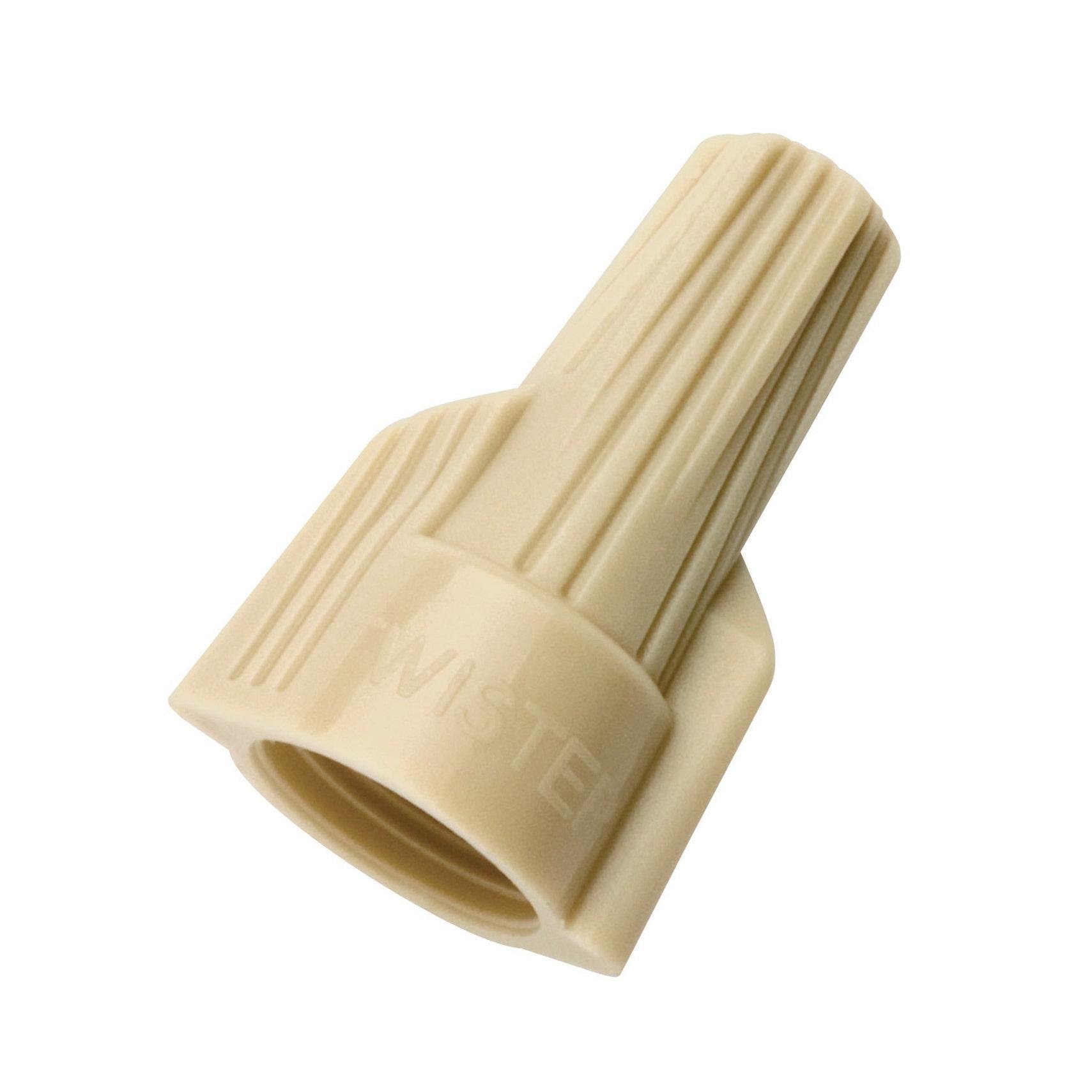

30-641 - Twister® Wire Connector, Model 341® Tan, Bag of 500
Description
Specifications
2.35lb
3.5mm
7mm
8.5mm
For insulating or joining one or more conductor, lighting installation and retrofit
Ideal
USA
US
CONNECTOR W RIB/SWEPT WING/TWIST ON PP
Twister Wire Connectors have earned a solid reputation as the most technically advanced wire connector available
These superior wire connectors are designed from top to bottom with features to provide more comfort and less fatigue to professional electricians
With swept wings and an expanding, live-action spring, the Twister supports a wide range of common wiring configurations with comfort and ease, even on the toughest combinations like solid-to-stranded
The copolymer shell expands for smooth, progressive tightening ensuring dependable connections
The Twister also features a hexagonal top with a ribbed cap for fast fingertip starts as well as nut driver installation
The tough, flame-retardant shell withstands the most rugged environmental extremes while the deep skirt provides maximum dielectric strength
Ideal Industries
3.5000
IN
8.5000
IN
1
2.3500
LB
7.0000
IN
Ideal Industries
FIXTURE CONNECTORS (WIRE NUTS, ETC.)
Color
Tan
Type
Flame-Retardant
Voltage Rating
V AC
600
Wire Size
AWG
22 To 8
Wire Type
Solid/Stranded Copper
Dimensions
0.54 in Dia x 0.72 in W x 1.14 in H
Finish
Zinc Plated
Material
Polypropylene
Series
341®
Shell Style
Positive Grip/Winged
Specifications
1/2 in Wire Strip, 1 to 6 Conductors, 22 to 3 AWG Minimum, 10 to 3 AWG Maximum Conductor Combination Size
Spring Type
Live Action/Square Wire
Temperature Rating
deg F
221
