Ideal

35-485 - Punchmaster™ II Impact Punchdown Tool

Category Punchdown Tools
Picture of 35-485 - Punchmaster™ II Impact Punchdown Tool Picture of 35-485 - Punchmaster™ II Impact Punchdown Tool
Picture of 35-485 - Punchmaster™ II Impact Punchdown Tool Picture of 35-485 - Punchmaster™ II Impact Punchdown Tool
Picture of 35-485 - Punchmaster™ II Impact Punchdown Tool Picture of 35-485 - Punchmaster™ II Impact Punchdown Tool
Ideal

35-485 - Punchmaster™ II Impact Punchdown Tool

Item Code: 9051
Category Punchdown Tools
Manufacturer Ideal Industries
Manufacturer Ref 35-485

Document
Document
Call for Availability
Add to Favorites
Compare

Description

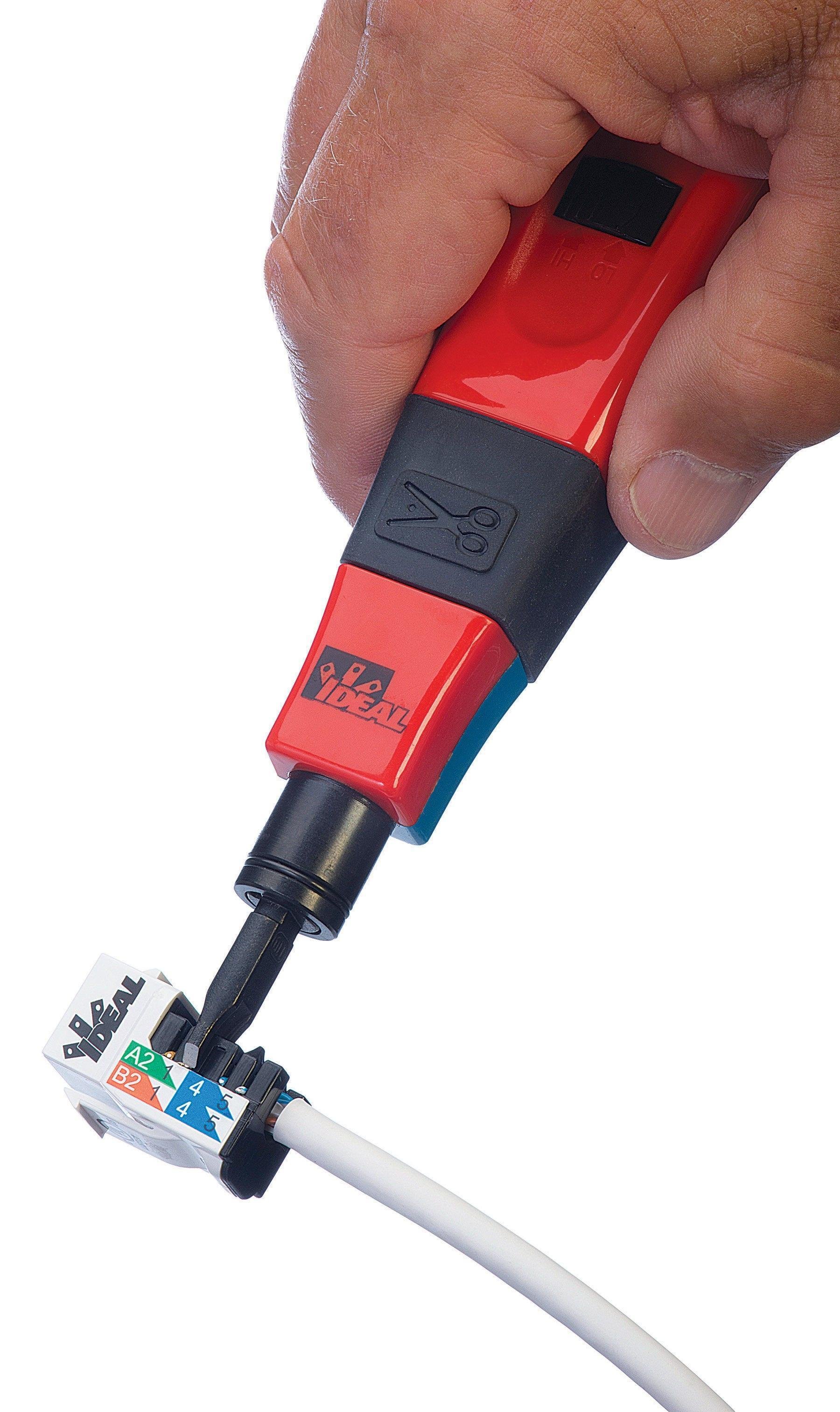

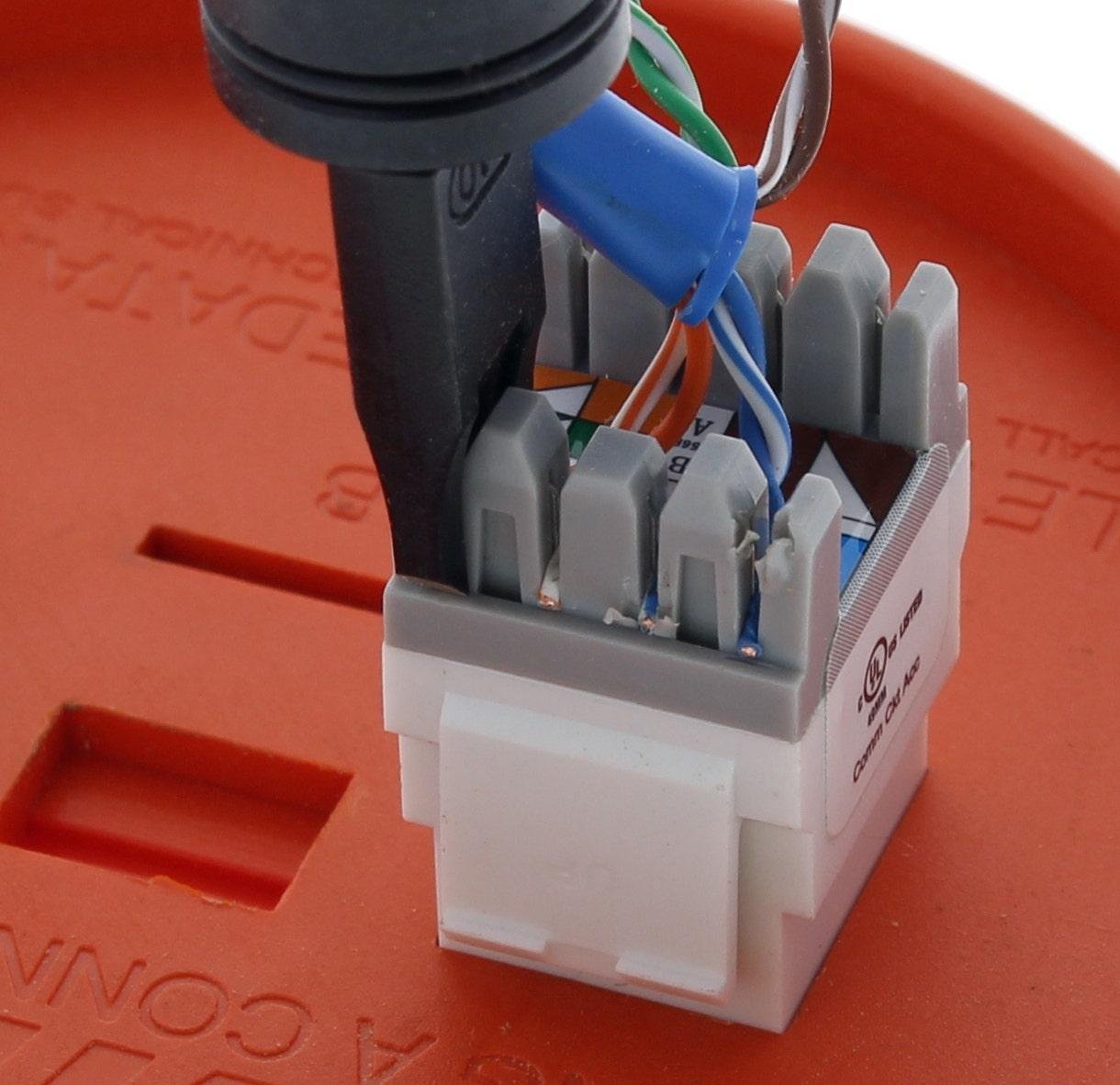

The Punchmaster™ II Punchdown tool is a professional grade tool used for terminating voice and data conductors to related networking and telecommunications equipment. The 35-485 includes both 110 (networking/data) and 66 (telecommunications/voice) blades. Other blade types are available separately.The tool features an impact style design where a spring loaded internal mechanism helps to deliver a surge of additional force to seat and cut conductors with less input from the user. Users can select either the HI or LO setting on the tool. The LO setting is used for terminating to more sensitive equipment, such as posts attached to circuit boards. The HI setting delivers more of a punch and offers better seating and cutting characteristics.A spare 110 or 66 blade can be stored in the top of the tool. Blades are released by pressing the blade release button and turning the tool upside down.The Turn-Lock™ Style blade system keeps the blades oriented properly and secure within the tool. Turn-Lock™ always aligns the cutting side of the blade with the orange half of the tool, so it is easy to identify the cut side of the tool on a job.Blades can be used to seat and cut Cat 3/5e/6/6A conductors and multi-pair telephone wires.

Specifications

Weight

0.5lb

Height

1.5mm

Width

5.25mm

Length

11mm

AD Brand (Description)

Ideal

AD Country

USA

AD Country Of Origin

US

AD Includes

110 and 66 Blades

AD Invoice Description

TOOL DN PCH

AD Item Features 01

Spring loaded impact style termination seats and cuts wires with less effort

AD Item Features 02

Cushioned end cap and body grip helps to absorb impact forces and reduces operator fatigue

AD Item Features 03

Adjustable high/low actuation setting accommodates termination requirements and user preference

AD Item Features 04

Turn-Lock Style blade holding design keeps blade aligned and secure in the tool

AD Manufacturer (Description)

Ideal Industries

AD Package Height

1.5000

AD Package Height UOM

IN

AD Package Length

11.0000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

86.6200

AD Package Volume UOM

cu-in

AD Package Weight

0.5000

AD Package Weight UOM

LB

AD Package Width

5.2500

AD Package Width UOM

IN

Brand

Ideal Industries

Category

Punchdown Tools

Spec 1 Attribute

Color

Spec 1 Attribute Value

Red

Spec 2 Attribute

Material

Spec 2 Attribute Value

Copper

Spec 3 Attribute

Suitable For Use With

Spec 3 Attribute Value

IDEAL® Turn-Lock™ Blades

Spec 4 Attribute

Type

Spec 4 Attribute Value

Non-Impact
