61-757 - 600A AC/DC TRMS ClmpMtr,TightSit,w/Flashlt,NCV&Tmp
Description
Specifications
1.68lb
3.43mm
5.38mm
12.6mm
Measures AC/DC Current, AC/DC Voltage, Frequency, Resistance, Continuity, Capacitance, Diodes, Temperature, Low Impedance AC Voltage (lo Z) (To Reduce the Possibility of False Readings Due to Ghost Voltages) and Senses AC Voltage
Ideal
USA
CN
Soft Case, Test Leads, Batteries and K-Type Thermocouple
METER CLAMP 600 VAC 600 A 60MOHM 1.4IN

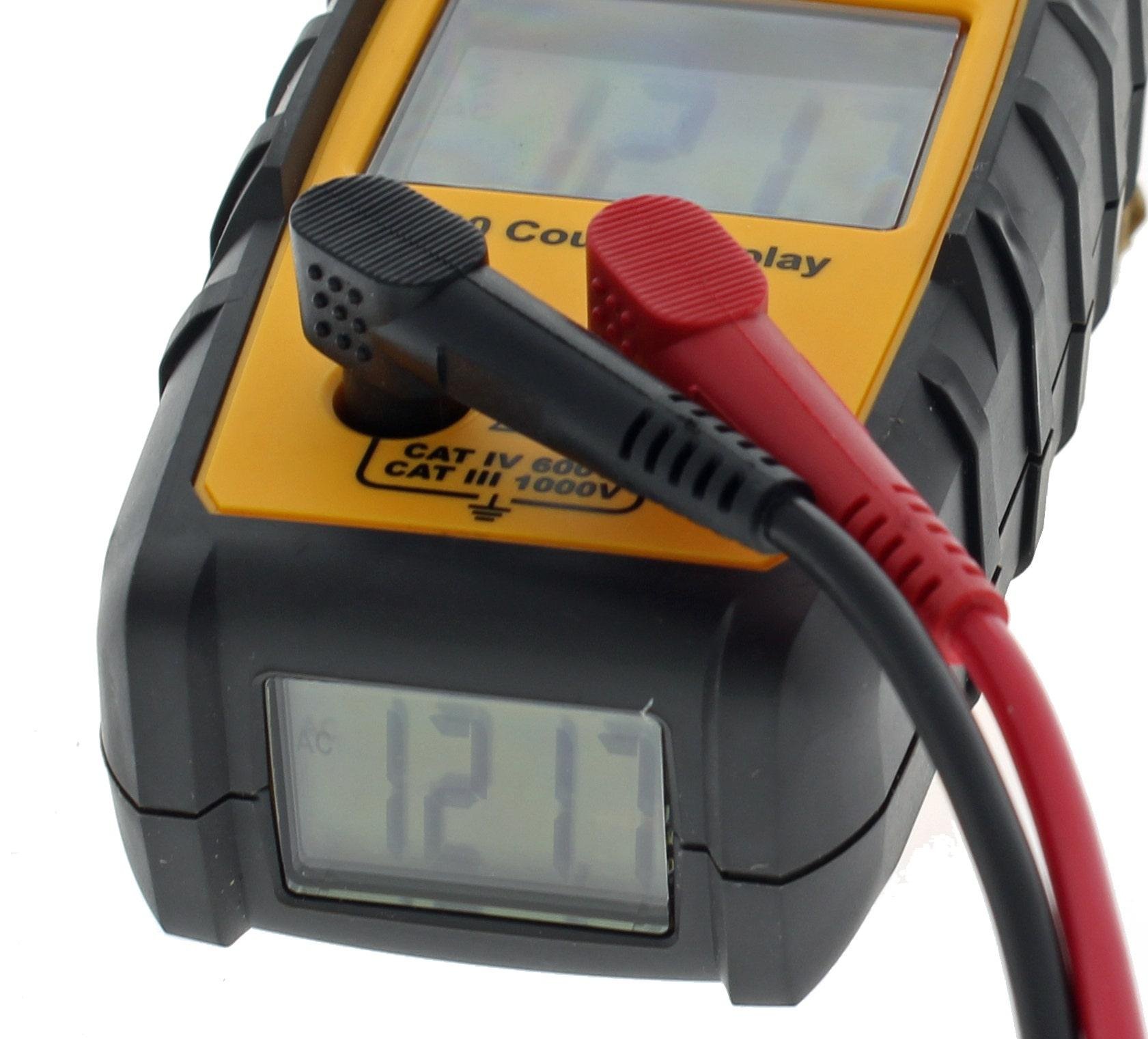

Patented TightSight Display eliminates the need to bend or twist conductors or place your head near or in the panel and allows you to easily read the bottom display when taking measurements
Provides True RMS AC voltage and current for accurate measurements on non-linear signals
Built-in probe tip holder and hanging strap clip allows safer, easier measurement

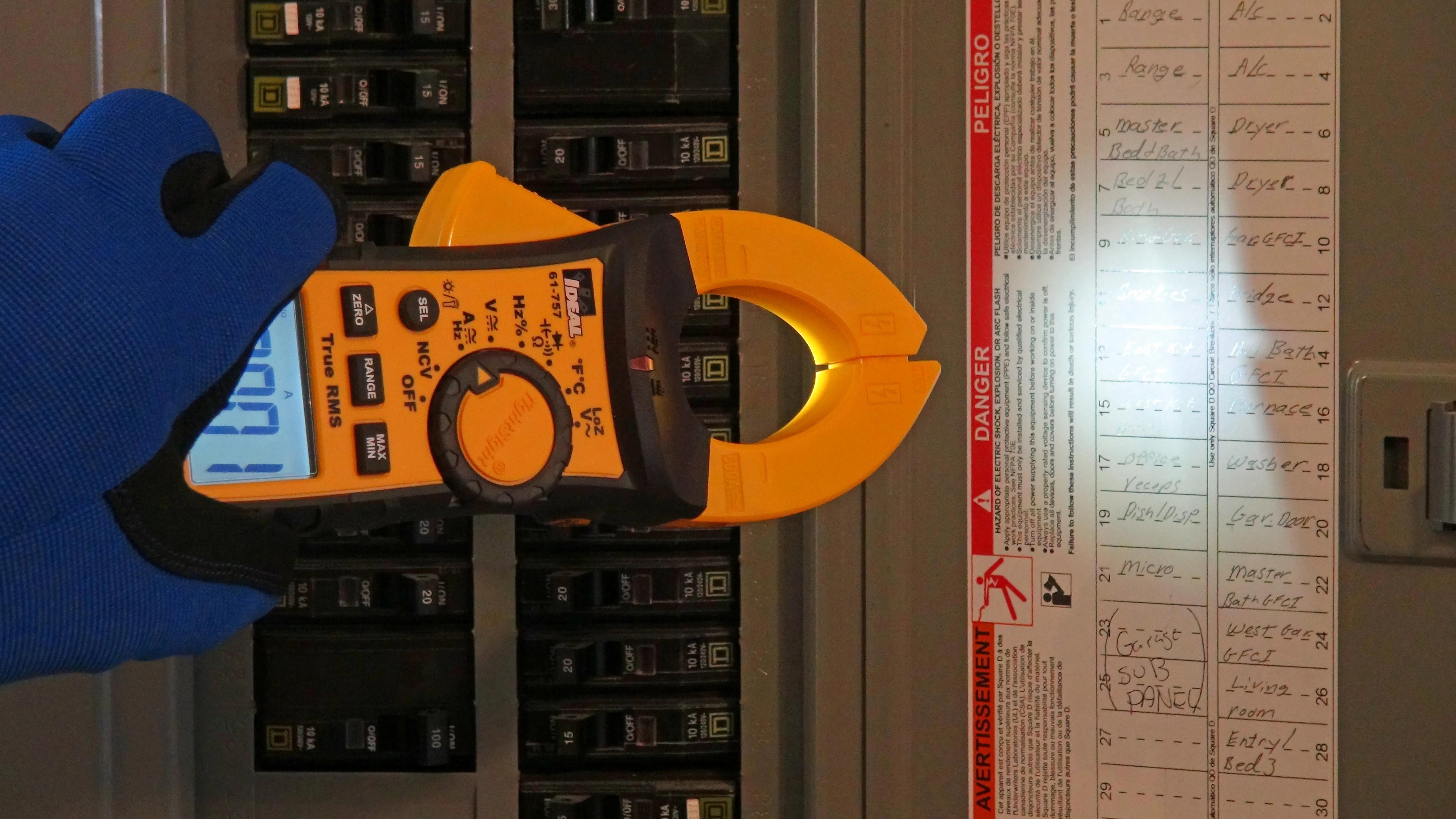

Built-in Flashlight and dual backlit displays, allow for safer/faster work in poorly lit environments
Ideal Industries
3.4300
IN
12.6000
IN
1
232.5100
cu-in
1.6800
LB
5.3800
IN
https://vimeo.com/596101645
Ideal Industries
Power Meters
AC Current Accuracy
+/-2% + 9
Operating Temperature
deg F
-40 to 1832
Power Source
(3) 1.5 V AAA Battery
Resistance
mOhm
60
Safety Rating
CAT IV 600 V, CAT III 1000 V
Type
Digital
Voltage Accuracy
+/-1.5% + 5
AC Response
TRUE RMS
Counts
6000
Dimensions
9.9 in L x 2.8 in W x 1.8 in H
Display Type
Backlit LED
Electrical Ratings
600 V AC, 600 A
Frequency Counter
+/-0.1% + 5
Frequency Rating
HZ
10 to 9999
Jaw Capacity
IN
1.4
