Ideal

92-691 - InSITE™ RTQ™ 90°RG-6 F Compression Connector -5 pk

Category Coaxial & Twinaxial Connectors

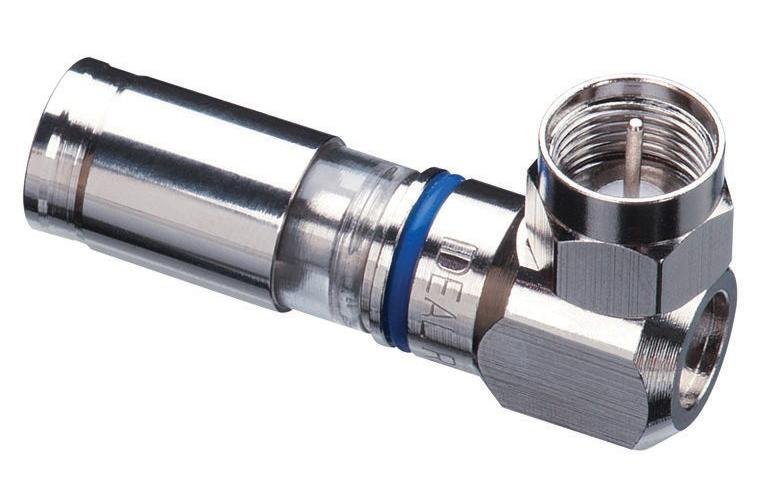

Picture of 92-691 - InSITE™ RTQ™ 90°RG-6 F Compression Connector -5 pk Picture of 92-691 - InSITE™ RTQ™ 90°RG-6 F Compression Connector -5 pk
Picture of 92-691 - InSITE™ RTQ™ 90°RG-6 F Compression Connector -5 pk Picture of 92-691 - InSITE™ RTQ™ 90°RG-6 F Compression Connector -5 pk
Ideal

92-691 - InSITE™ RTQ™ 90°RG-6 F Compression Connector -5 pk

Item Code: 928207
Category Coaxial & Twinaxial Connectors
Manufacturer Ideal Industries
Manufacturer Ref 92-691

Document
Call for Availability
Add to Favorites
Compare

Description

Installing one-piece compression right angle F connectors just got easier. No more uncertainty when inserting the cable into the connector. No more collapsed center pins. No more wasted connectors and rework time on the job.With the patented InSITE™ Technology feature, now standard on all IDEAL F right angle (90°) compression connectors, field termination of these blind entry connectors is simpler, faster and now provides a higher performance connection for all coax video applications.The InSITE window is a 360° clear window which allows the installer to verify that the prepped cable has been inserted far enough into the connector to make contact with the fixed pin-before the connector is compressed.All IDEAL compression connectors require a 1/4” x 1/4” industry standard coax preparation. The prepped cable is then inserted into the connector until the folded braiding is visible within the InSITE window. No measuring, no jacket marking, no guesswork – a confident connection every time.The IDEAL RTQ™ series of F connectors offer a single connector solution to cover a range of coax types. A patented compression sleeve design allows Regular (dual), Tri, and Quad shield cables all to be terminated within a single connector. All RTQ connectors have an all brass exterior and an inner O-ring to provide a robust, weather proof connection suitable for just about any application - indoors or outdoors.RG 59/6/6Q sized connectors are available for use in applications and installations from 5MHz to 3GHz, including CATV, satellite, HDTV and other A/V based applications. An internal sealing compression sleeve prevents moisture from entering the backside of the connector and aides in cable retentionThe 90° compression connectors are the only IDEAL connectors that require the 30-793 compression tool to be adjusted.

Specifications

Weight

0.1lb

Height

1.5mm

Width

5mm

Length

8.75mm

AD All Features

Features InSITE Technology

AD Application

Satellite and Cable TV Applications

AD Brand (Description)

Ideal

AD Country

USA

AD Country Of Origin

CN

AD Invoice Description

CONNECTOR MALE X FEM RG-6 PLENUM BRS SIL

AD Item Features 01

Features InSITE Technology

AD Item Features 02

Accepts RG-6/RG-6 Quad/RG-6 Plenum/RG-6 Quad Plenum coax cables

AD Item Features 03

Outer jacket diameter range - .226 in - .305 in

AD Manufacturer (Description)

Ideal Industries

AD Package Height

1.5000

AD Package Height UOM

IN

AD Package Length

8.7500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.1000

AD Package Weight UOM

LB

AD Package Width

5.0000

AD Package Width UOM

IN

Brand

Ideal Industries

Category

Coaxial & Twinaxial Connectors

Spec 1 Attribute

Cable Type

Spec 1 Attribute Value

RG-6 Plenum

Spec 2 Attribute

Color

Spec 2 Attribute Value

Silver

Spec 3 Attribute

Connector Type

Spec 3 Attribute Value

Female x Male

Spec 4 Attribute

Finish

Spec 4 Attribute Value

Nickel Plated

Spec 5 Attribute

Installation Type

Spec 5 Attribute Value

Compression

Spec 6 Attribute

Material

Spec 6 Attribute Value

Brass
