V5ICR W - LITH V5ICR W VuLite 5IN IC Remodel,
Description
Specifications
1.75lb
8.75mm
23mm
23.5mm
Education, Government, Hospitality, Religious, Residential and Retail Applications
Juno Lighting
USA
MX
240A24

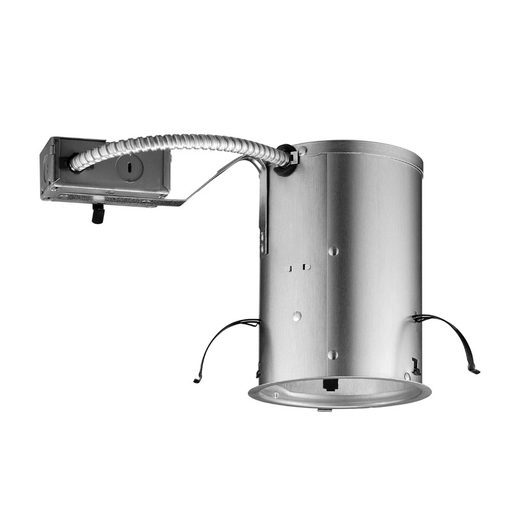

HOUSING LTG RECESSED 120VAC 5-1/2IN 50W
Energy-efficient, sealed housing
Can be completely covered with insulation
Installs through an opening in the ceiling from below
Secured in place by factory installed remodel springs
When used with Air-Loc® gasket, stops infiltration and exfiltration of air, reducing heating and air cooling costs
Medium base porcelain with nickel plated copper screw shell
UL/cUL listed for through branch wiring, damp locations and IP
Product thermally protected against improper use of lamps
Pre-wired junction box, UL/cUL listed for through branch wiring, maximum (4) 12 AWG 90 deg C branch circuit conductor
Junction box provided with removable access plate, (5) 1/2 in knockouts and (4) non-metallic sheathed cable connector and ground wire
Knockouts equipped with pryout slots
Remodel springs accommodate up to a 1-1/8 in THK ceiling
PAR30/PAR30L/BR30/R20/PAR20 lamps
Acuity Brands
8.7500
IN
23.5000
IN
1
1.7500
LB
23.0000
IN
Juno Lighting
HALOGEN & QUARTZ RECESSED ARCHITECTURAL & SPECIFICATION LIGHTING
Ceiling Opening
IN
5/1/2002
Number of Lamps
1
Suitable For Use With
5 in Trim
Type
Line Voltage Remodel Round
Voltage Rating
V AC
120
Width
IN
23
Color
Gray/Silver
Diameter
IN
5
Height
IN
8/3/2004
Housing Material
Aluminum
Insulation Type
IC
Lamp Type
Incandescent
Lamp Wattage
W
50
Mounting Type
Ceiling
