WF4 ALO19 SWW5 90CRI MVOLT MW -
Description
Specifications
1.06
30
5.36
7.21
283AS0
Juno
USA
CN
RECESSED LTG FIXTURES LED 14.5W 120/277V

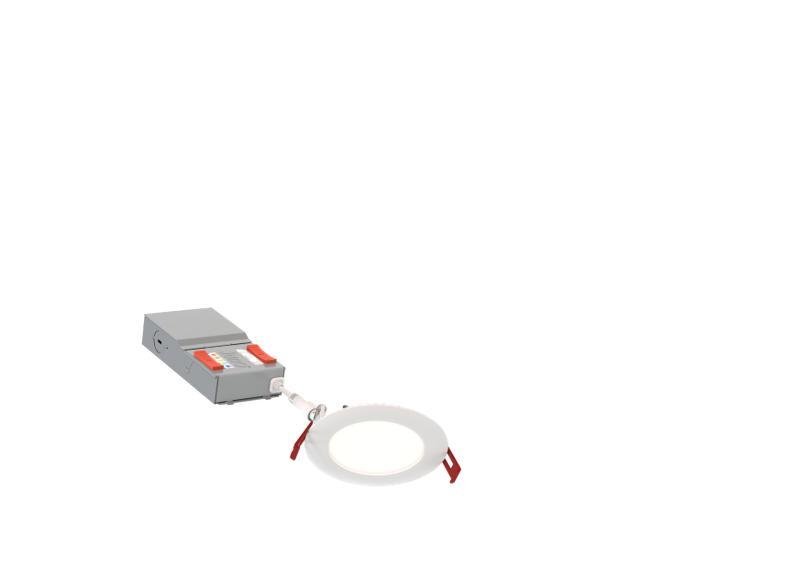

The 4in Canless Wafer Downlight has an innovative, slim design that installs quickly and easily into as little as 3in of plenum space allowing for it to fit into ceiling spaces where most traditional recessed housings do not
Wafers install directly into dry wall eliminating the need for recessed housings
Once installed, our Wafer provides an all-in-one design featuring switchable white color temperature and adjustable lumen output technology
This technology gives the ultimate in flexibility, providing you the equivalent of 15 static products in one
Design - Wafer Downlights feature a canless design, meaning no housing is required for installation and they install directly from below the ceiling, plus, they are slim in size allowing them to fit into when space above the ceiling is limited
ENERGY SAVINGS - Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination for extended service life
Easy Installation - Installs directly below the ceiling for easy retrofit, remodel or new construction, no housing required, plush IC Rated for the product to be installed in direct contact with insulation
FEATURE BENEFIT - The Wafer is designed with two switches located directly on the product to change color temperature from 2700K (warm white) up to 5000K (daylight), or change lumens from 700, 900, or 1100
Emergency battery currently not available
WF4 ALO19 SWW5 90CRI MVOLT MW M6 Adjustable Canless Recessed Trim, LED Lamp, 14.5 W Fixture, 120/277 V, Aluminum Housing ; Juno ; WF4 ALO19 SWW5 90CRI MVOLT MW M6 ; 283AS0 ; 197589217445 ; Recessed Lighting Fixtures
Acuity Brands
30.0000
IN
7.2100
IN
1
1.0600
LB
5.3600
IN
WF4 ALO19 SWW5 90CRI MVOLT MW M6 ; WF4ALO19SWW590CRIMVOLTMWM6 ; 283AS0 ; 197589217445 ; 19758921744
Juno Lighting
LED RECESSED ARCHITECTURAL & SPECIFICATION LIGHTING
Color Rendering Index (CRI)
90
Color Temperature
K
2700/3000/3500/4000/5000
Dimensions
1.25 in H x 4.72 in L
Fixture Wattage
W
14.5
Housing Material
Aluminum
Lamp Type
Led
Type
Adjustable
Voltage Rating
V
120/277
