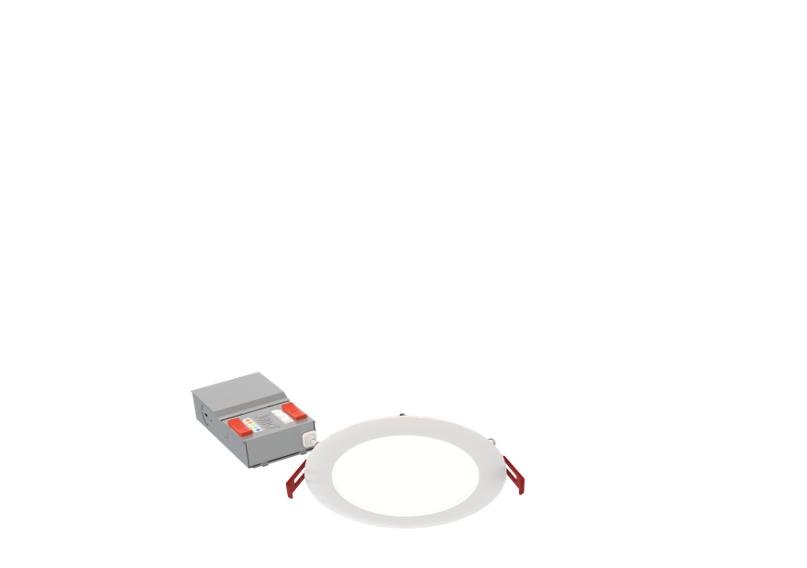

WF6 ALO20 SWW5 90CRI MW - 6" LED Wafer 27K/3K/35K/4K/5K 800/1050/1300LM
Description
Purchasing Quantities
1
6
Specifications
1.45
2.7
6.94
7.37
282KL5
Juno
USA
MY
Specification Sheet
Instruction/Installation Manual
RECESSED LTG FIXTURES INCANDESCENT 16W
Wafers install directly into dry wall eliminating the need for recessed housings
Once installed, our Wafer provides an all-in-one design featuring switchable white color temperature and adjustable lumen output technology
This technology gives the ultimate in flexibility, providing you the equivalent of 15 static products in one
DESIGN - Wafer Downlights feature a canless design, meaning no housing is required for installation they install straight into the ceiling dry wall, plus Wafers are also slim in design, so they fit when ceiling space is limited
ENERGY SAVINGS - Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination for extended service life
DIMMABLE - Dimming to 10 percent
HOURS OF LIFE - Long life energy efficient LED
FEATURE BENEFIT - The Wafer is designed with two switches located directly on the product to change color temperature from 2700K (warm white) up to 5000K (daylight), or change lumens from 800, 1050, 1300
BATTERY - Emergency battery currently not available
WF6 ALO20 SWW5 90CRI MW M6 Flat Wafer-Thin Downlight, Incandescent Lamp, 16 W Fixture, 120 V, Die-Cast Aluminum Housing ; Juno ; WF6 ALO20 SWW5 90CRI MW M6 ; 282KL5 ; 197589041194 ; Recessed Lighting Fixtures
Acuity Brands
2.7000
IN
7.3700
IN
1
1.4500
LB
6.9400
IN
WF6 ALO20 SWW5 90CRI MW M6 ; WF6ALO20SWW590CRIMWM6 ; 282KL5 ; 197589041194 ; 19758904119
https://www.youtube.com/watch?v=AX2nakIlWOw
Juno Lighting
LED RECESSED ARCHITECTURAL & SPECIFICATION LIGHTING
Average Life
hrs
50000
Lumens
Lumens
800/1050/1300
Type
Flat
Voltage Rating
V
120
Ballast Type
Triac
Color Rendering Index (CRI)
90
Color Temperature
K
2700/3000/3500/4000/5000
Fixture Wattage
W
16
Housing Material
Die-Cast Aluminum
Lamp Type
Incandescent
Lamp Wattage
W
75
Lens Type
Polycarbonate
