Kidde

CO120X - Carbon Monoxide Relay Module

Category Fire Protection

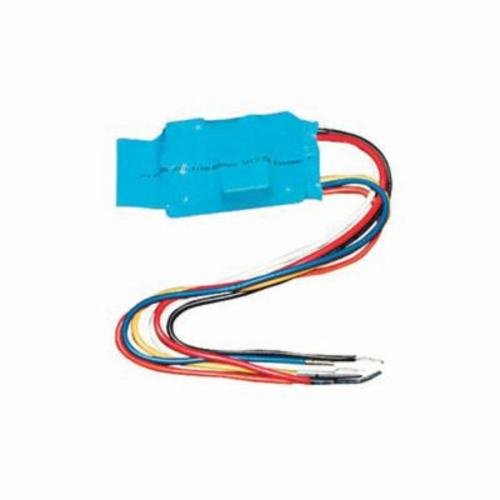

Picture of CO120X - Carbon Monoxide Relay Module
Kidde

CO120X - Carbon Monoxide Relay Module

Item Code: 702467
Category Fire Protection
Manufacturer Kidde
Manufacturer Ref CO120X

Instruction Installation Manual
Owners User Manual
Specification Sheet
Warranty Information
Call for Availability
Add to Favorites
Compare

Description

The Kidde CO120X can be used to activate auxiliary warning devices such as external bells and sirens, hallway or stairway lighting. This relay will only activate when it receives a CO signal from an interconnect Carbon Monoxide Alarm.

Specifications

Amperage Rating

0.08 A

Brand

Kidde

Category

Fire Protection

Contact Rating

10 A at 120 V AC/5 A at 30 V DC

Humidity

0.85

Specifications

60 Hz

Specifications Met

CULus Listed

Suitable For Use With

KN-COB-IC, KN-COB-IC-CA, KN-COB-ICB-CA, KN-COP-IC and KN-COP-ICCA Carbon Monoxide Alarms

Temperature Rating

40 to 100 deg F

Voltage Rating

120 V AC
