51604 - Iron Conduit Bender Full Assembly, 3/4-Inch EMT with Angle Setter™
Description
Specifications
8.28lb
2.75mm
10mm
40.5mm
39.88mm
16852172
Klein®
Grainger - 4VDH4
USA
US
Owners/User Manual
Catalog
00092644516047
16852172
38 in Handle and Angle Setter™
BENDER CONDUIT 10/22/30/45/60DEG 5-1/2IN

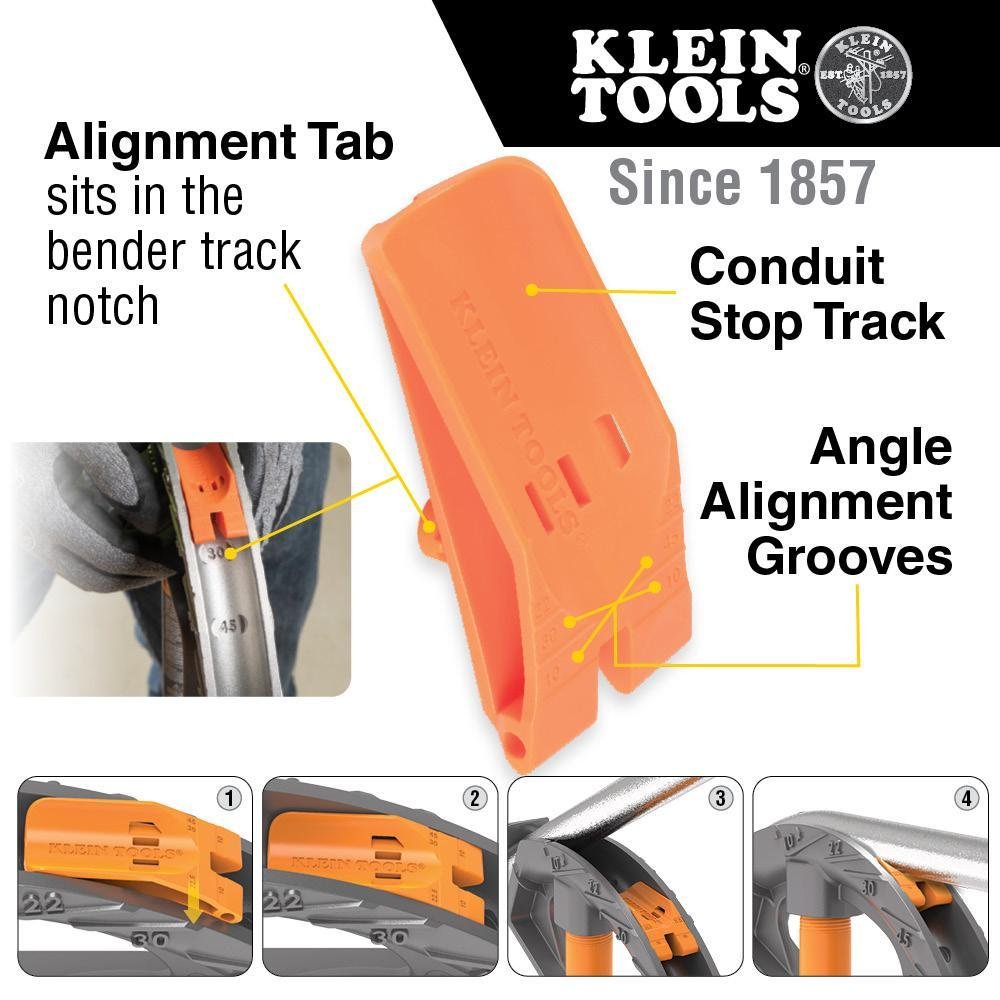

3/4 in assembled Iron Bender includes Klein's unique Angle Setter technology for time-saving, repeated accurate bends, Patent pending Angle Setter for use on 10-, 22.5-, 30-, and 45 deg bends (adjusted for conduit spring back)

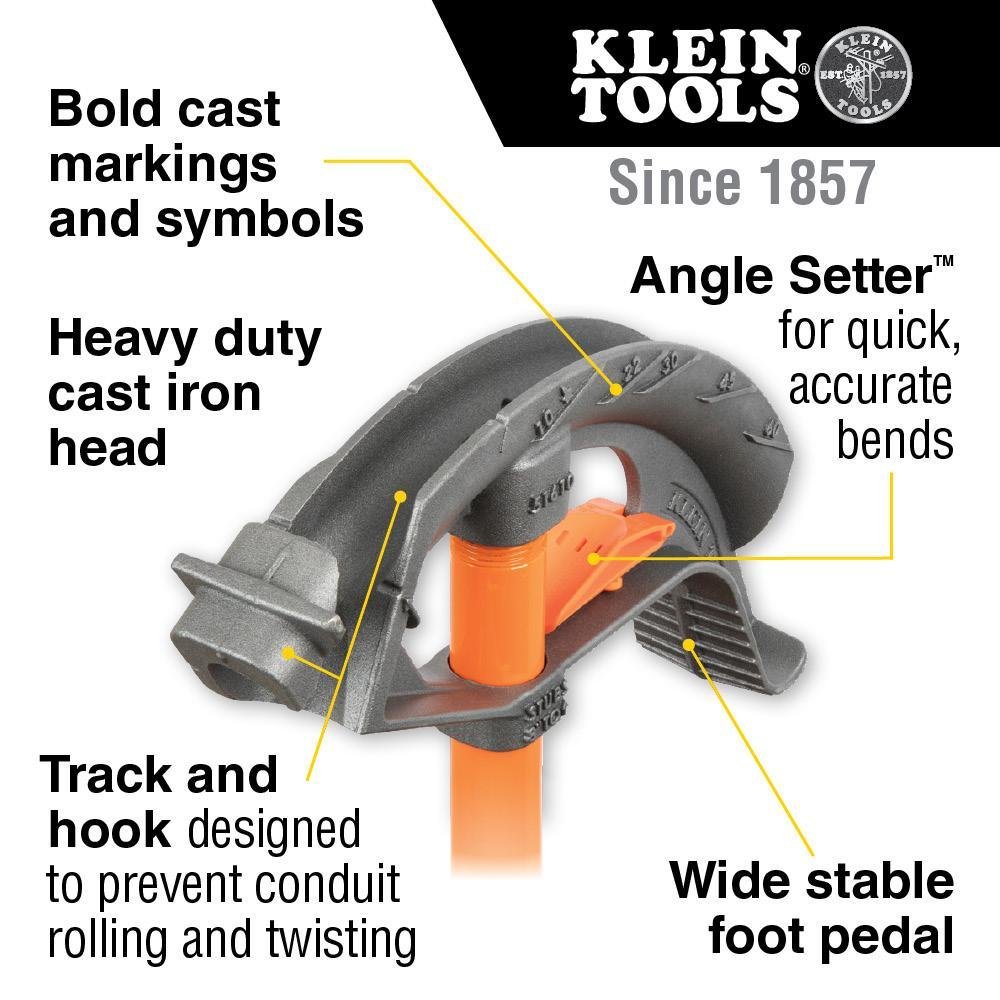

Heavy duty cast ductile iron has the durability needed on the job site
Bold cast markings and symbols make for fast, easy conduit alignment to make all bend types, including saddle and back-to-back bends
Wide foot pedal provides excellent stability, leverage, and comfort
Interior hook surface prevents conduit from rolling or twisting during bends
Designed to bend 3/4 in EMT, 1/2 in Rigid and 1/2 in IMC conduit
51604 Conduit Bender, 10/22/30/45/60 deg Bend, 5-1/2 in Bend Radius, For Pipe Dia 3/4 in ; Klein Tools ; Klein ; 51604 ; 092644516047 ; Conduit Benders - Hand
Klein Tools
2.7500
IN
40.5000
IN
1
8.2800
LB
10.0000
IN
51604 ; 16852172 ; 092644516047 ; 92644516047 ; 09264451604 ; 00092644516047
https://youtu.be/ggGA8giSeM0
Klein Tools
BENDERS & KO PUNCHES
Bend Angle
deg
10/22/30/45/60
Bend Radius
IN
5/1/2002
Body Material
Iron
For Pipe Diameter
IN
4-Mar
Pipe/Tube Thickness
IN
4-Mar
