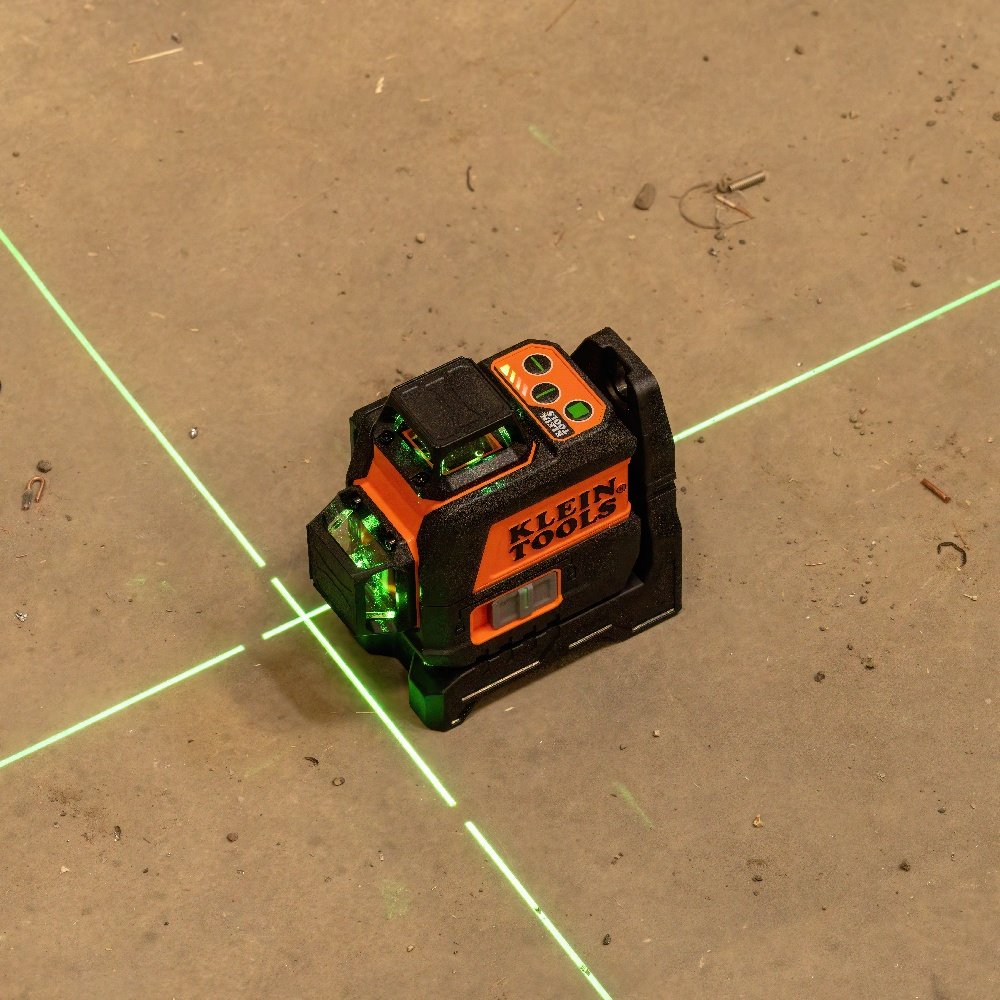

93CPLG - Compact Green Planar Self-Leveling Laser Level
Description
Specifications
1.93
4.25
7.25
8
https://spin.adhq.com/Klein%20Tools/93CPLG/93CPLG.spin
20819927
Indoor, Outdoor and Self-Leveling Laser Alignment Instrument that Delivers Horizontal and/or Vertical Cross Lines
Klein
USA
CN
SDS
Specification Sheet
Instruction/Installation Manual
Owners/User Manual
00092644930133
20819927
Laser Level, Soft Carrying Case, Instruction Manual, Mounting Clamp
CORDLESS LASER LVL KIT 100FT

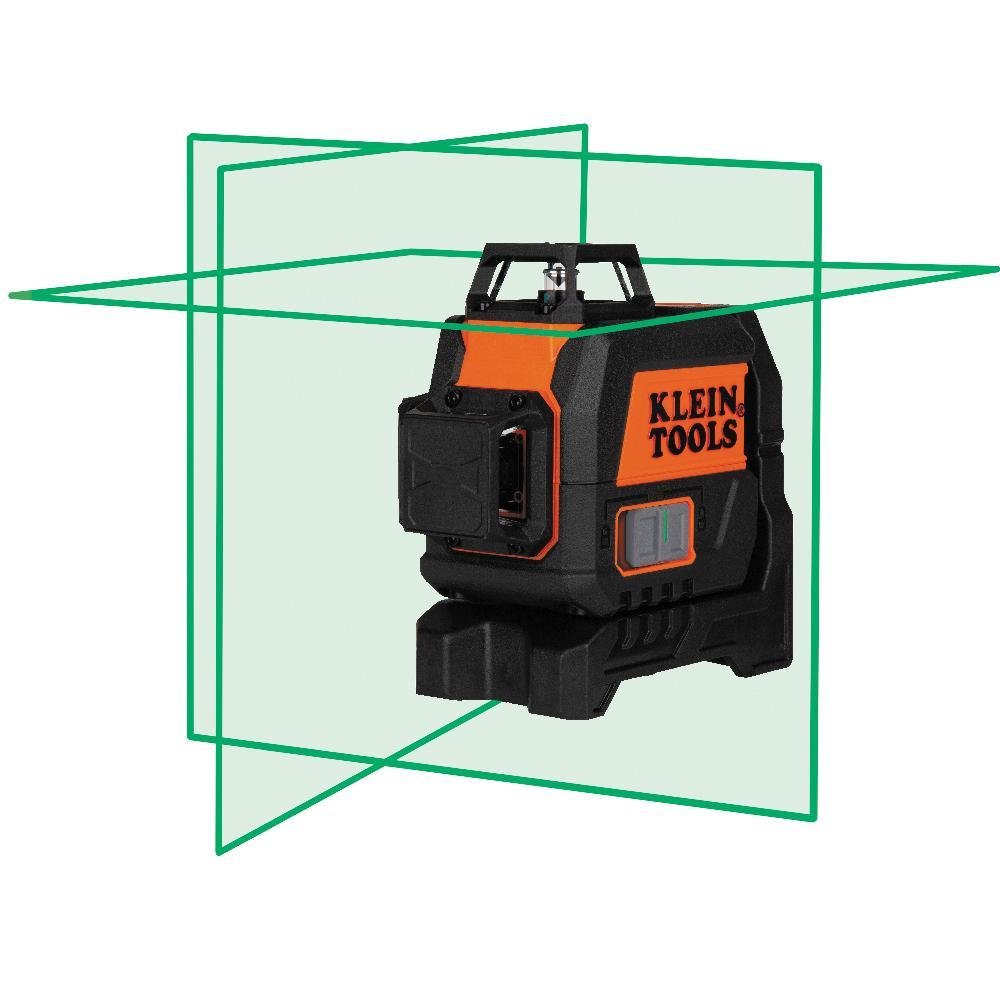

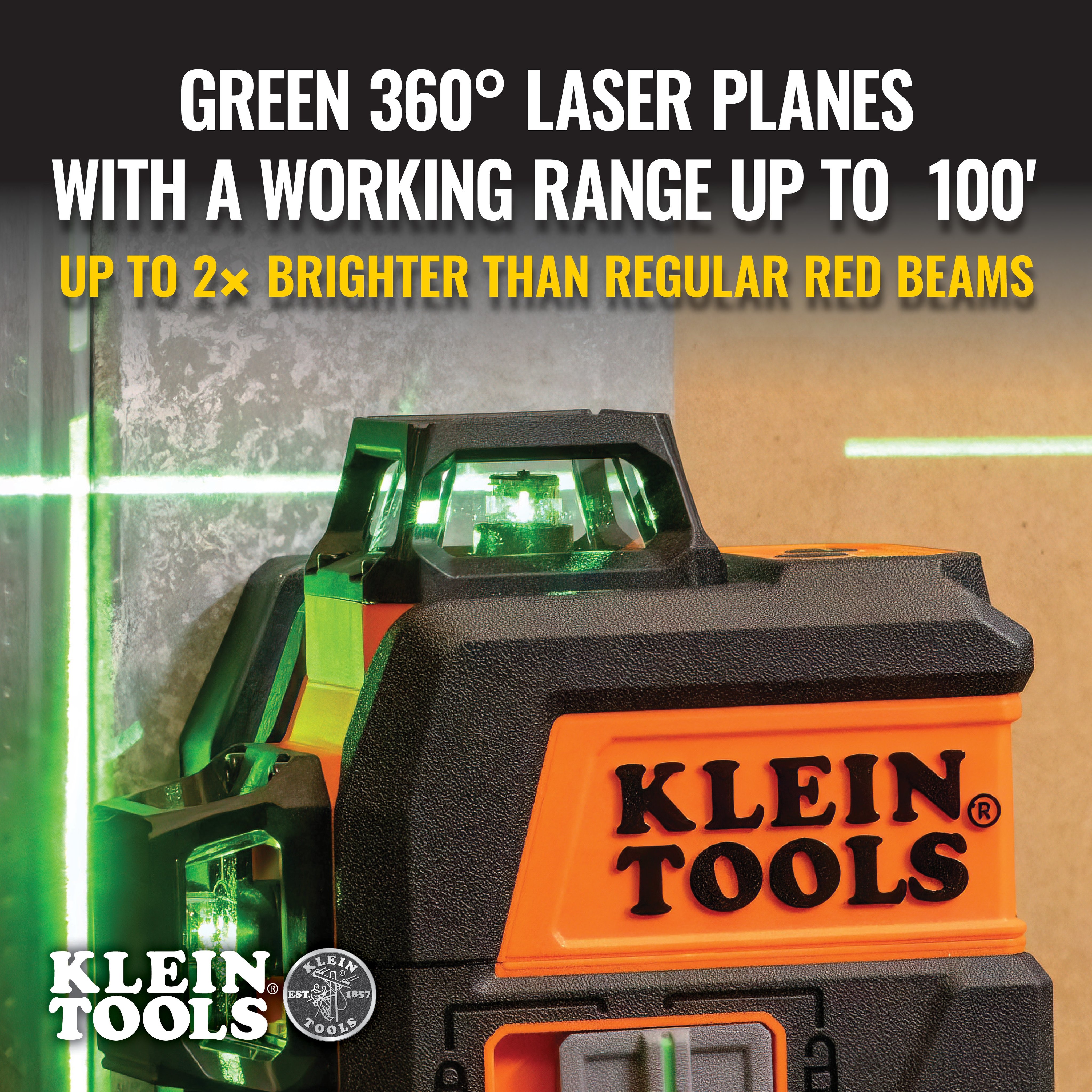

Rechargeable Self-Leveling Green Laser Level has 3 easy-to-read bright green 360 deg laser planes with a working range of 100 ft (30.5 m), up to 2 times brighter than regular red beams
Compact and lightweight design with lasers in 3 planes is easy to use in tight areas and to store when not in use
High precision laser project clean lines with accuracy of 3/16 in at 30 ft (9.1 m), auto out-of-level detection flashes lasers when no longer level

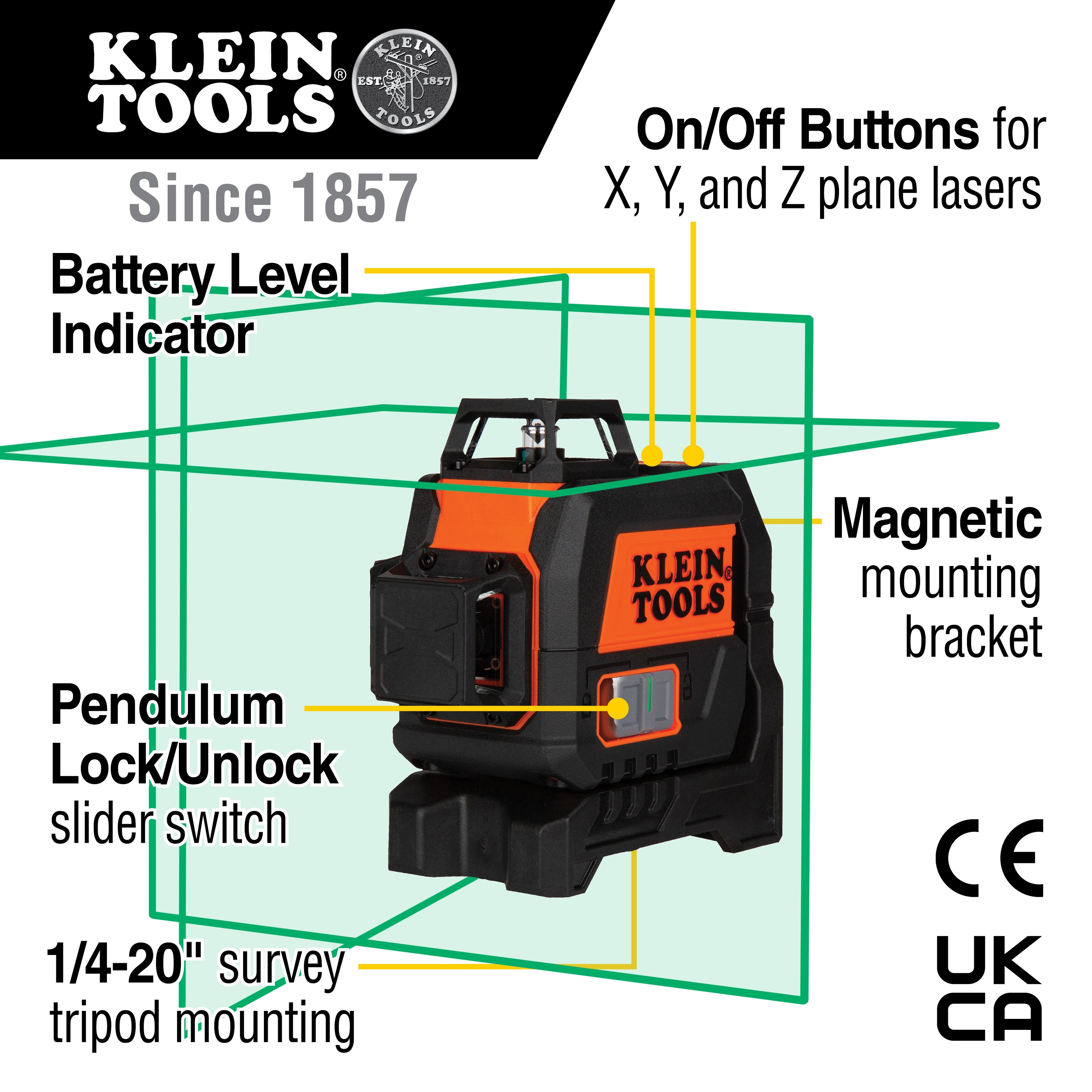

Tilt mode allows for the laser level to be turned on while the pendulum is locked for use at different angles
Magnetic mounting bracket screws into integrated 1/4 in-20 tripod mount
More than 6 hr runtime provides lasers power for all day use
93CPLG Self-Leveling Laser Level, 100 ft Measuring, +/- 3 mm per 10 m Accuracy, Li-Ion Battery, PC/ABS/TPE Housing ; Klein ; 93CPLG ; 20819927 ; 092644930133 ; Cordless Laser Level
Klein Tools
4.2500
IN
8.0000
IN
1
1.9300
LB
7.2500
IN
93CPLG ; 092644930133 ; 92644930133 ; 09264493013 ; 00092644930133
http://youtu.be/o7jx6goMw4o
Klein Tools
Accuracy
+/- 3 mm per 10 m
Temperature Rating
deg F
23 to 131
Type
Self-Leveling
Wavelength
NM
508 to 525
Bare Tool/Kit
Kit
Battery Type
Li-Ion
Beam Color
Green
Dimensions
4 in H x 3.2 in W x 4.2 in L
Housing Material
PC/ABS/TPE
Laser Class
2
Measuring Range
Ft
100
Number of Beams
3
