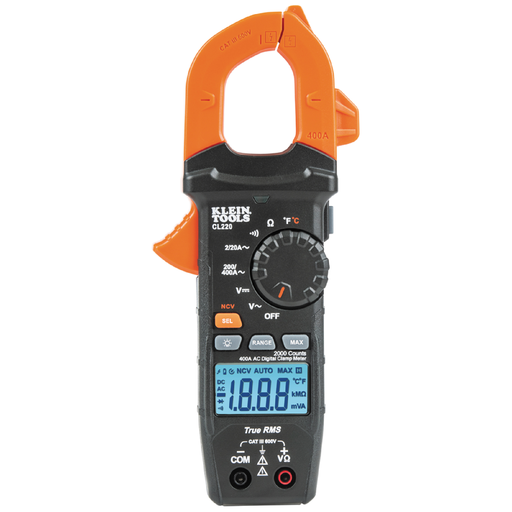

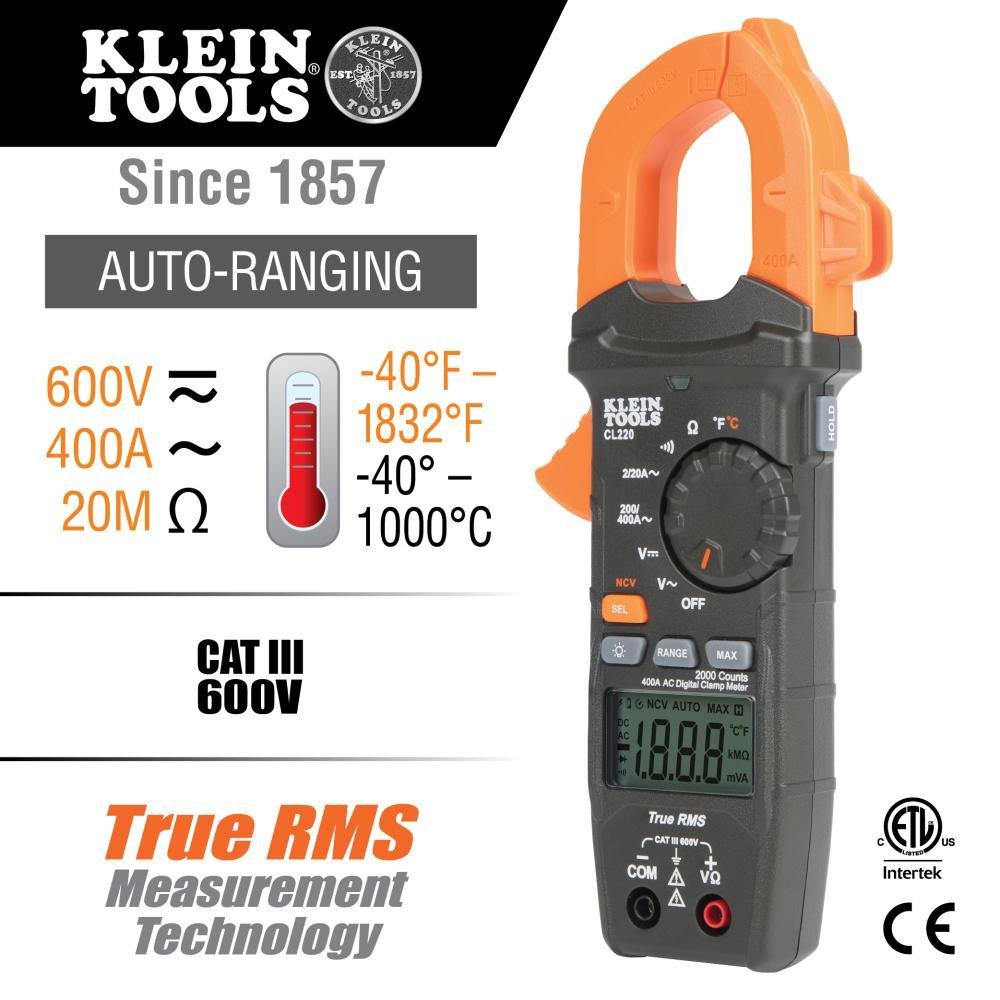

CL220 - Digital Clamp Meter, AC Auto-Ranging 400 Amp with Temp
Description
Specifications
1.27lb
3mm
5.5mm
11.3mm
8.45mm
https://spin.adhq.com/Klein%20Tools/CL220/CL220.spin
15971234
For electrical, HVAC, plumbing, aircraft applications, measures AC current and NCVT via clamp and AC/DC voltage, resistance and continuity via test leads and temperature with thermocouple
Klein®
Grainger - 61HJ66
USA
CN
SDS
Specification Sheet
Instruction/Installation Manual
Owners/User Manual
00092644692857
15971234
Carrying Case, Instructions, Test Lead, Thermocouple and (3) AAA Batteries
CLAMP METER DGTL 1.61IN BACKLIT LCD
Non-contact voltage tester integrated into the clamp jaw
Backlit LCD for ease of viewing in low light
Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
Test lead holder on side of clamp and optional magnetic hanger for meter (Catalog Numbers 69445 or 69417) for hands free operation
Auto-Range, Hold, Data Hold, and Max value
Auto-power off after 10 min to conserve battery life
Low battery indicator and easily accessible battery compartment
Built to withstand a 6.6-Foot (2 m) drop
Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
CL220 Auto-Ranging Digital Clamp Meter With Temperature Measure, 600 V AC/DC, 400 A AC, 20 Mohm, 1.61 in Jaw, Backlit LCD Display ; Klein Tools ; Klein ; CL220 ; 092644692857 ; Clamp Meters
Klein Tools
3.0000
IN
11.3000
IN
1
1.2700
LB
5.5000
IN
CL220 ; 15971234 ; 092644692857 ; 92644692857 ; 09264469285 ; 00092644692857
http://youtu.be/XJIpejZfAGg
Klein Tools
METERS & PANEL INSTRUMENTS
AC Response
A
400
Safety Rating
Category III 600 V Class 2
Type
Auto-Ranging
Counts
2000
Dimensions
8.45 in L x 1.51 in W x 3.51 in H
Display Type
Backlit LCD
Electrical Ratings
600 V AC/DC, 400 A AC, 20 Mohm
Jaw Capacity
IN
1.61
Material
ABS
Operating Temperature
deg F
-40 to 1832
Power Source
Battery
