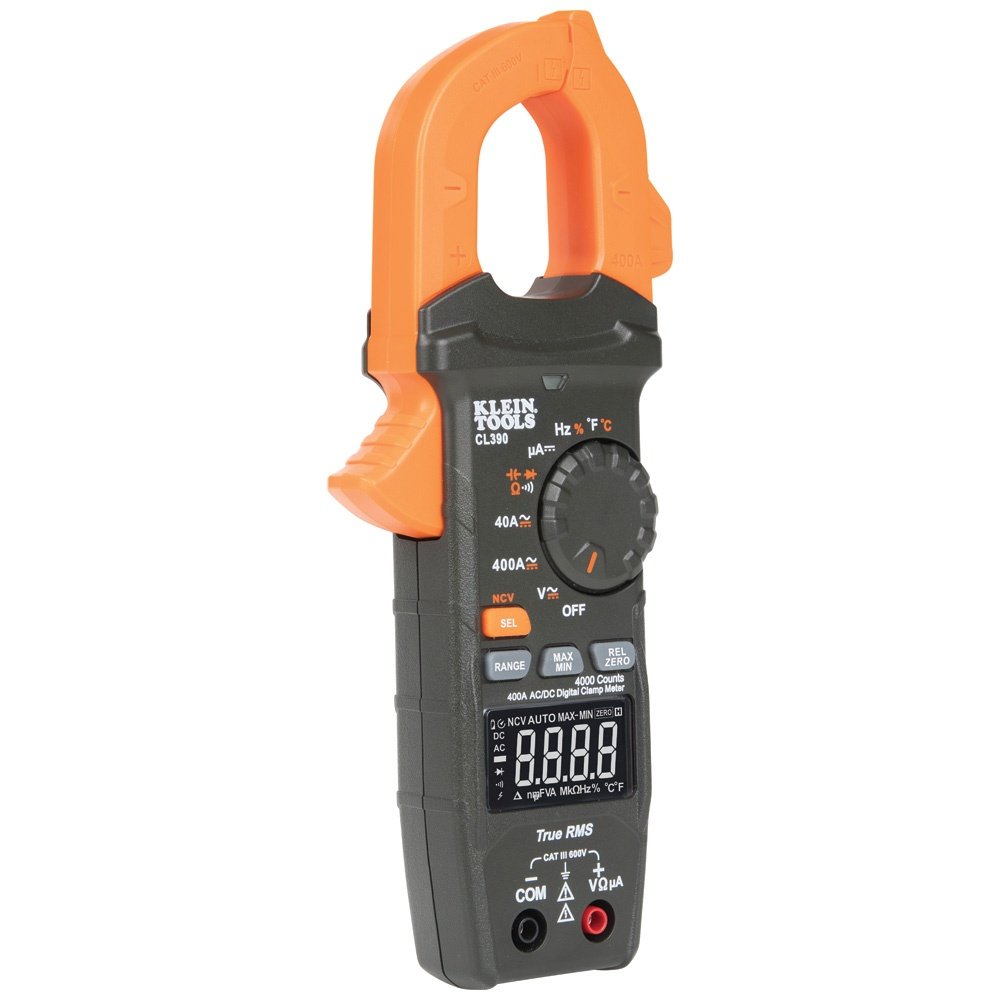

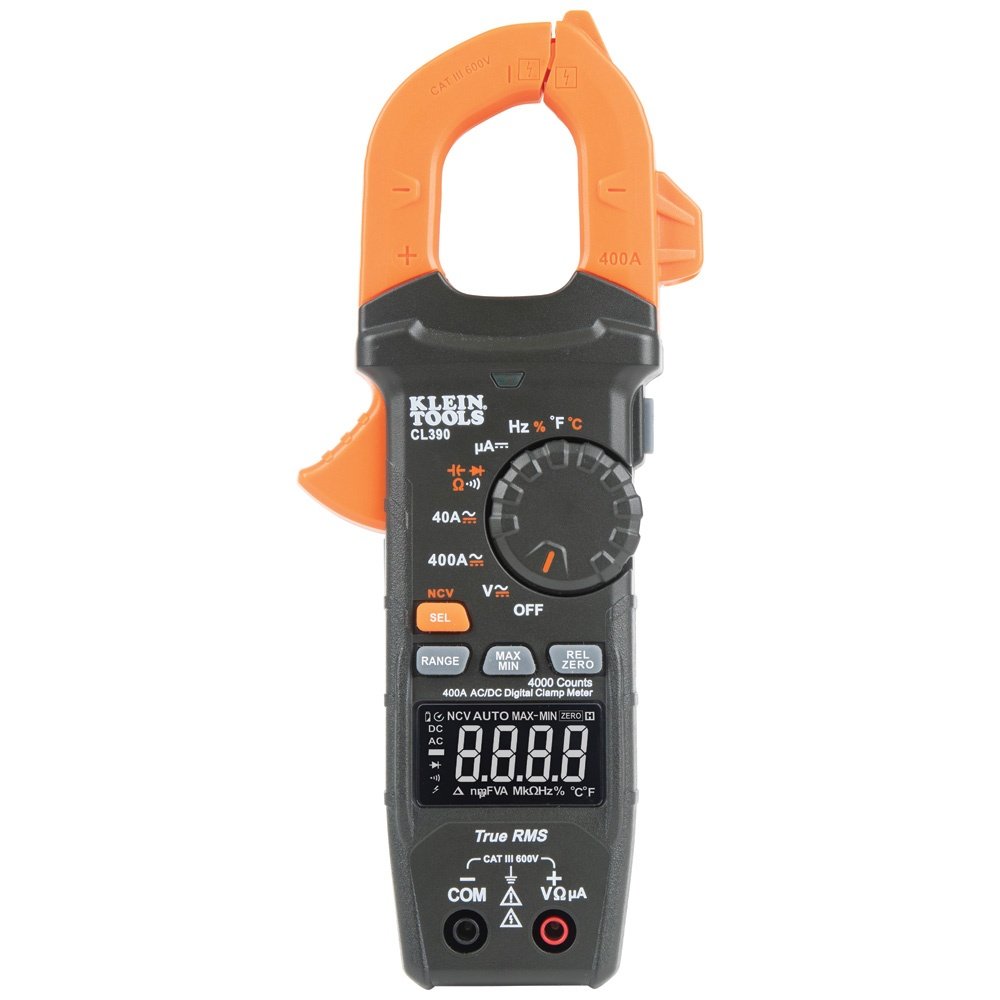

CL390 - AC/DC Digital Clamp Meter, Auto-Ranging 400 Amp
Description
Specifications
1.25lb
3mm
5.5mm
11.3mm
8.45mm
For use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
Klein
USA
CN

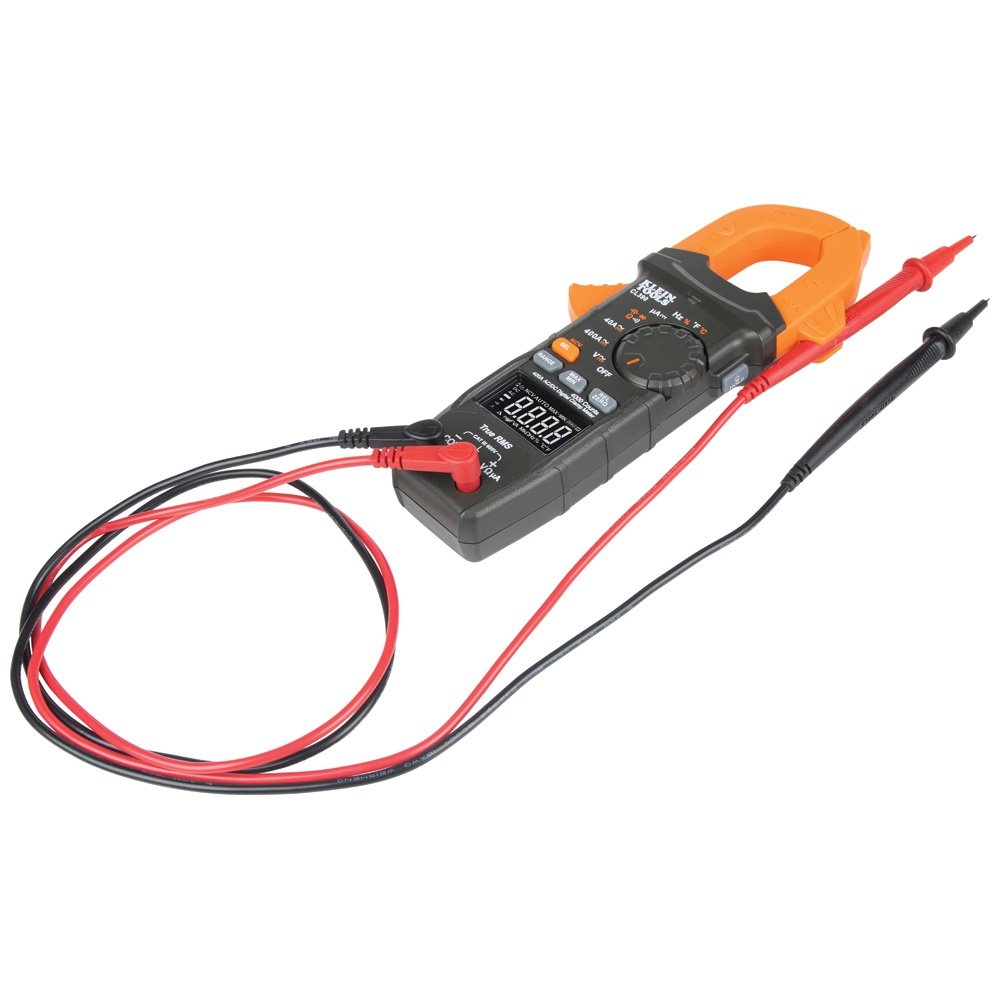

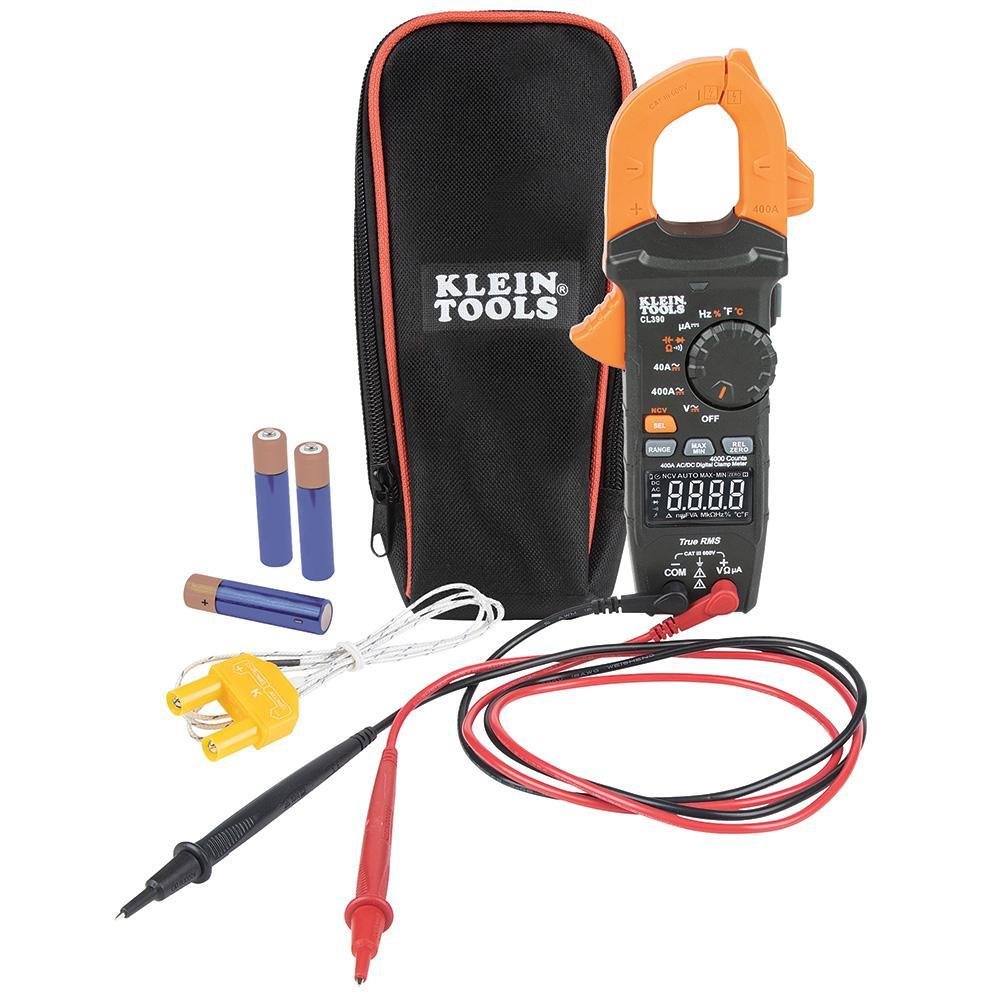

Carrying Case, Test Lead with CAT III/CAT IV Safety Cap, Thermocouple, Instructions and (3) AAA Batteries
METER CLMP DIG AC/DC 600 VAC/VDC 400 A
Test lead holder on side of clamp and optional magnetic hanger for meter (Catalog Numbers 69445 or 69417) for hands free operation
Non-contact voltage tester integrated into the clamp jaw
High-visibility reverse contrast LCD display for improved view ability in all ambient lighting conditions
Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
Measures AC/DC current and NCVT via clamp and AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, and continuity via test-leads, and temperature with thermocouple
Max/Min, Rel/Zero and Data Hold capability
Auto-power off after 10 min to conserve battery life
Low battery indicator and easily accessible battery compartment
Built to withstand a 6.6-Foot (2 m) drop
Klein Tools
3.0000
IN
11.3000
IN
1
1.2500
LB
5.5000
IN
https://youtu.be/XJIpejZfAGg
Klein Tools
METERS & PANEL INSTRUMENTS
AC Current Accuracy
+/-2 % + 9 Digits
Power Source
(3) AAA Battery
Resistance
mOhm
40
Safety Rating
CATIII 600 V, Class 2, Double Insulation
Type
Auto-Ranging
Voltage Accuracy
+/-1.5 % + 5 Digits at V AC, +/-1 % + 3 Digits at V DC
Counts
4000
Dimensions
8.45 in L x 3.51 in W x 1.51 in H
Display Type
Reverse Contrast LCD
Electrical Ratings
600 V AC/DC, 400 A, 4000 uF, 200 uA
Frequency Rating
10 Hz to 60 kHz
Jaw Capacity
IN
1.61
Material
ABS
Operating Temperature
deg F
-40 to 1832
