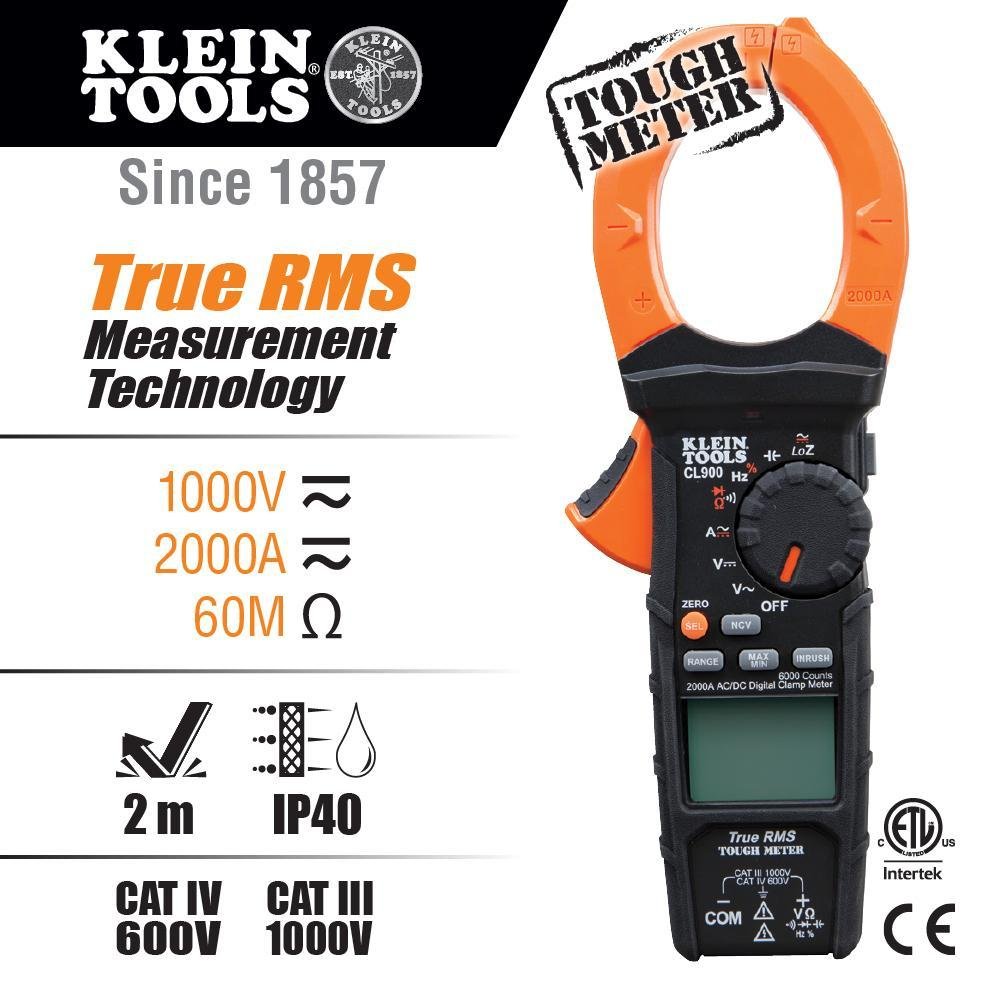

CL900 - Digital Clamp Meter, AC Auto-Range TRMS, Low Impedance (LoZ), 2000 Amp
Description
Specifications
1.83lb
3.25mm
5.3mm
13.75mm
10.43mm
Measures Upto 2000 A AC/DC Current
Klein
USA
CN
(1) Carrying Case, (1) Instruction Manual, (1) Straight Input Test Leads, (2) Batteries
METER CLAMP 60MOHM 500KHZ 2IN LCD 6000
Non-contact voltage tester integrated into the clamp jaw
Backlit LCD for ease of viewing in low light
Auto ranging measurements
Test lead holder on side of clamp and optional magnetic hanger for meter (Catalog Numbers 69445 or 69417) for hands-free operation
Durable, multifunction meter
Auto-Range, Hold, Data Hold, and Max value
Auto-power off after 10 min to conserve battery life
Low battery indicator and easily accessible battery compartment
Built to withstand a 6.6-Foot (2 m) drop
Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
Klein Tools
3.2500
IN
13.7500
IN
1
1.8300
LB
5.3000
IN
http://youtu.be/uJwizMqC_UQ
Klein Tools
METERS & PANEL INSTRUMENTS
Counts
6000
Safety Rating
CAT IV 600 V AC/CAT III 1000 V AC
Type
Digital
Dimensions
10-25/64 in L x 3.9 in W x 1-45/64 in H
Display Type
LCD
Electrical Ratings
1000 V AC/DC, 2000 A, 6000 uF
Frequency Rating
kHz
500
Jaw Capacity
IN
2
Material
Plastic
Power Source
AAA battery
Resistance
mOhm
60
