ET600 - Insulation Resistance Tester
Description
Specifications
2.34lb
4.5mm
6.5mm
12.5mm
7.94mm
For installation, troubleshooting, preventive maintenance of electrical wiring and electrical equipment, measures 1000 VAC/VDC, resistance and continuity
Klein
USA
CN

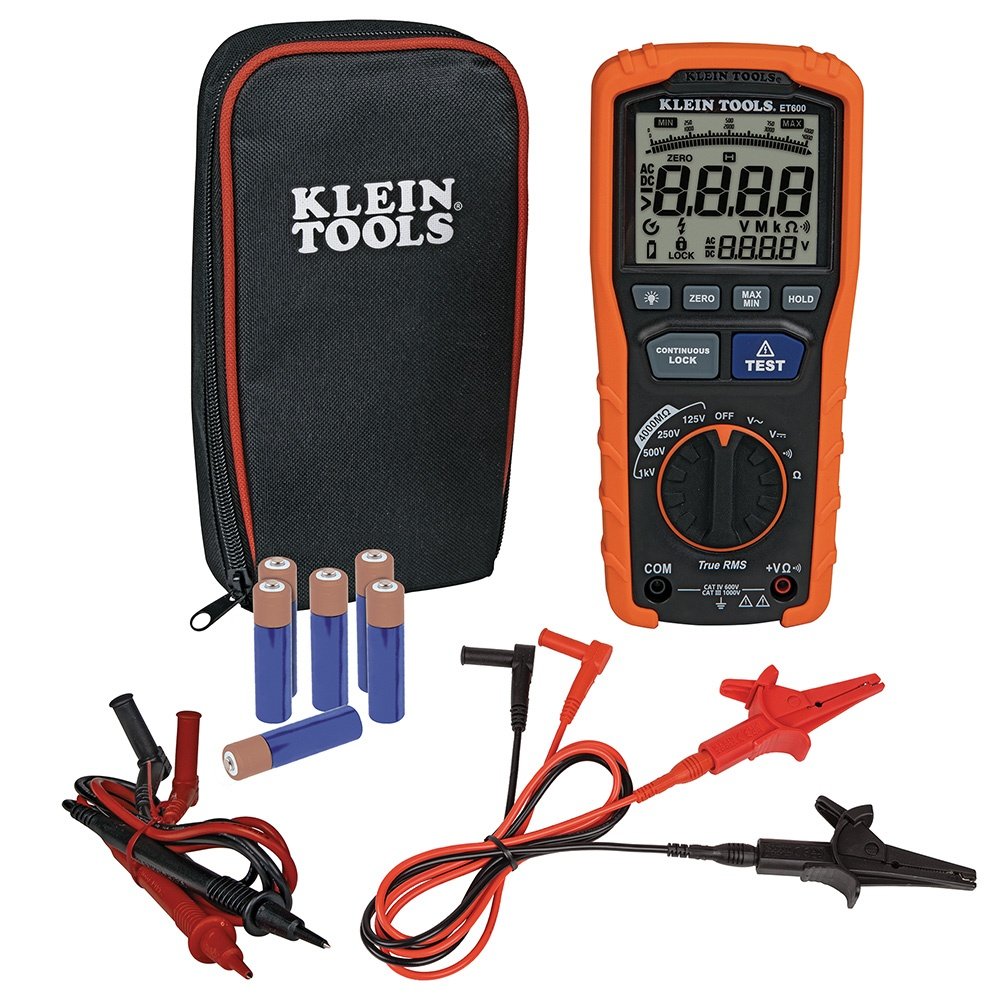

Right Angle Test Lead, CAT III/CAT IV Safety Rated Test Lead, Heavy Duty Alligator Clip Test Leads, (6) AA Batteries, Carrying Case and Instruction Manual
TESTER R INSULATION 1000VAC/VDC
Megohmmeter with test and lock buttons for simple insulation testing
Warning alarm and high voltage icon for detection of voltage
Automatic ranging True Root Mean Square (TRMS) technology for increased accuracy
Backlit display with bar graph, Auto-power off, High Voltage, Max/Min, and Hold icons
Low battery indicator with easily replaceable battery and fuse

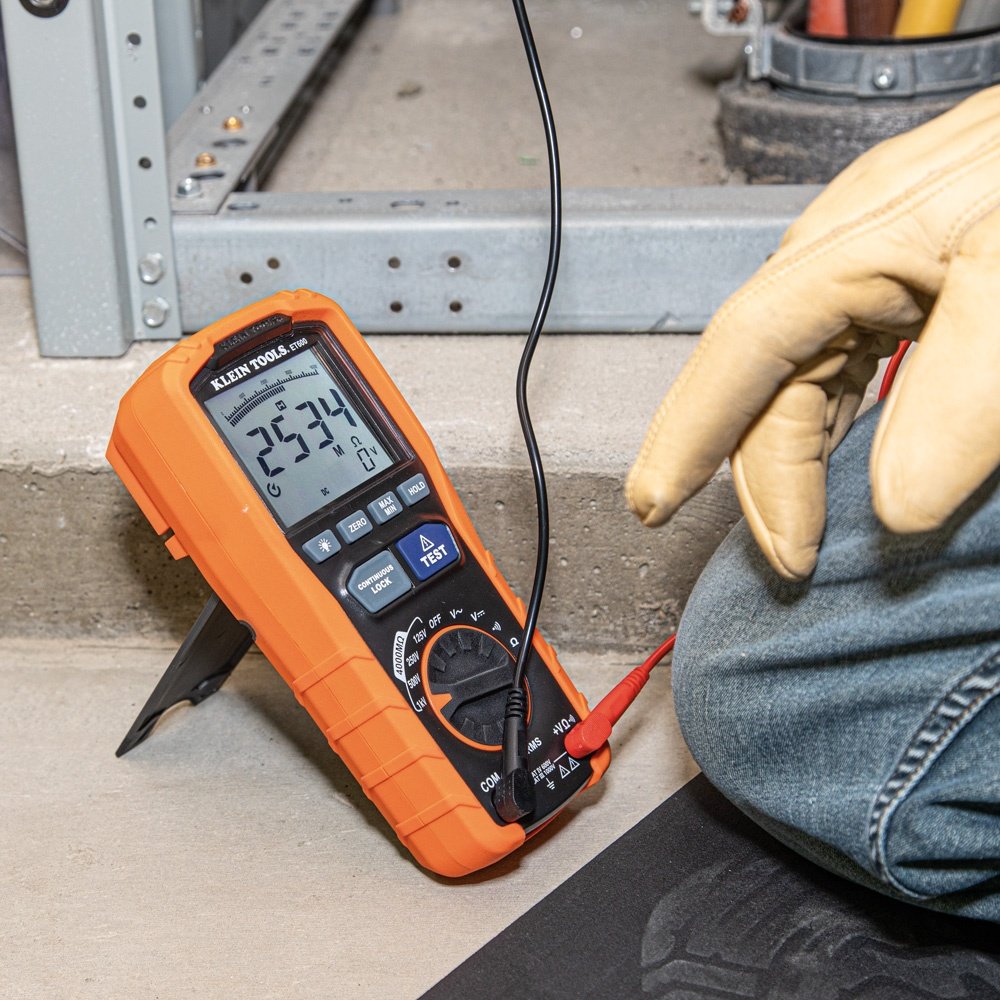

Built-in stand and optional magnetic hanger for hands free operation
Klein Tools
4.5000
IN
12.5000
IN
1
2.3400
LB
6.5000
IN
http://youtu.be/5gNCaD5SSG8
Klein Tools
Multimeters
Amperage Rating
1 mA at 1 MOhm
Safety Rating
CAT IV 600 V/CAT III 1000 V
Type
Digital
Voltage Rating
V AC/DC
1000
Auto Power Off
Yes
Auto Ranging
Yes
Dimensions
7.93 in L x 3.59 in W x 2.32 in D
Display Type
4000 count LCD
Enclosure Type
IP40
Interface
Button/Switch
Power Source
(2) AA Alkaline Batteries
Resistance Range
4000 MOhm at 125/250/500/1000 VDC
