MM320KIT - Digital Multimeter Electrical Test Kit
Description
Specifications
1.6lb
3.25mm
8mm
12.75mm
12.4mm
Measures up to 600V AC/DC Voltage, 10A DC Current and 2MO Resistance, Tests Batteries, Diodes and Continuity Applications
Klein
USA
CN

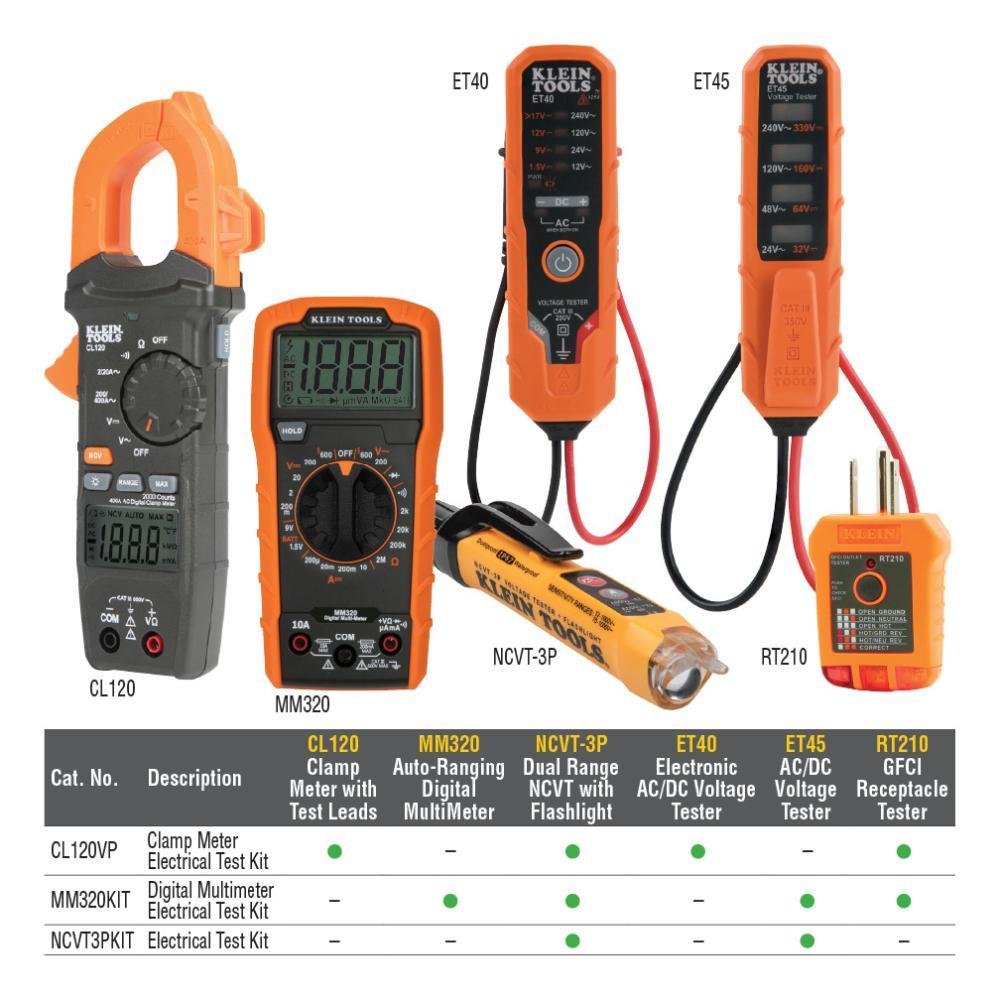

MM320 Manual Ranging Digital Multimeter, NCVT-3P Dual Range Non-Contact Voltage Tester with Flashlight, ET45 AC/DC Voltage Tester, RT210 GFCI Receptacle Tester, Carrying Case, Instructions, Manuals, Pouch and (2) AAA Batteries
ELECTRICAL TEST KIT ABS 600 VAC/VDC 10 A
Bright flashlight illuminates work area and may be used independent of NCVT-3P voltage detection function
Built-in test lead holder on back of ET45 tester holds the leads in one of two positions - one so that they are spaced correctly to test tamper-resistant US-style outlets and the other for convenient storage of the test leads
RT210 detects the most common wiring problems in standard and GFCI receptacles including open ground, reverse polarity, open hot, open neutral and hot/ground reversed
Receptacle tester works on GFCI outlets and confirms operation of the ground fault protective device
Voltage Tester NCVT-3P has dual-range capabilities to detect from 12 to 1000 V AC or 70 to 1000V AC for a broad variety of low-voltage or standard voltage applications

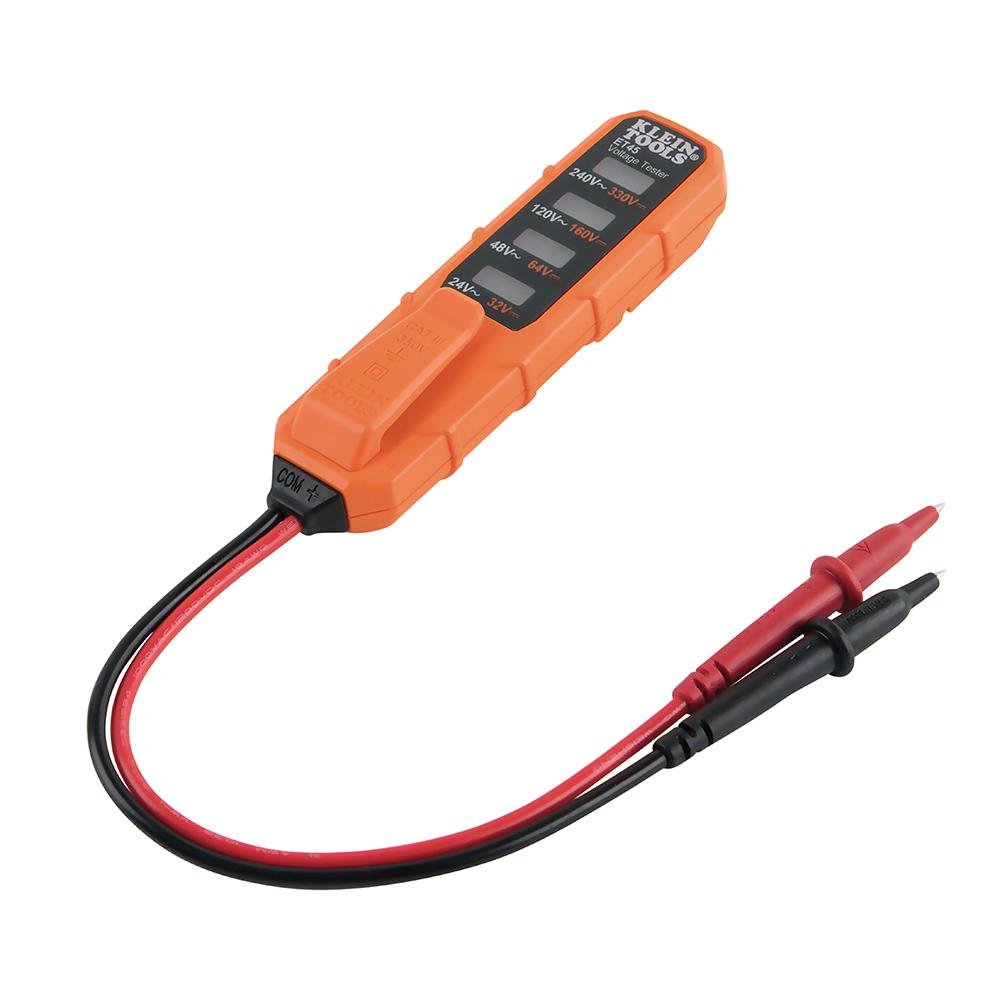

ET45 tests AC voltages from 28V to 240V AC at four useful levels aligned with commonly used residential voltages, and DC voltages from 32V to 330V at four common levels
Klein Tools
3.2500
IN
12.7500
IN
1
1.6000
LB
8.0000
IN
http://youtu.be/BDp_HddaRz8
Klein Tools
METER SOCKET & METERING ACCESSORIES
Dimensions
6.39 in L x 3.12 in W x 1.8 in H
Material
ABS
Specifications
600 V AC/DC, 10 A, 2000 Count LCD
