RT310 - AFCI /GFCI Outlet Tester
Description
Specifications
0.7lb
2.75mm
5.5mm
11mm
18.53mm

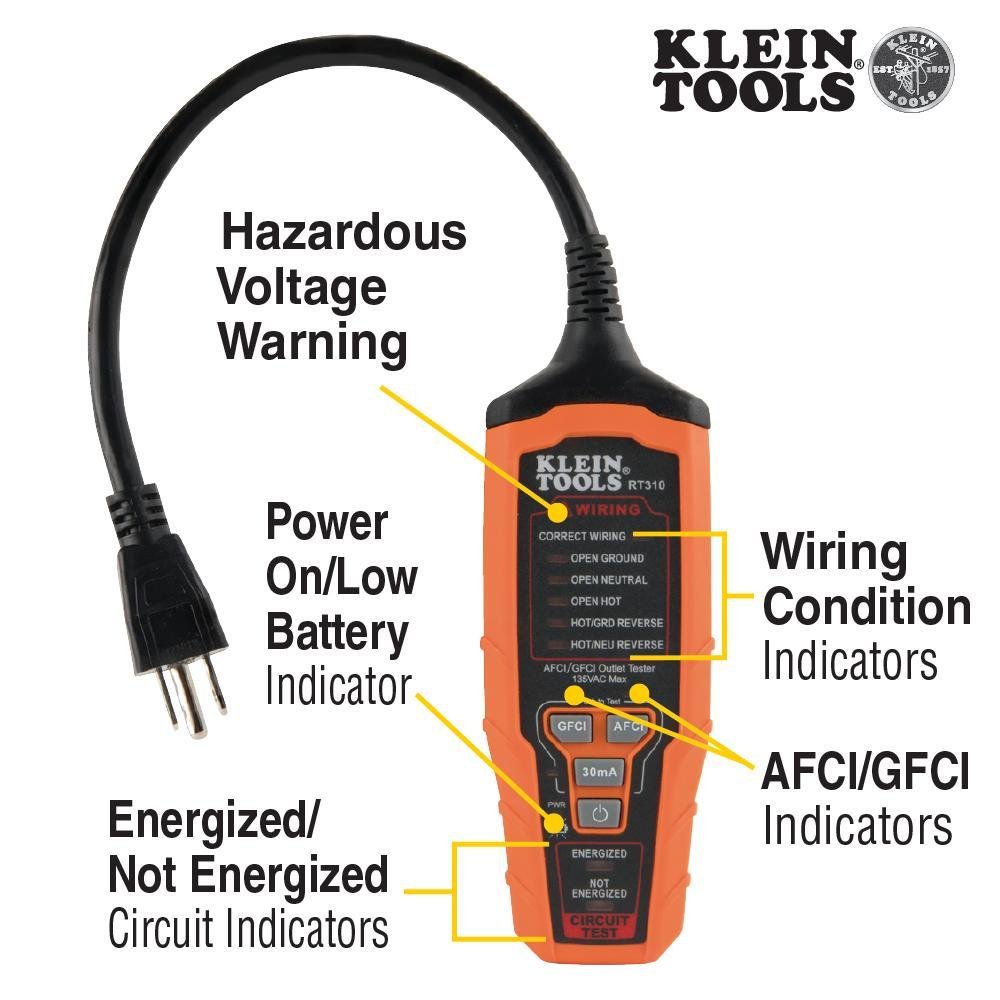

RT310 is an electrical outlet tester that tests for wiring faults in electrical outlets, and Tests AFCI and GFCI Devices
Klein
USA
CN
(3) 1.5 VDC AAA Alkaline Batteries
TESTER OUT AFCI/GFCI 120VAC CAT III 135V

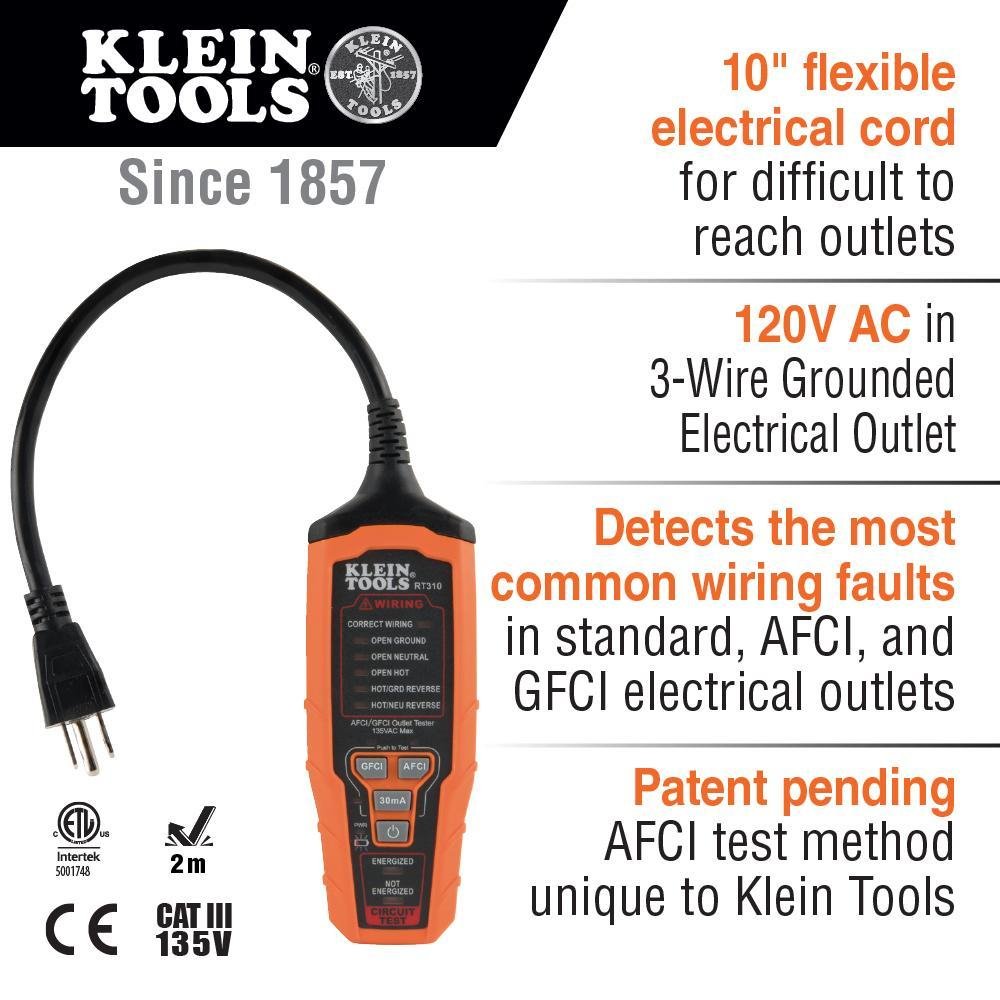

Electrical plug is on a 10 in (254 mm) flexible electrical cord to access electrical outlets in difficult to reach locations
Powers off automatically after approximately 2 min of non-use to conserve battery life
Built to withstand a 6.6 ft (2 m) drop
Measurement category III is applicable to test and measuring circuits connected to the distribution part of the building's low-voltage MAINS installation
The RT310 features a patent pending AFCI test method that is unique to Klein Tools
Test GFCI devices by simulating ground fault conditions
Capable of detecting a dual-open wiring fault with simultaneous open neutral and open ground wires (patent pending technology)
Designed to test North American-style grounded electrical outlets in 120V AC circuits (incorporates a three-pin plug)
Klein Tools
2.7500
IN
11.0000
IN
1
0.7000
LB
5.5000
IN
http://youtu.be/uJwizMqC_UQ
Klein Tools
FAULT FINDERS & ACCESSORIES
Dimensions
7.4 in L x 2.3 in W x 1.3 in H
Indicator
Visual
Safety Rating
CAT III 135V
Voltage Rating
V AC
120
