Littelfuse

0235003P - Fast Acting Cartridge Fuse

Category Small Dimension Fuses

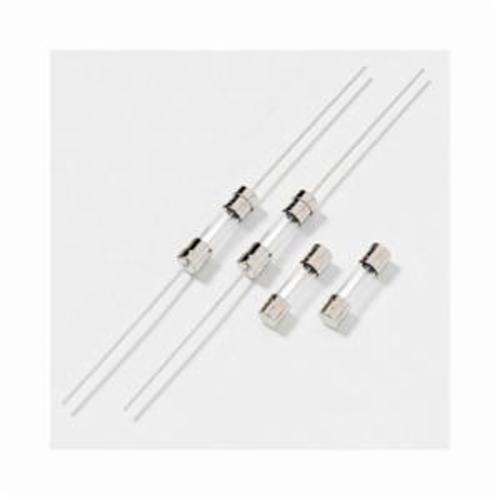

Picture of 0235003P - Fast Acting Cartridge Fuse Picture of 0235003P - Fast Acting Cartridge Fuse
Picture of 0235003P - Fast Acting Cartridge Fuse Picture of 0235003P - Fast Acting Cartridge Fuse
Littelfuse

0235003P - Fast Acting Cartridge Fuse

Item Code: 931800
Category Small Dimension Fuses
Manufacturer Littelfuse
Manufacturer Ref 235003P

Document
Document
Call for Availability
Add to Favorites
Compare

Description

Fast Acting Cartridge Fuse; Type Miniature Glass Cartridge; Characteristics Fast Acting; Voltage Rating 250 VAC; Current Rating 3 Ampere; Interrupting Rating 100 Ampere at 250 VAC, 10000 Ampere at 125 VAC; Diameter 5.2 MM; Length 20 MM; Approval UL, CSA, CE, IC, PSE; Lead Free; Cap Material Nickel-Plated Brass; Lead Material Tin-Plated Copper; Maximum Operating Temperature Rating 125 Deg C; Application Used as Supplementary Protection in Appliance or Utilization Equipment to Provide individual Protection for Components or Internal Circuits

Specifications

Length

20mm

AD Application

General purpose applications

AD Brand (Description)

Littelfuse

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

FUSE CRTG 3A 250VAC 10KA RK5 CYL FERRULE

AD Item Features 01

Used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits

AD Item Features 02

0.03465 ohms resistance

AD Item Features 03

8.395 I2T (A2 sec) nominal melting

AD Item Features 04

-55 to 125 deg c operating temperature

AD Item Features 05

Lead Free

AD Item Features 06

Nickel-plated brass cap, tin plated copper leads

AD Item Features 07

4 hrs minimum at 100%, 1 hr maximum at 135%, 5 sec at 200% opening time

AD Item Features 08

10 kA at 125 VAC interrupting rating

AD Manufacturer (Description)

Littelfuse

AD Package Quantity

1

Brand

Littelfuse

Category

Small Dimension Fuses

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

3

Spec 10 Attribute

Terminal Type

Spec 10 Attribute Value

Ferrule

Spec 11 Attribute

Type

Spec 11 Attribute Value

Fast Acting

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

250

Spec 2 Attribute

Body Size

Spec 2 Attribute Value

5 mm Dia x 20 mm L

Spec 3 Attribute

Body Type

Spec 3 Attribute Value

Cartridge

Spec 4 Attribute

Class

Spec 4 Attribute Value

RK5

Spec 5 Attribute

Interrupt Rating

Spec 5 Attribute UOM

KA

Spec 5 Attribute Value

10

Spec 6 Attribute

Material

Spec 6 Attribute Value

Glass

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Holder

Spec 8 Attribute

Response Time

Spec 8 Attribute Value

4 hr, 1 hr, 5 s

Spec 9 Attribute

Series

Spec 9 Attribute Value

235
