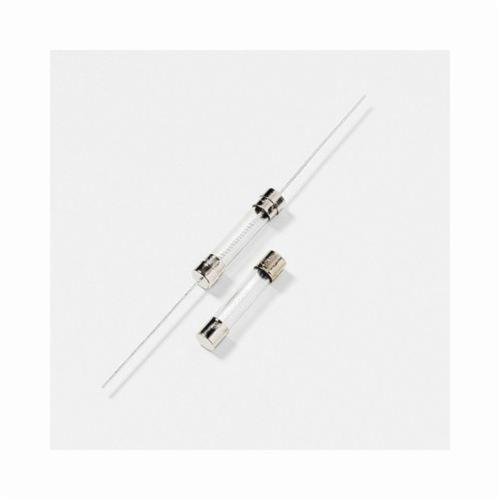

H313002P - 2A 250V, Time Delay Fuse
Description
Specifications
For supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits
Littelfuse
USA
MX
FUSE CRTG 2A 250VAC 10KA CRTG FERRULE GL
313 and 315 series fuses have time-delayed in the overload range, which provides superior protection inductive loads such as motors, transformers, and solenoids
3AG indicating fuses instantly identify themselves upon opening by showing a discoloration of their glass bodies
Guesswork and time consuming circuit testing is eliminated
Unique design offers the same quality performance characteristics as the standard 3AG fuse design
Lead-free
Nickel plated brass cap
-55 to 125 deg c operating temperature
10 kA at 125 VAC interrupting rating
4 hrs minimum at 100%, 1 hr maximum at 135% and 5 to 30 sec maximum at 200% opening time
HX marking code
Littelfuse
1
Littelfuse
Small Dimension Fuses
Amperage Rating
A
2
Terminal Type
Ferrule
Type
Time Delay
Voltage Rating
V AC
250
Body Size

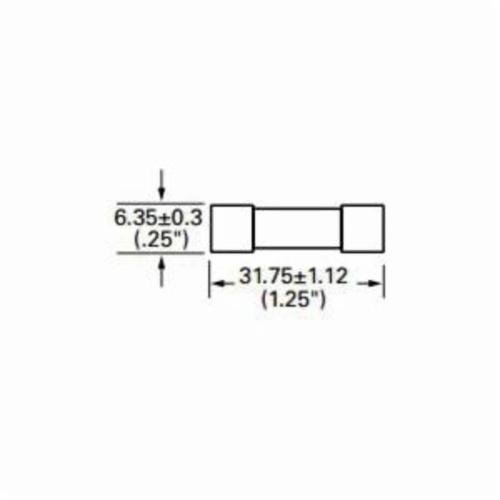

1/4 in Dia x 1-1/4 in L
Body Type
Cartridge
Indicating/Non-Indicating
Non-indicating
Interrupt Rating
KA
10
Material
Glass
Mounting Type
Holder
Response Time
4 hr, 1 hr, 5 to 30 s
Series
313
